Introduction:
The multiple RJ45 sockets serve as a high-density 1×4 ganged modular interface designed for integrated Ethernet systems. Four side-by-side 8P8C ports facilitate multiple link connections within a compact right angle footprint. Reliable electromagnetic interference protection comes from a robust nickel plated brass shield enclosing the black PBT insulator. Successful operation is sustained throughout the industrial -40C to +85C temperature range for severe environments. Low contact resistance stays strictly below 20 miliohms due to the gold flash over nickel phosphor bronze contacts. Every port supports a 1.5A maximum current and 125VAC voltage to meet diverse networking demands. Communication switches, industrial servers, and automated control units frequently utilize these reliable sockets.
Key Features
- Ganged 1×4 configuration: Connects four network devices using one module efficiently.
- Full brass shielding: Blocks severe electromagnetic interference for clear signals.
- Industrial temperature range: Operates reliably from -40C up to +85C.
- Durable PBT housing: Ensures mechanical stability during THT termination.
- Low resistance contacts: Gold flash plating ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88GX1-FSD | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 125VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

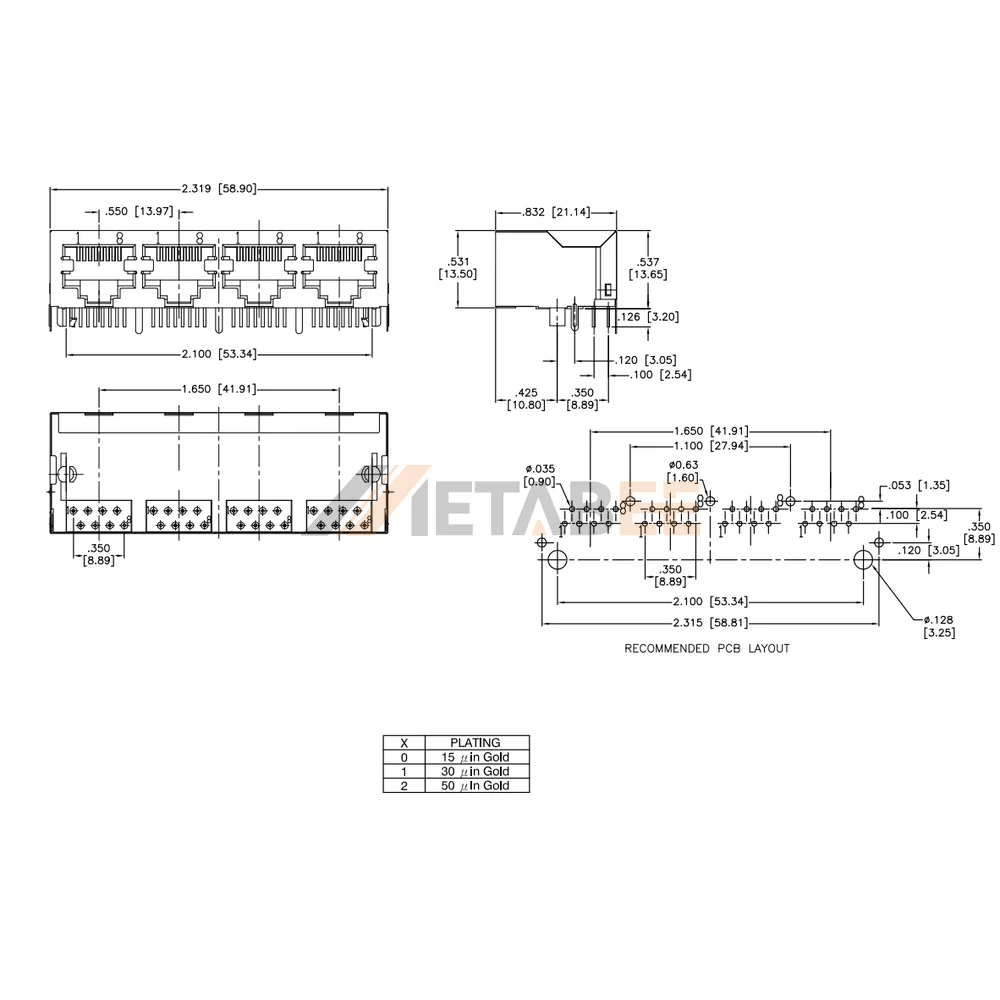

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
