Introduction:
The Magjacks is a shielded 1×4 multi-port network interface designed for industrial Ethernet applications. Reliable 10/100 Base-T data transmission remains consistent across a wide -40°C ~ +85°C temperature range. A robust nickel-plated copper alloy shield encloses the black nylon 46 insulator to block electromagnetic interference effectively. Precise component positioning on the PCB relies on the integrated board guide feature. Visual link status is tracked through built-in yellow and green LED indicators positioned in the tab-up profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 30 miliohms in these magjacks. Secure mechanical termination uses a right-angle through hole configuration.
Key Features
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- Industrial Temperature Range: Operates reliably across extreme -40°C ~ +85°C environments.
- 1×4 Multi-port Profile: Connects four network devices using one module.
- Full Metal Shielding: Blocks severe electromagnetic interference for clear signals.
- Integrated Board Guide: Ensures precise mechanical alignment on PCB.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88TUX1-FSD-PG-VLG-M5D | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Nylon 46 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

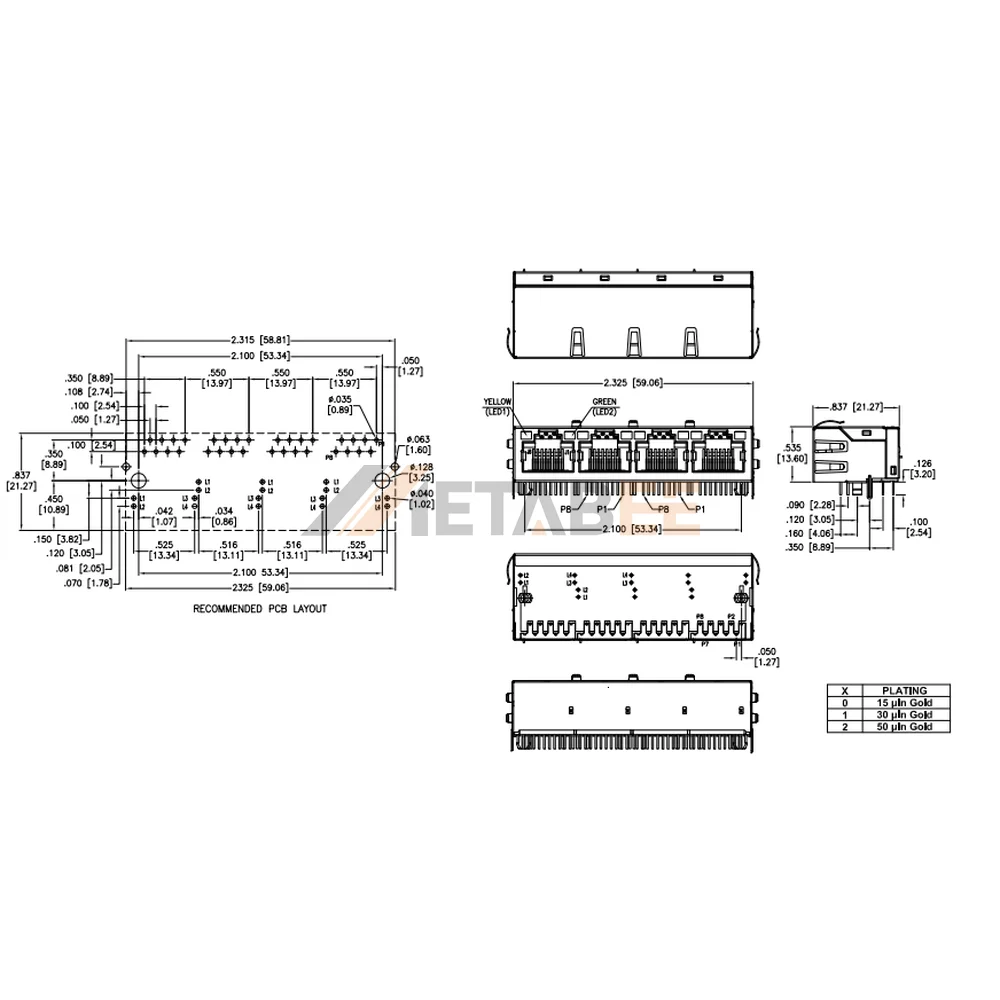

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
