Introduction:

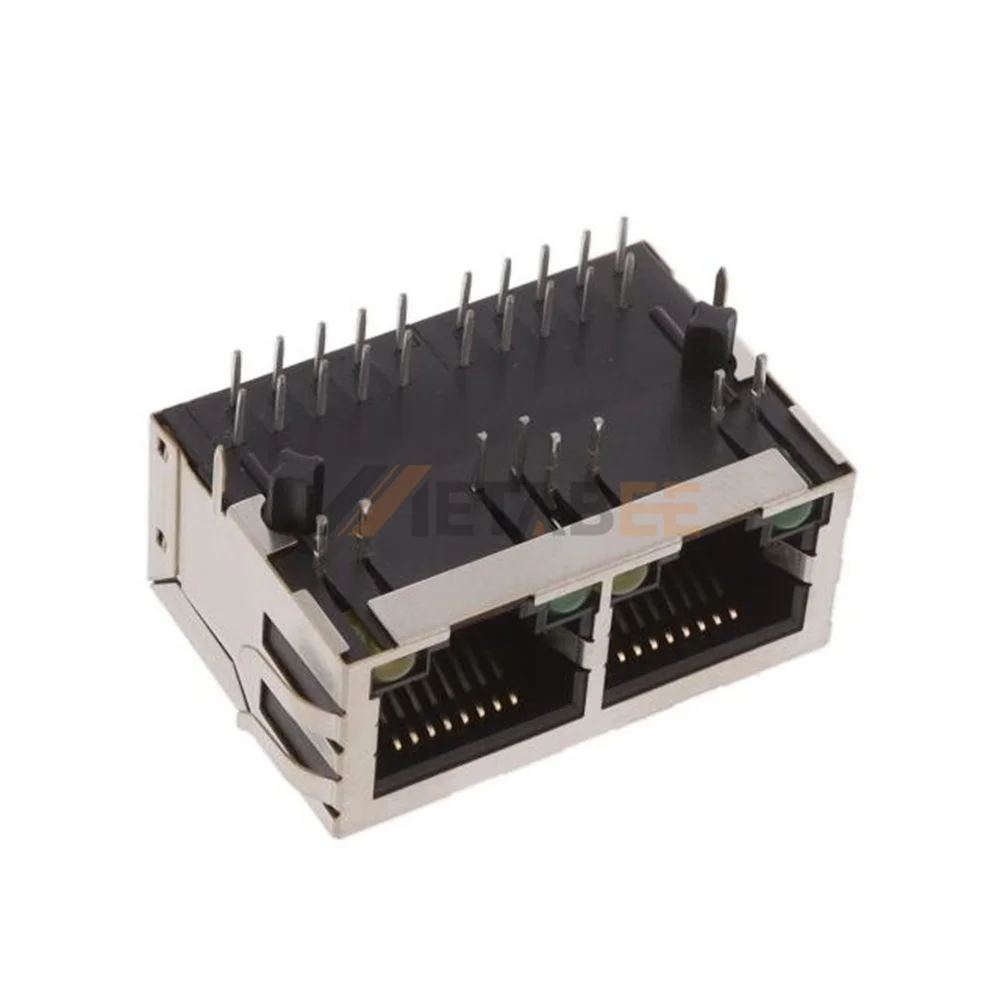

Gigabit network efficiency relies on the RJ45 jack LAN transformer, which supports high-speed 1G Base-T data transmission across two separate ports. Stable operation remains consistent within the 0C to 70C temperature range for standard commercial applications. A robust nickel-plated brass shield encloses the black thermoplastic housing to reject electromagnetic interference effectively. Precise component positioning on the PCB depends on integrated board guides and solder retention features. Visual status updates rely on built-in green and yellow LED indicators positioned in the tab-down profile. Gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 milliohms in this RJ45 jack LAN transformer. Secure mechanical termination uses a right-angle THT solder configuration.
Key Features
- 1G Base-T Speed: Delivers reliable Gigabit Ethernet data transmission flawlessly.
- 1×2 Dual-port Profile: Connects two network devices using a single module.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Stable THT Mounting: Board guide and solder retention ensure PCB alignment.
- Integrated Status LEDs: Green and yellow lights display network activity clearly.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
