Introduction:
The dual rj45 connector pcb is a ganged 1×2 modular interface developed for high-density Ethernet network layouts. Reliable data connectivity is maintained across an industrial temperature range from -40C up to +105C. Standard 8P8C ports utilize an unshielded DIP design to optimize board space in cost-effective systems. Mechanical stability during through hole mounting depends on the black PBT insulator and right angle profile. Furthermore, gold over nickel plating on phosphor bronze contacts ensures electrical resistance stays below 20 miliohms. Visual indicators are excluded for this streamlined no LED configuration. Industrial computers, network routers, and automated controllers frequently incorporate these versatile sockets.
Key Features
- Ganged 1×2 Configuration: Facilitates two side-by-side network ports efficiently.
- Industrial Temperature Range: Operates reliably between -40C and +105C.
- Unshielded 8P8C Design: Optimizes board space for cost-effective hubs.
- Durable PBT Housing: Ensures high mechanical stability for PCB.
- Low Contact Resistance: Gold plating maintains strictly under 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-X-882CX1 | |
| Series: | MTJG | |
| Category: | Multi Port RJ45 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Interface Type: | Ganged | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Rated Current: | 1.5 Amp | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +105°C | |
| Flammability Rating: | UL 94 V-0 |

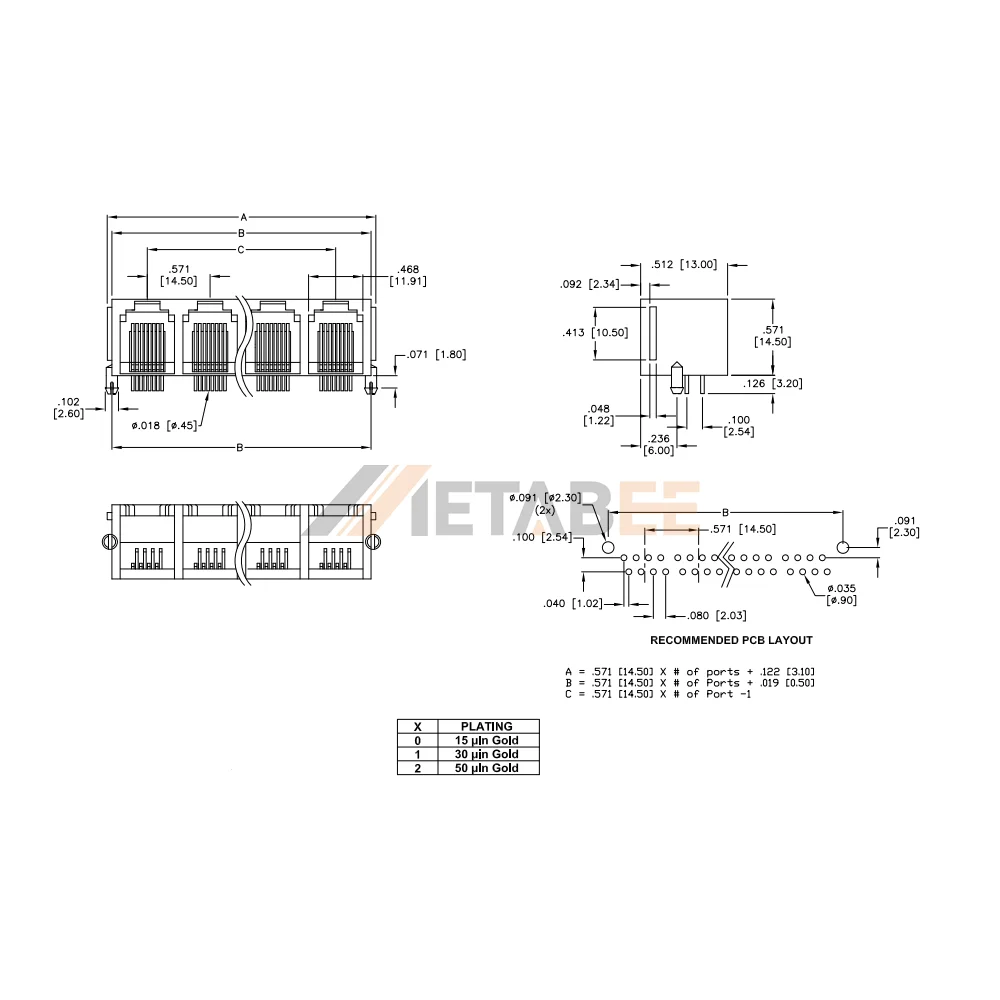

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
