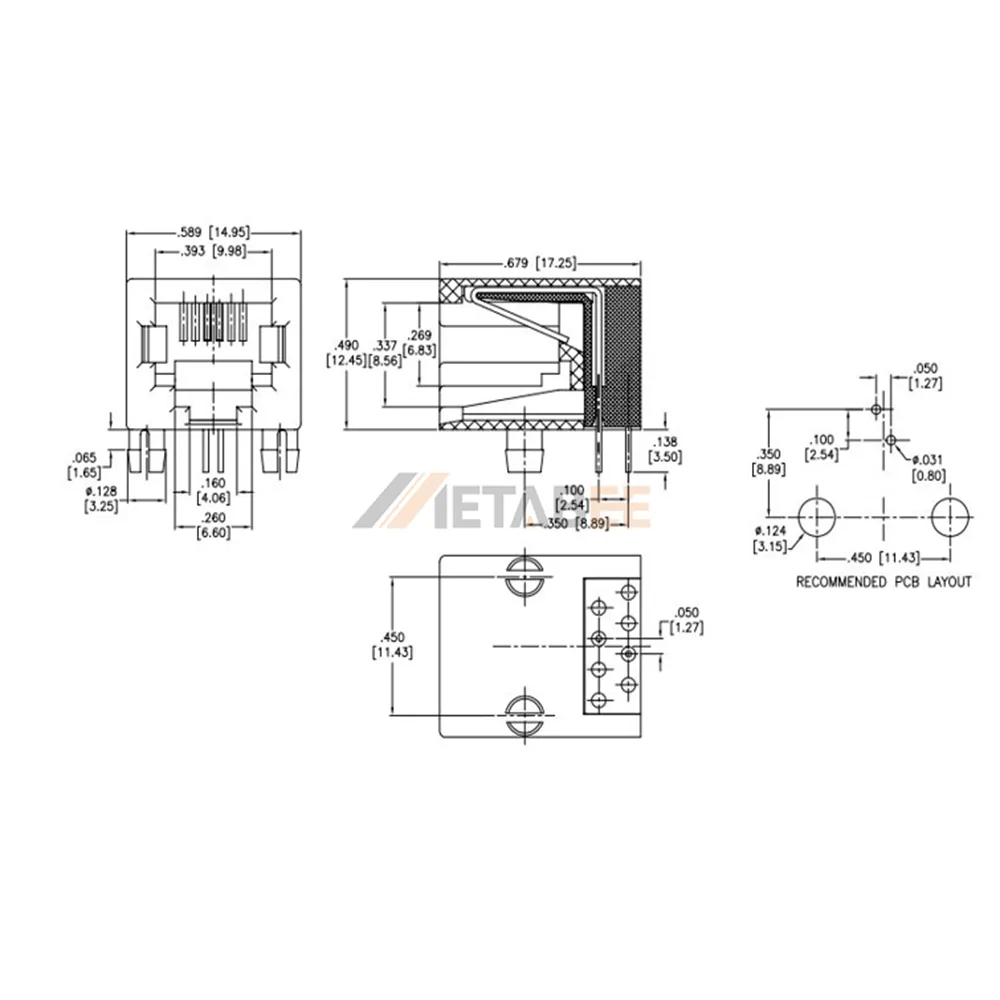

1×1 Port RJ11 Female Jack 6P2C Socket, Unshielded, Through Hole, R/A, Tab-Down, No LED
Introduction:
This is a single port RJ11 female jack 6P2C socket designed for stable right angle through hole attachment to printed circuit boards. It features a durable black PBT housing that provides reliable thermal stability and maintains a superior insulation resistance of 1000 mohms. The Phosphor Bronze contacts include a premium Gold finish to ensure superior conductivity and a consistent 1.5A current rating. Utilizing a Tab-Down configuration, the component effectively saves vertical clearance while withstanding dielectric voltages up to 1500 VDC. Its robust unshielded design ensures signal clarity across an industrial temperature range of -40°C to +85°C. Technicians utilize this modular socket for standard telephone systems and networking gear requiring secure voice-grade connectivity.
Key Features
- 6P2C RJ11 Interface: Provides standard modular connectivity for voice networking systems.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Tab-Down Configuration: Optimizes vertical space for specialized board layouts.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
- High Dielectric Strength: Withstands up to 1500 VDC for electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-629X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P2C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
