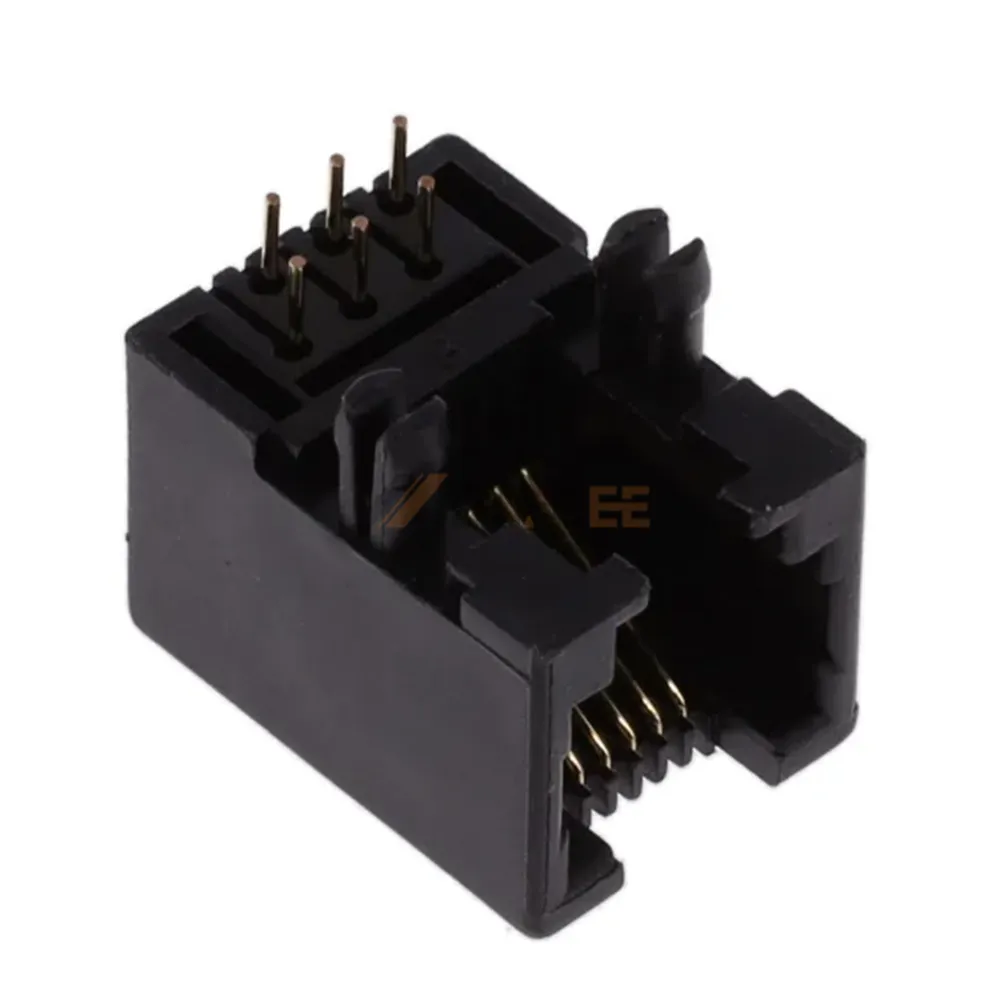

1X1 Port 6P6C RJ12 Jack Phone Connector without LED, Unshielded, Through Hole, Right Angle, Tab-Down
Introduction:
This is a 1X1 port rj12 jack phone connector designed for stable right angle through hole attachment to printed circuit boards. It features a rugged black PBT housing that maintains high thermal stability while providing a superior insulation resistance of 1000 mohms. The 6P6C interface utilizes Phosphor Bronze contacts with premium Gold plating to ensure a low-resistance path and a standard 1.5A current rating. Utilizing a Tab-Down configuration, this unshielded component effectively saves vertical board space while handling dielectric voltages up to 1500 VDC. Technicians utilize this modular interface for standard telephone systems and data networking hardware requiring secure board-to-cable links.
Key Features
- 6P6C Modular Interface: Supports standard RJ11, RJ12, and RJ25 connectivity.
- Gold Plated Contacts: Ensures high conductivity and signal stability.
- Tab-Down Orientation: Optimizes vertical space for specialized board layouts.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
- High Insulation Resistance: Maintains 1000 mohms for enhanced safety.
Main Specifications:
General Information:
| Product No.: | MTJ-665X1, MTJ-669X1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max / 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
