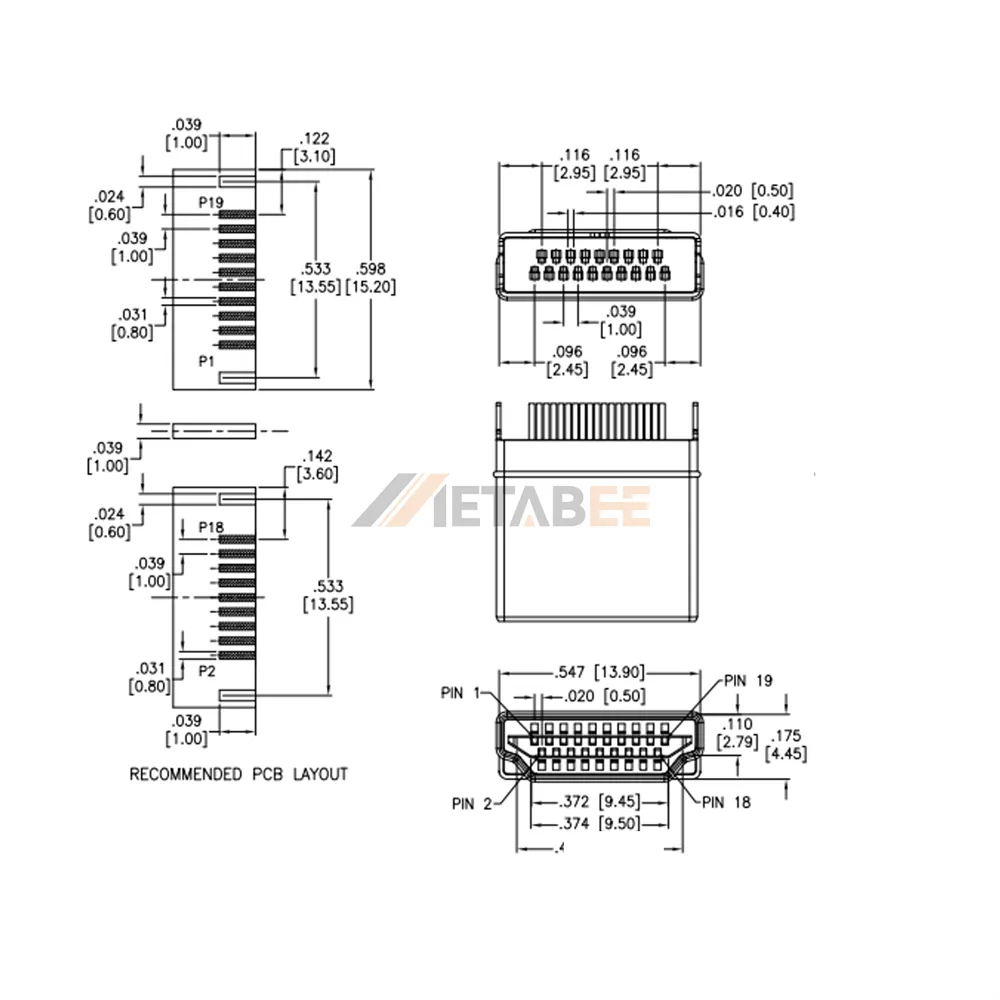

19 Pin HDMI Type A Plug, Solder Type, Straddle Mount
Introduction:
This 19-pin HDMI type a male connector is engineered for reliable high-definition signal transmission in compact electronic designs. Featuring a straddle mount configuration with straight orientation, it solders directly to the pcb edge, saving valuable board space while ensuring secure mechanical retention. The single-port design supports standard HDMI connectivity for a/v applications.
Built with durability in mind, the connector carries a current rating of 0.5a and voltage rating of 40v, making it suitable for low-power signal circuits. It meets ul94v-0 flammability standards for enhanced fire safety, and operates reliably across a wide temperature range from -55°c to +85°c, ensuring performance in demanding environments.
Key Features
- 19-pin HDMI Type A male, single port
- Straddle mount, straight orientation for PCB edge soldering
- Solder-type terminations for secure connections
- Rated for 0.5A / 40V operation
- UL94V-0 flame-retardant housing
- Wide operating temperature: -55°C to +85°C
Main Specifications:
General Information:
| Product No.: | HDMI-PLUG-OM7 | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Straddle Mount | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this 19 Pin HDMI Type A Plug:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
