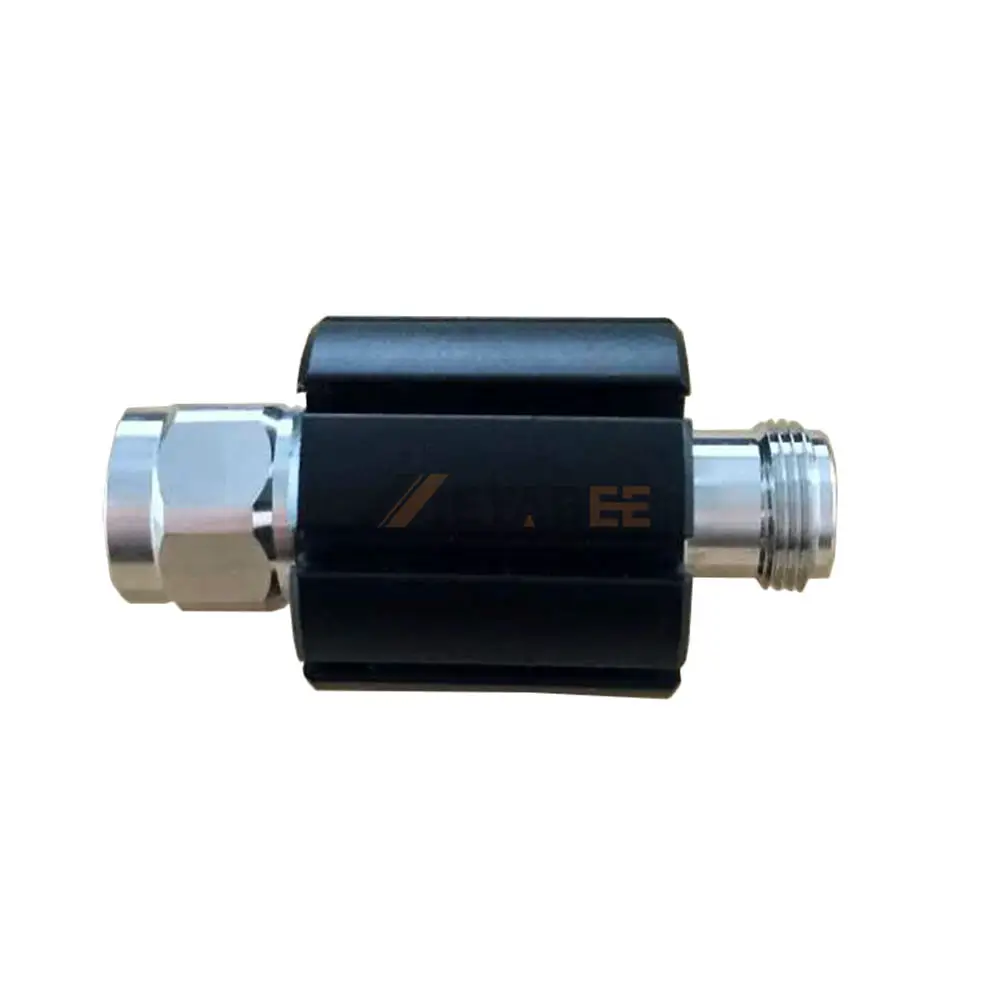

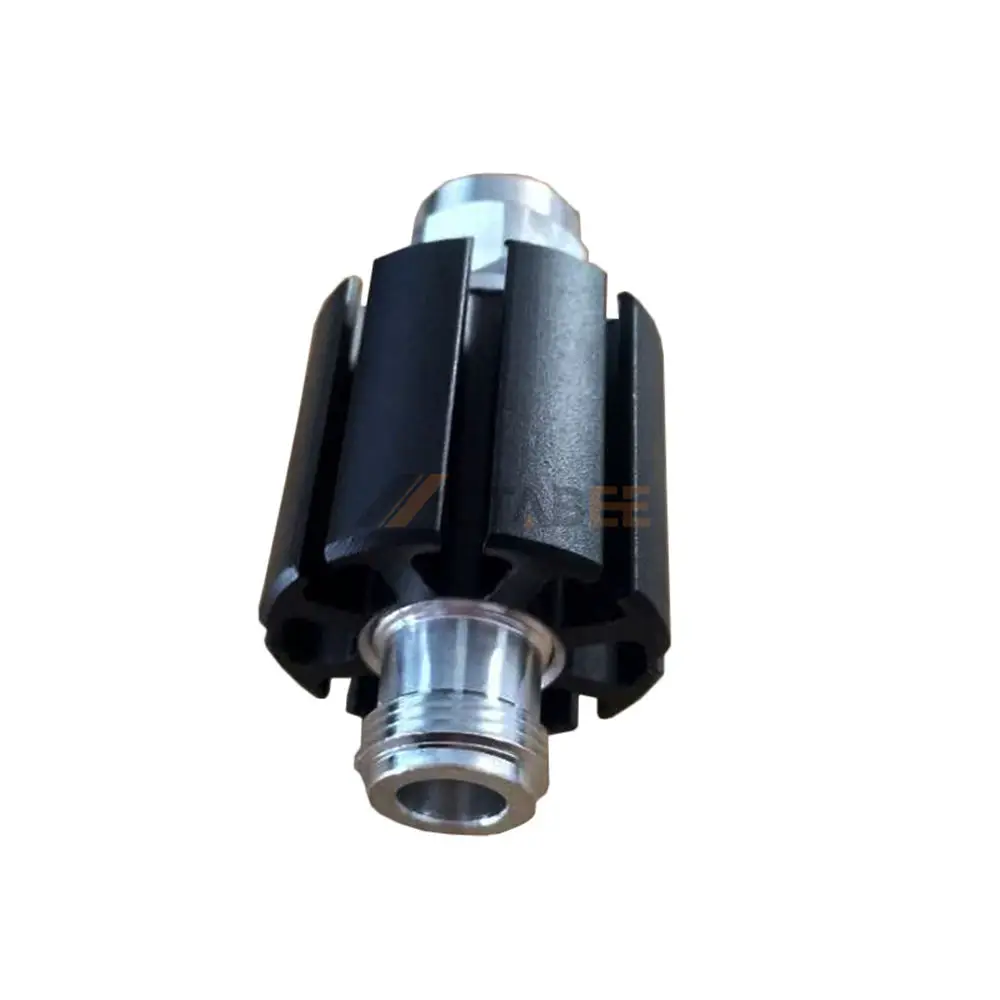

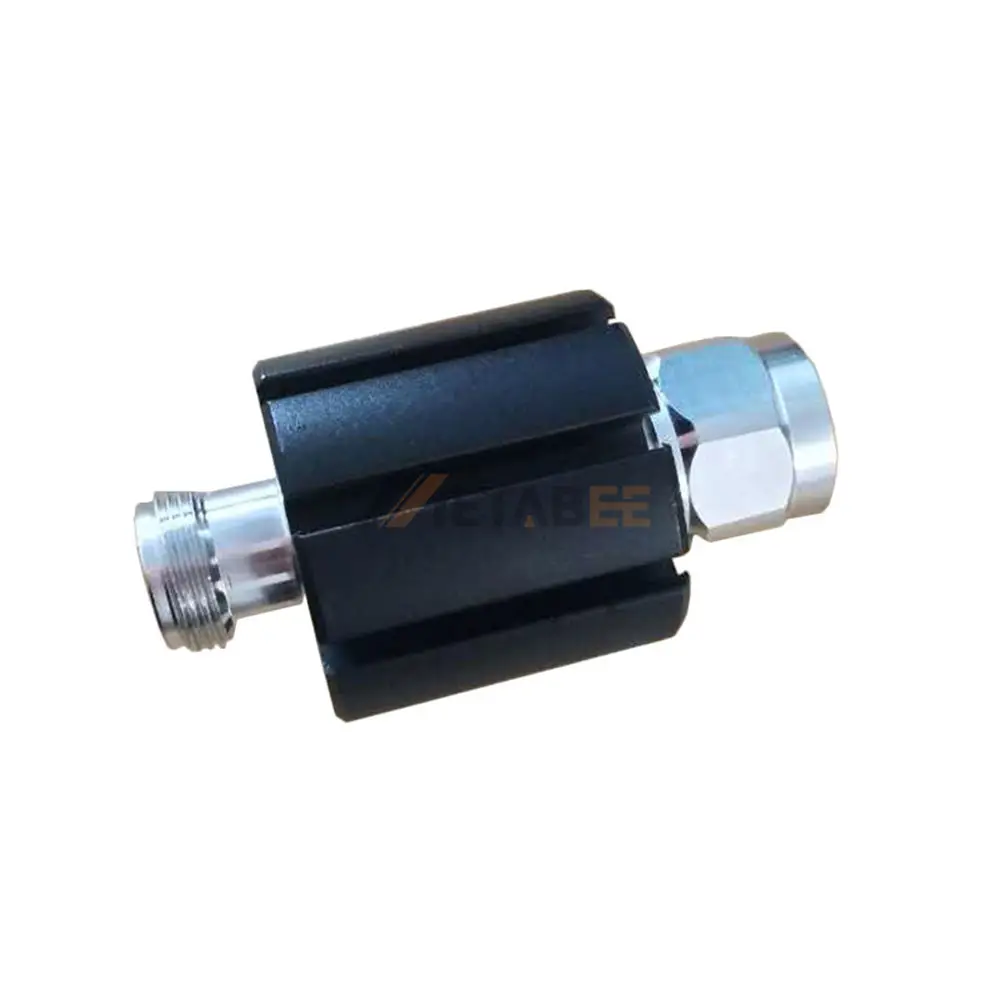

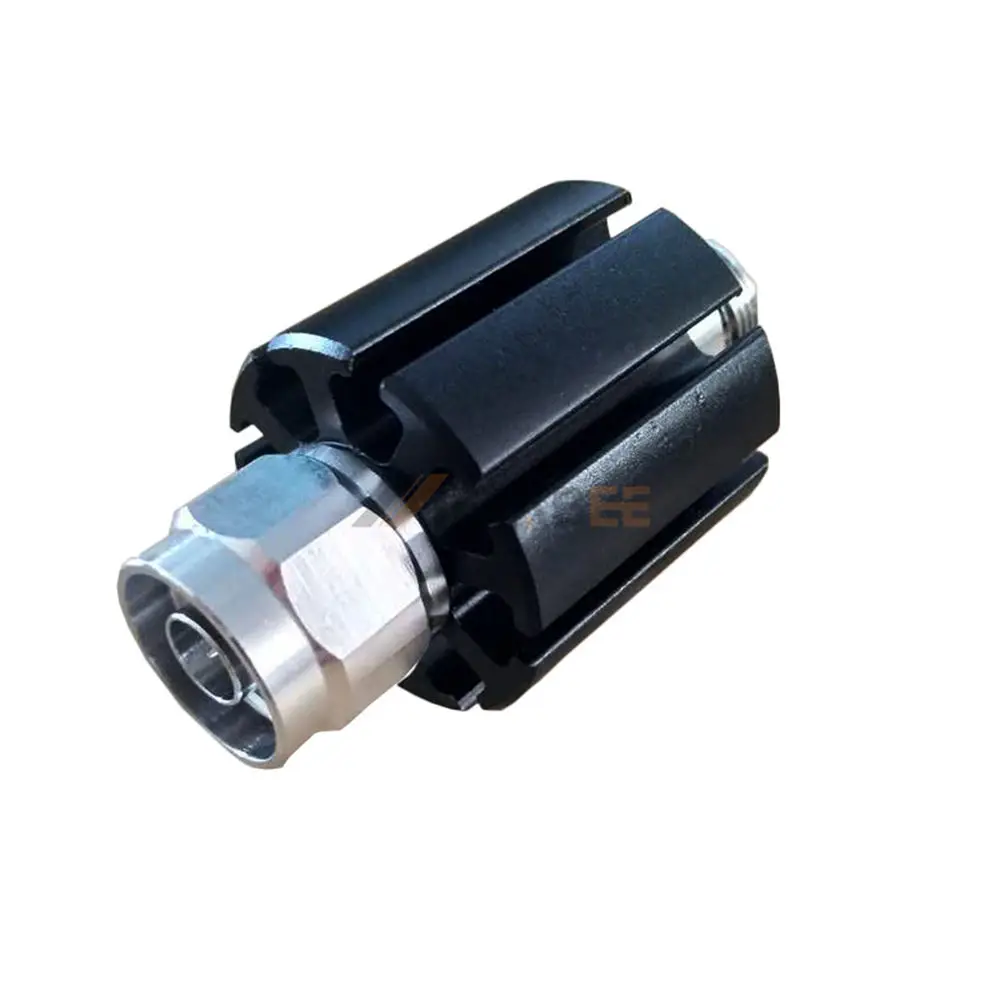

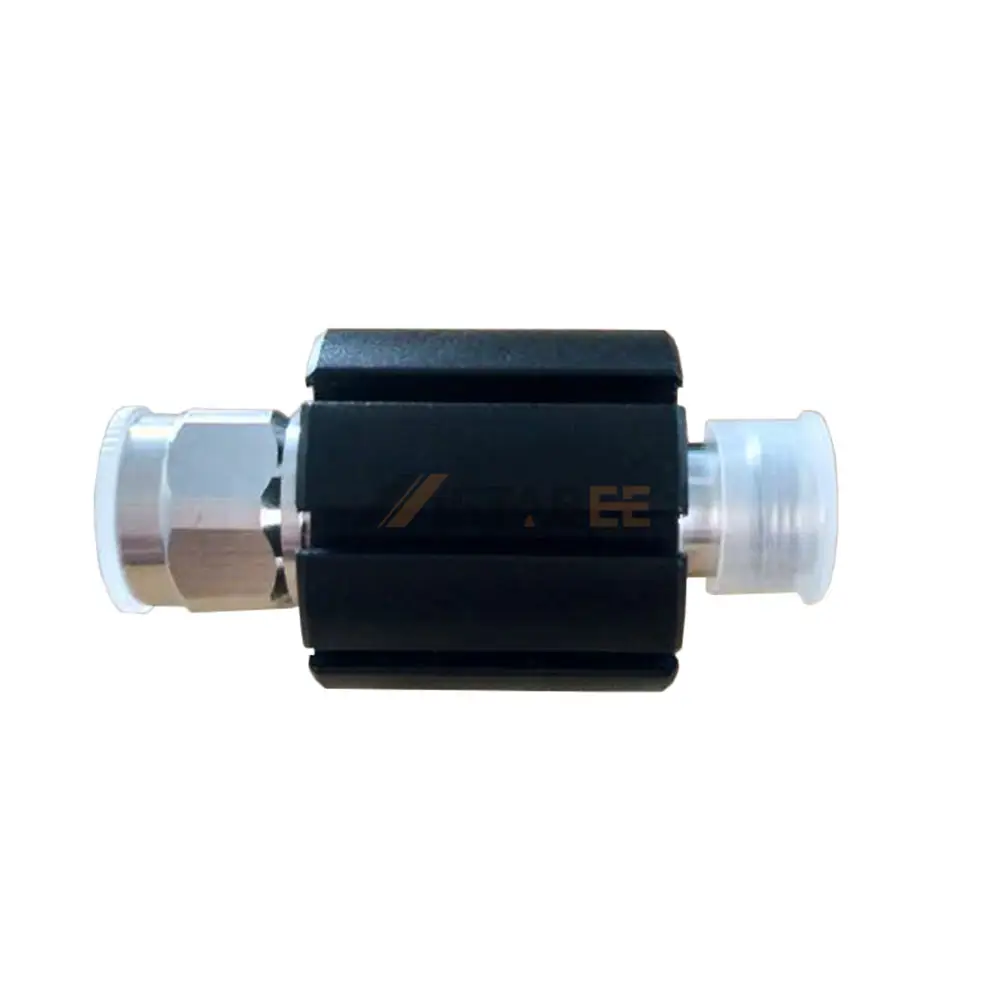

15 Watt N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz

Introduction

The 15-Watt N-type attenuator is designed for high-power RF applications across a frequency range of DC to 3GHz. With a robust 50-ohm impedance and low VSWR of 1.20:1, it ensures minimal signal reflection and stable performance. Ideal for laboratory testing, signal leveling, and power isolation, this attenuator handles up to 15 watts of continuous power, delivering reliable attenuation in demanding RF systems.

Constructed with corrosion-resistant stainless steel housings and precision N-type connectors, this device offers excellent durability and mechanical integrity. Rated IP20 for indoor environments, it operates efficiently under extreme temperatures ranging from -55°C to +125°C, making it suitable for both industrial and commercial RF setups.

Key Features:

  • Frequency Range: DC to 3GHz.
  • Power Rating: Handles up to 15 Watts.
  • VSWR: Low 1.20:1 for signal stability.
  • Connector Type: N-type male to N-type female.
  • Impedance: 50 Ohms standard.
  • Material: Stainless steel construction.
  • Operating Temp: -55°C to +125°C.

Main Specifications:

Part No.: 10W-N-JK-3G
Product Series: N-type Attenuators
Brand: Metabee
Connector 1: N-type Connector
Connector 1 – Gender: Male
Connector 1 – Body Material: Stainless Steel
Connector 1 – Body Plating: Not Applicable
Connector 2: N-type Connector
Connector 2 – Gender: Female
Connector 2 – Body Material: Stainless Steel
Connector 2 – Body Plating: Not Applicable
Power Maximum: 15W
Attenuation:  1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB
Impedance: 50 Ohm
VSWR: ≤1.20:1
Frequency(Max): 3 GHz
Operating Temperature: -55°C to +125°C
IP Rating: IP20
Other Feature: None


Applications of this 15-Watt N-type Male to N-type Female RF Fixed Attenuator:

  • Protecting Sensitive Equipment;
  • Video Systems;
  • RF Communication;
  • Laboratory Setups;
  • Preventing Amplifier Saturation;
  • Audio Applications

We can provide the RF Attenuators according to your special requirements. Get a free quotation now!

RF Attenuators
Metabee is a professional RF connector manufacturer from China. We can provide all kinds of RF attenuators.
Product No.

15W-N-JK-3G

Product Series

N-type Attenuators

Product Name

15 Watt N-type Male to N-type Female RF Fixed Attenuator, DC to 3GHz

Brand

Metabee

Connector 1

N-Type Connector

Connector 1 - Gender

Male

Connector 1 - Body Material

Stainless Steel

Connector 1 - Body Plating

Not Applicable

Connector 2

N-Type Connector

Connector 2 - Gender

Female

Connector 2 - Body Material

Stainless Steel

Connector 2 - Body Plating

Not Applicable

Max Power

15W

Attenuation

1DB, 3DB, 5DB, 6DB, 10DB, 15DB, 20DB, 30DB

Impendence

50 Ohm

Frequency(Max)

0-3 GHz

VSWR

≤ 1.20:1

IP Rating

IP20

Operating Temperature

-55ºC to +125 ºC

Other Features

None
