10A D-type Heavy Duty Connector Male Contact, Crimp Termination, Gold Plated Copper Alloy
Introduction:
This 10A D-type heavy duty male contact uses a crimp termination design that ensures firm wire attachment and steady current flow. The copper alloy pin features a gold-plated surface that provides higher stability than silver plating. Gold does not tarnish, oxidize, or discolor, so the contact interface stays clean for a longer time. It maintains low contact resistance even in high-humidity or high-cycle conditions. The pin offers accurate mating and consistent insertion force.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | DDM-0.37 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Gold Plated | |
| Rated current: | 10A | |
| Contact resistance: | ≤3mΩ | |
| Wire Gauge: | 0.14-0.37 mm² (AWG 26-22) | |
| Stripping length: | 8 mm |

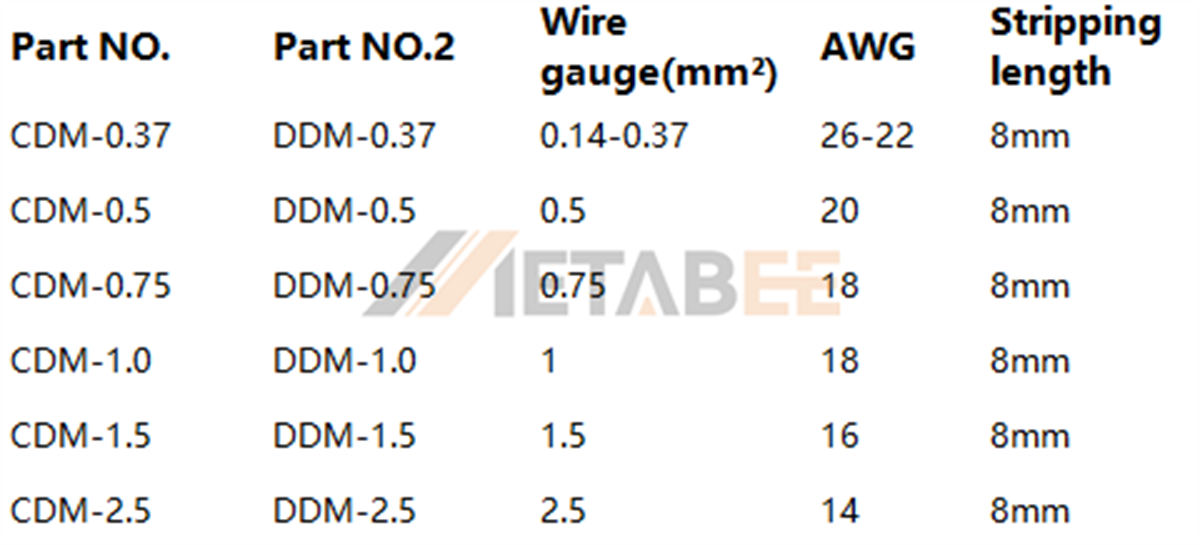

Wire Gauge Options for Silver-Plated and Gold-Plated Male Contacts
Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
