100A N-type Heavy Duty Connector Male Crimp Contact for HM Inserts, Silver Plated Copper Alloy
Introduction:
This 100A N-type heavy duty connector contact is designed for HM inserts and uses a crimp termination to secure the wire connection. The copper alloy pin is coated with a silver-plated surface that supports strong conductivity and low contact resistance. The structure provides stable current flow under high load conditions. The silver layer helps reduce interface heating and improves surface performance during repeated mating.
Note: The product supports multiple wire gauge options, and users can select the size that matches their wiring needs.
Main Specifications:
General Information:
| Product No.: | CNM-10 | |
| Category: | Heavy-Duty Connector Contacts | |
| Type of Contacts: | Crimp Contact | |
| Termination Method: | Crimp Termination | |
| Gender: | Male | |
| Contact Material: | Copper Alloy | |
| Surface: | Silver Plated | |
| Rated current: | 100A | |
| Contact resistance: | ≤1 mΩ | |
| Wire Gauge: | 10 mm² (AWG7) | |
| Diameter: | Φ4.3mm | |
| Stripping length: | 19 mm |

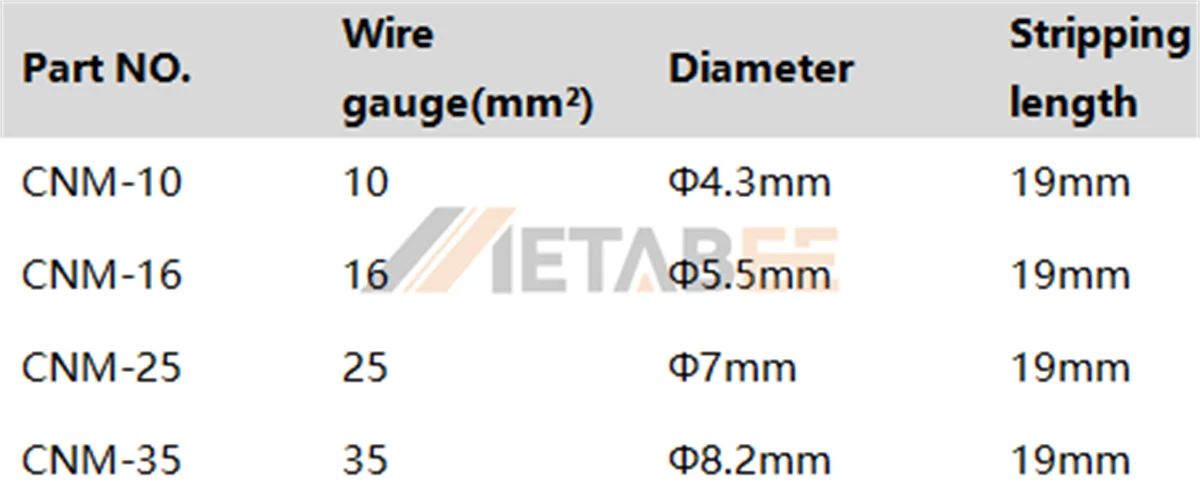

Wire Gauge Options

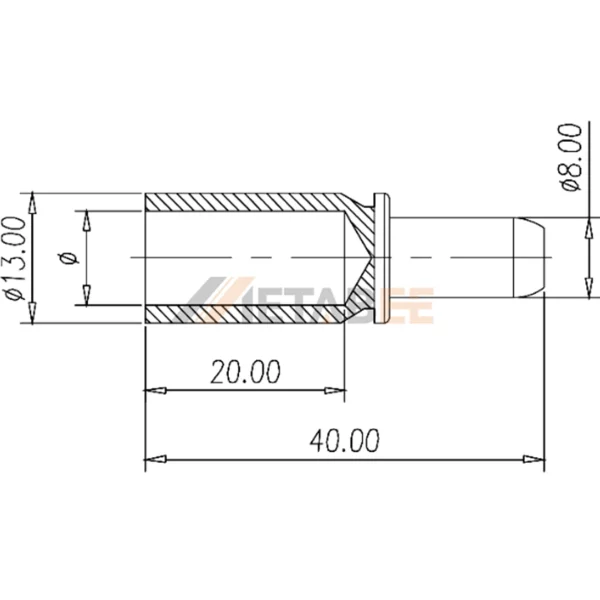

Structure of Heavy-Duty Connector
Type of Heavy-duty Connector Contacts
