Introduction:
The RJ45 jack with integrated magnetics is a shielded 1×4 multi-port network component used for industrial Ethernet applications. Reliable 10/100 Base-T data transmission remains consistent across a wide -40°C to +85°C temperature range. A robust nickel-plated brass shield encloses the black PA66 insulator to block electromagnetic interference effectively. Precise component alignment on the PCB depends on the integrated board guide and solder retention features. Visual network feedback relies on built-in green and yellow LED indicators positioned in the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 milliohms in this RJ45 jack with integrated magnetics. Secure mechanical termination uses a right-angle through-hole configuration.
Key Features
- 10/100Base-T Performance: Facilitates reliable Fast Ethernet data transmission speeds.
- Industrial Temperature Range: Operates reliably across extreme environments of -40°C ~ +85°C.
- 1×4 Multi-port Profile: Connects four network devices using one module.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 milliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88SX1-FSD-PG-VLH-NRSP-M4C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, nickel-plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

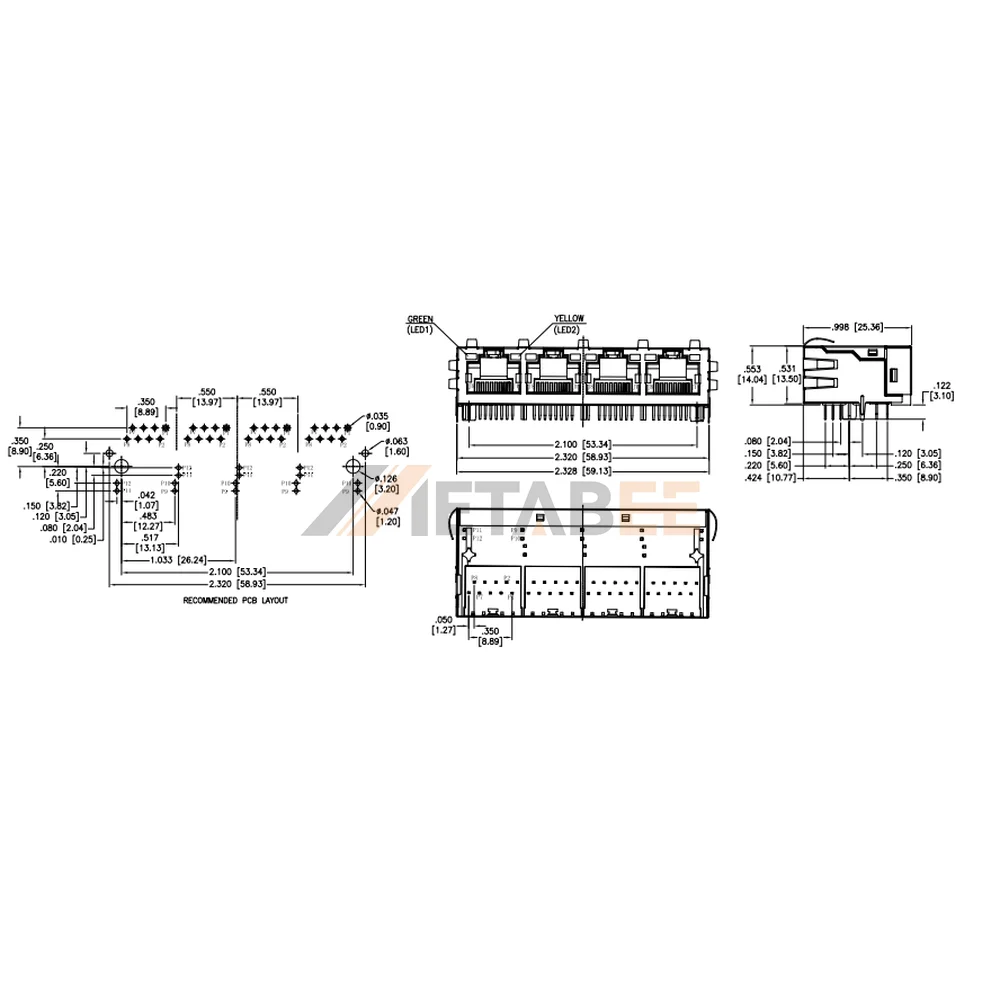

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
