1 Port Shielded RJ45 Female Connector with LEDs, 8P8C, Tab-Up, Surface Mount, Right Angle
Introduction:
This is a single port 8P8C shielded RJ45 SMT jack designed for high-efficiency surface mount assembly on modern networking boards. It features a hi-temp thermoplastic housing that is specifically engineered to survive intense reflow soldering processes without any structural warping. The full brass shield provides a robust barrier against electromagnetic interference to ensure high signal integrity across all data paths. Phosphor Bronze contacts with Gold over Nickel plating support a consistent 1.5A current rating for stable data transmission. Utilizing a Tab-Up right angle configuration and integrated Green or Yellow LEDs, the unit optimizes PCB space while providing immediate link diagnostics. Technicians utilize this modular interface for telecommunication systems and high-density networking hardware requiring reliable board-level connectivity.
Key Features
- SMT Design: Optimized for high-speed automated surface mount assembly.
- Full EMI Shielding: Brass shell protects data integrity from signal noise.
- Integrated Status LEDs: Provides instant visual diagnostics for network activity.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-SMT-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

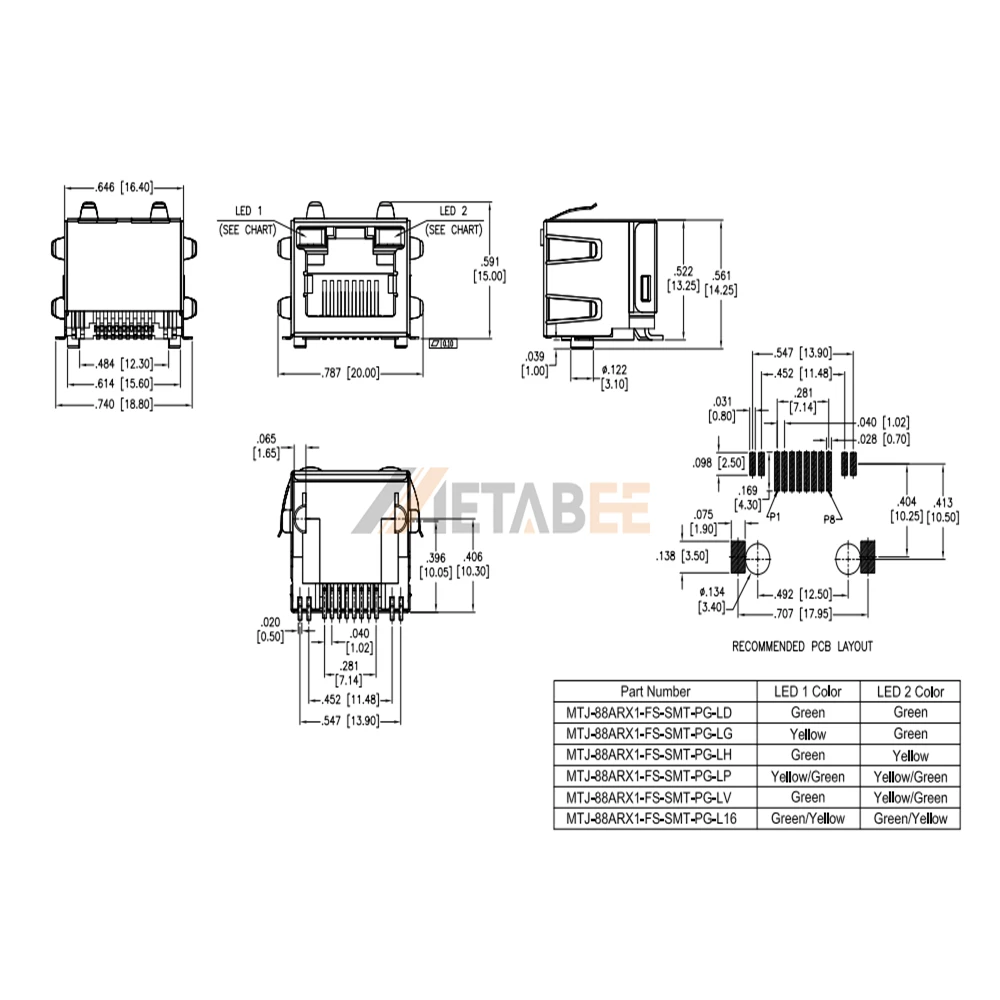

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
