1 Port RJ45 UTP Jack 8P8C Connector with LEDs, Tab-Down, Through Hole, R/A, Yellow/Green
Introduction:
This is a single port RJ45 UTP jack with built-in status LEDs designed for stable through hole PCB mounting. It is manufactured from hi-temp thermoplastic to survive intense soldering processes while maintaining a high insulation resistance of 1000MΩ. The Gold over Nickel plated contacts ensure a low-resistance path for signal transmission across a wide temperature range of -40°C to +85°C. Utilizing a Tab-Down right angle configuration, the component optimizes board space while the yellow and green lights provide instant link diagnostics. Technicians utilize this modular interface for networking equipment and data communication devices requiring visual status monitoring.
Key Features
- Status Indicator LEDs: Integrated yellow-green lights for link monitoring.
- Gold Plated Contacts: Ensures high conductivity and signal stability.
- Hi-Temp Thermoplastic: Withstands intense heat during soldering processes.
- Tab-Down Design: Optimizes mechanical fit for PCB layouts.
- 8P8C UTP Interface: Provides standard unshielded modular connectivity.
Main Specifications:
General Information:
| Product No.: | MTJ-884X1-LG-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

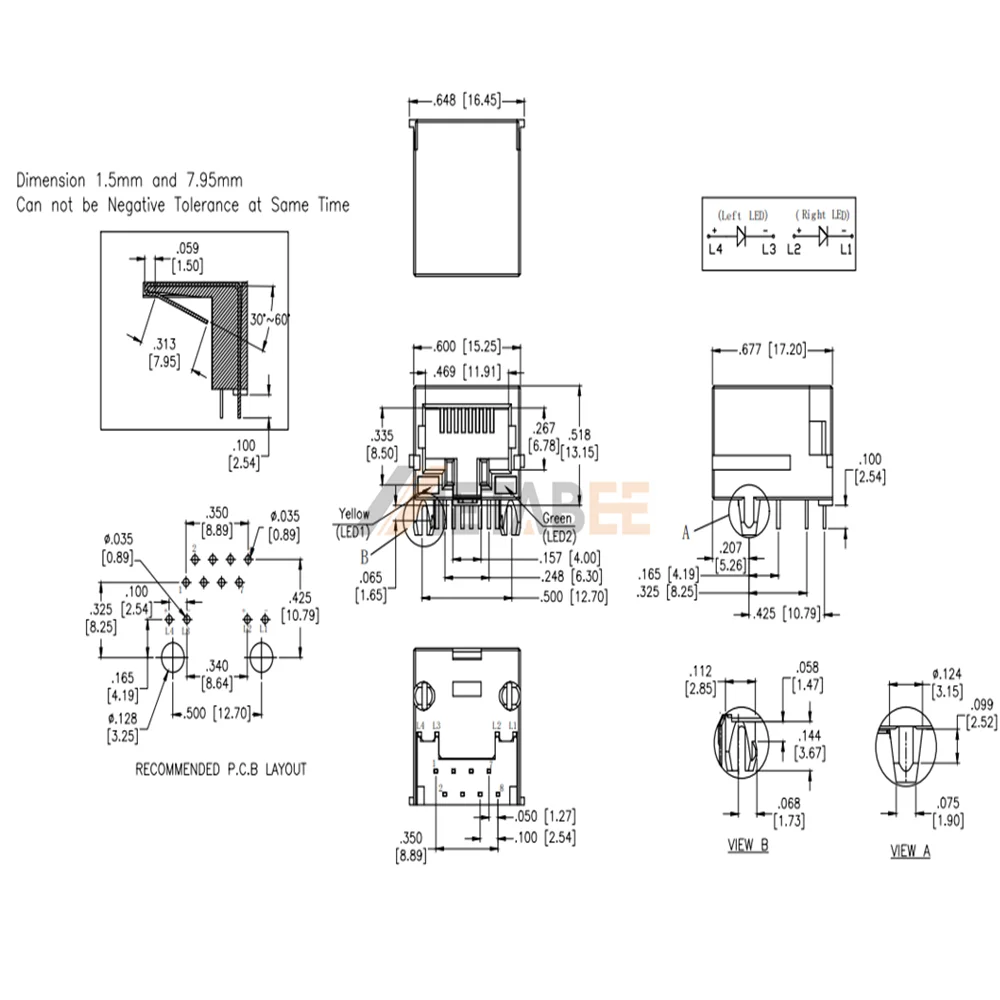

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
