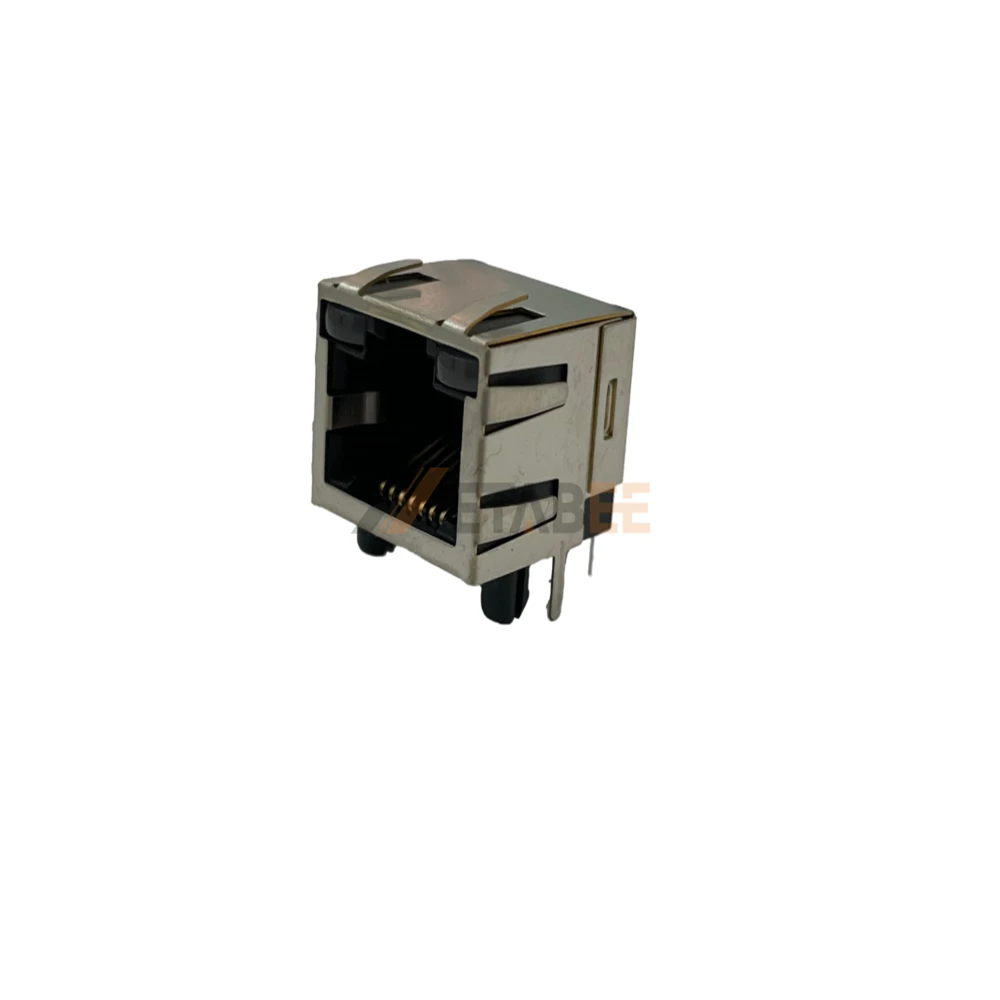

1 Port RJ45 Female Socket Modular Connector with LEDs, 8P8C, Shielded, Tab-Up, Through Hole, R/A
Introduction:
This is a single port RJ45 female modular connector socket designed for stable through hole mounting on high-speed networking circuit boards. A robust nickel-plated brass shell provides full EMI shielding to protect signal integrity from external noise in busy environments. Depending on your specific model, this series offers diverse integrated LED color options, such as yellow-green or green-yellow combinations, for instant link status monitoring. The housing utilizes glass-reinforced PBT to survive intense industrial wave soldering processes without any physical warping. We provide flexible customization for different finish requirements and configurations to meet unique project needs. Technicians utilize this reliable 8P8C interface for secure data transmission in telecommunication and industrial networking hardware across a wide -40°C to +85°C range.
Key Features
- Full EMI Shielding: Metallic brass shell effectively blocks external signal interference.
- Diverse LED Options: Multiple color combinations enable immediate link diagnostics.
- Gold Plated Contacts: Ensures high conductivity and lasting oxidation resistance.
- Glass Reinforced PBT: Survives intense heat during industrial wave soldering.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT, glass reinforced | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

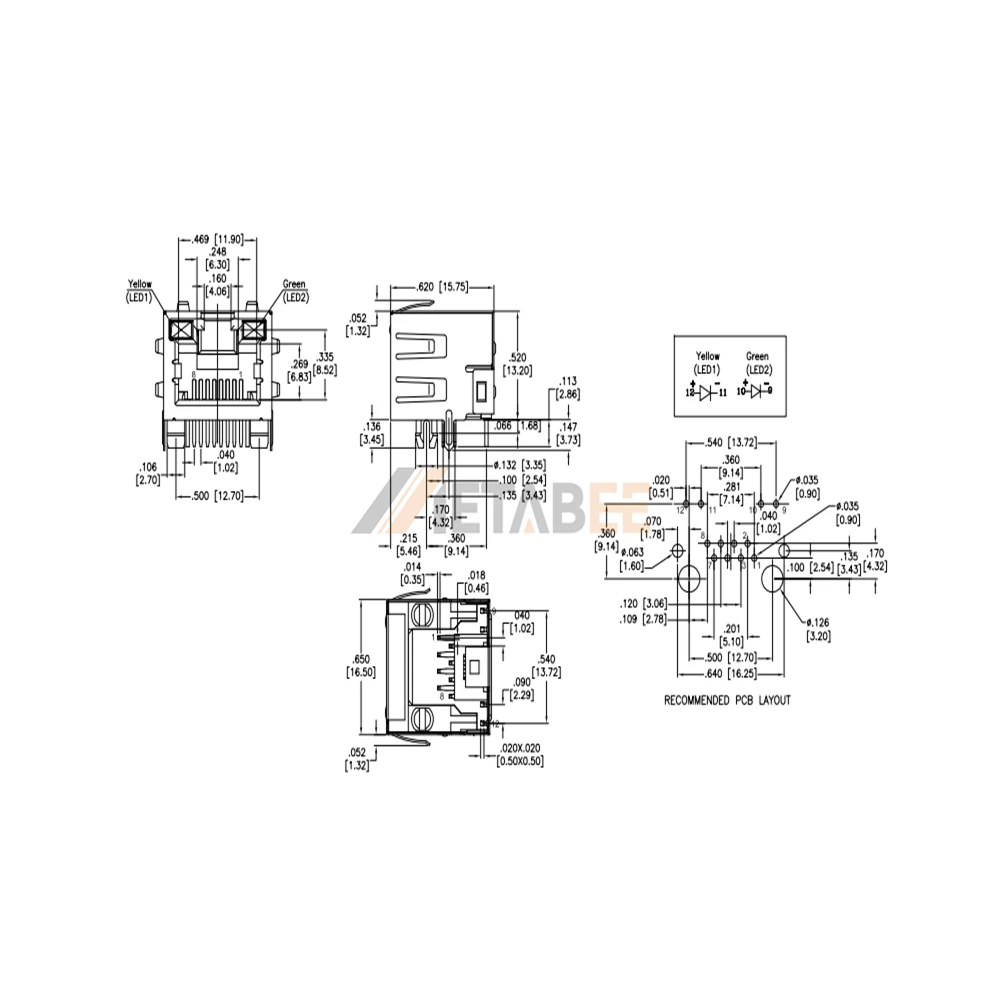

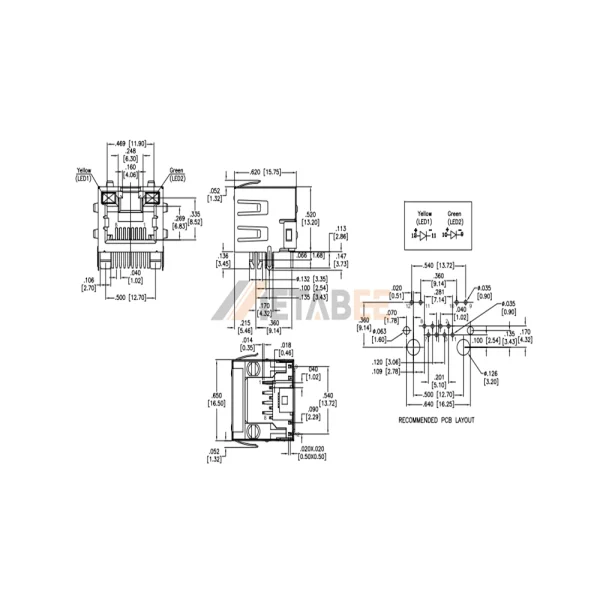

Structure of Modular Jack

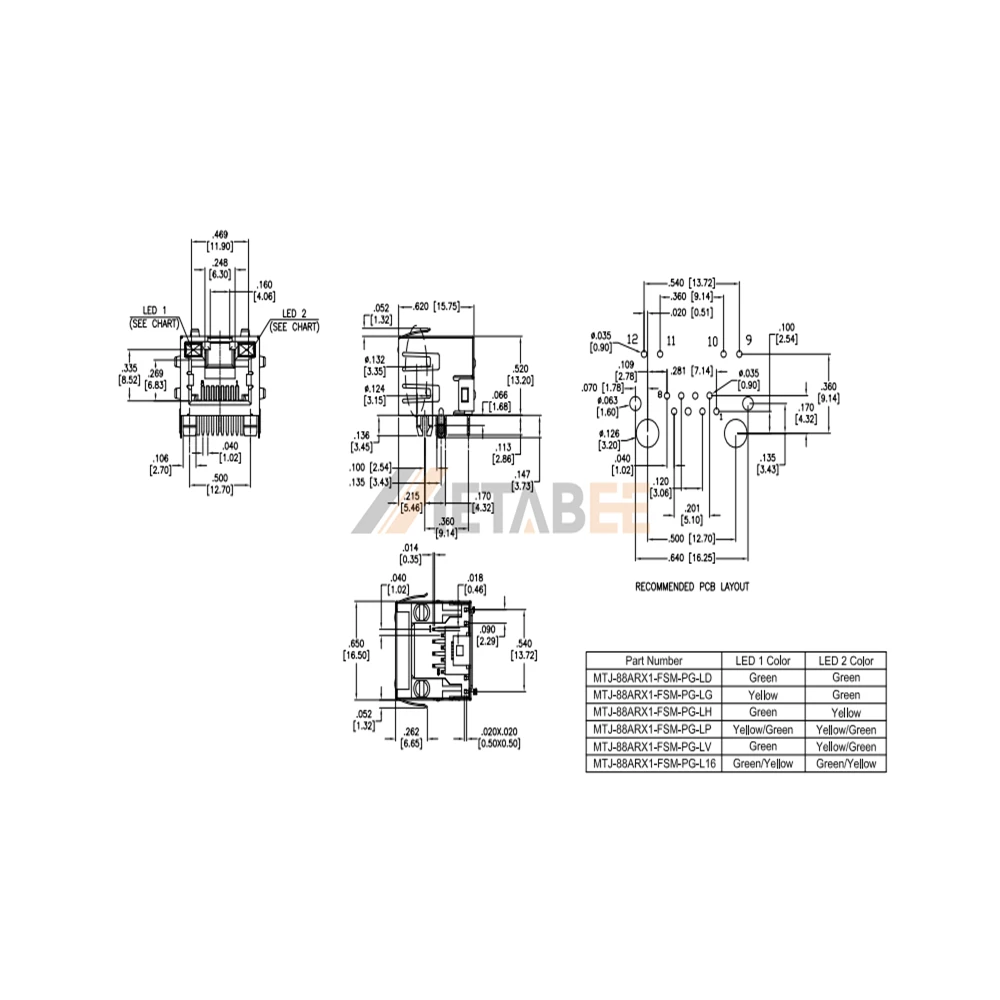

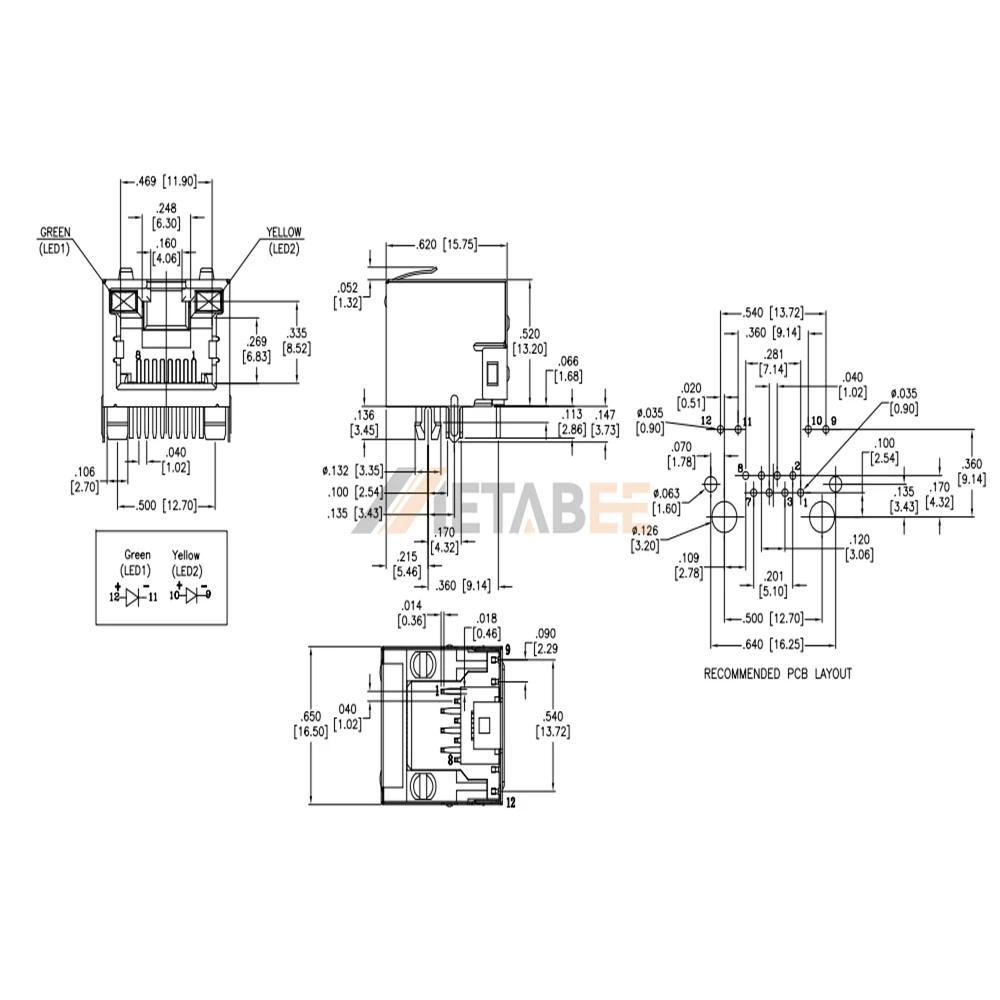

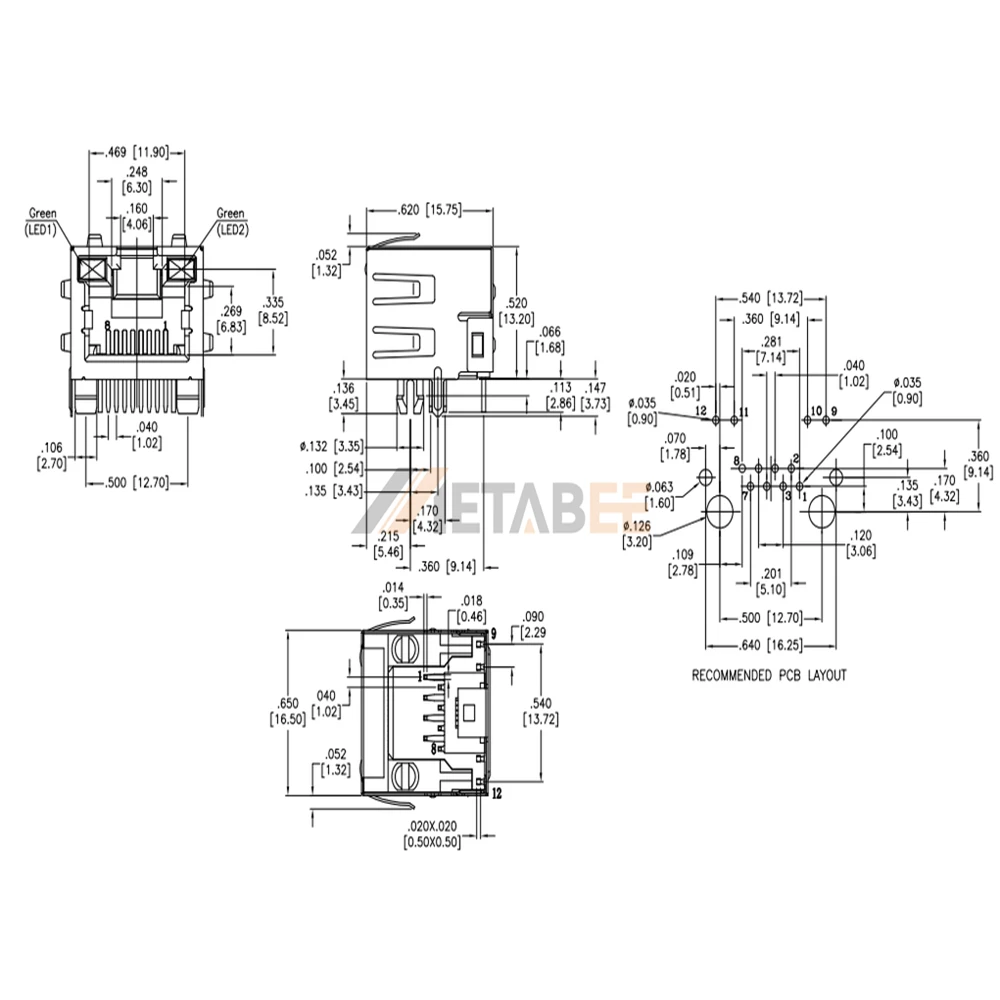

Engineering Options of RJ45 Modular Jack
