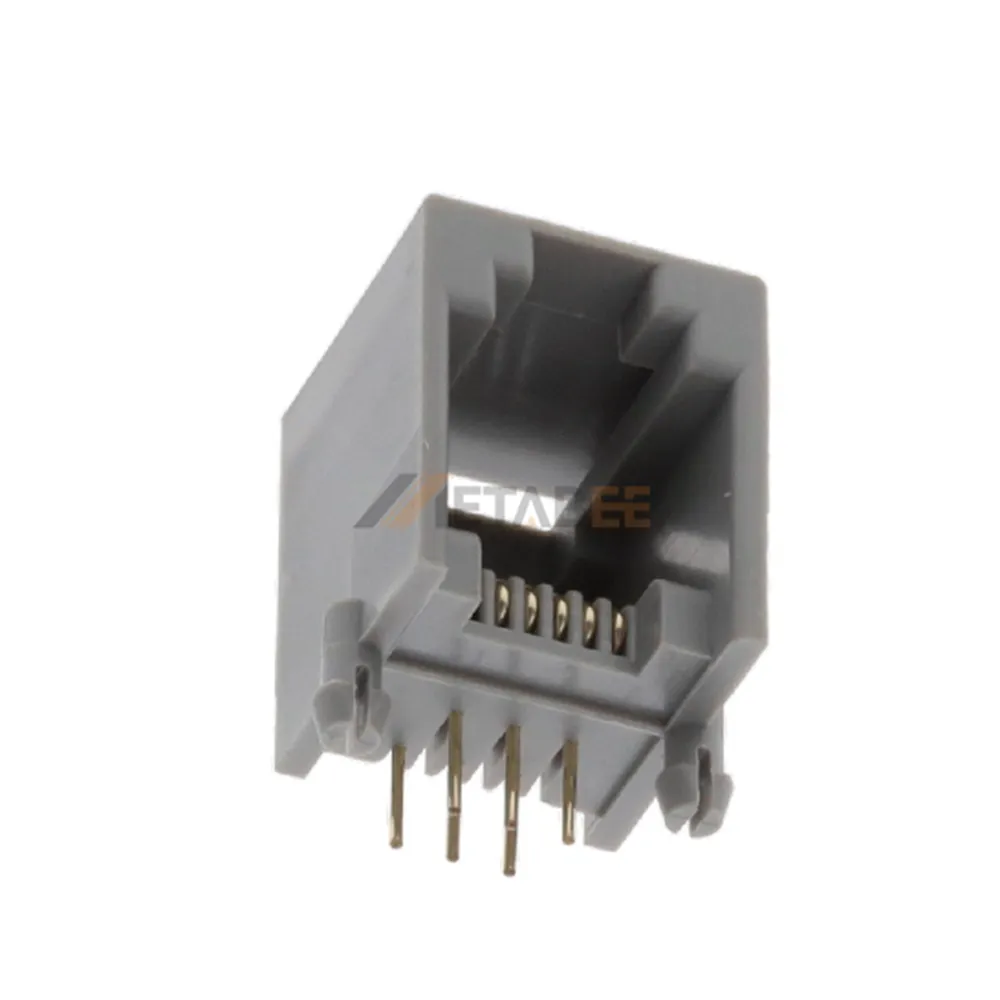

1 Port RJ12 6P6C Female Modular Jack Telephone Connector, Unshielded, PCB Mount, R/A, Tab-Up, No LED
Introduction:
This is a single port RJ12 6P6C female modular jack designed for stable right angle through hole attachment to printed circuit boards. It features a durable black PBT housing that provides excellent thermal stability and maintains a high insulation resistance of 1000 mohms. The Phosphor Bronze contacts include a premium Gold plating to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration, this unshielded unit effectively saves vertical space while handling dielectric voltages up to 1500 VDC. Technicians utilize this reliable modular interface for standard telephone systems and networking gear requiring secure 6-pin board-to-cable links.
Key Features
- 6P6C RJ12 Interface: Supports standard modular connectivity for voice systems.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Tab-Up Configuration: Optimizes vertical clearance for specialized board layouts.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
- High Insulation Resistance: Maintains 1000 mohms for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-662BX1-HT, MTJ-662BX2 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min / 1000 mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

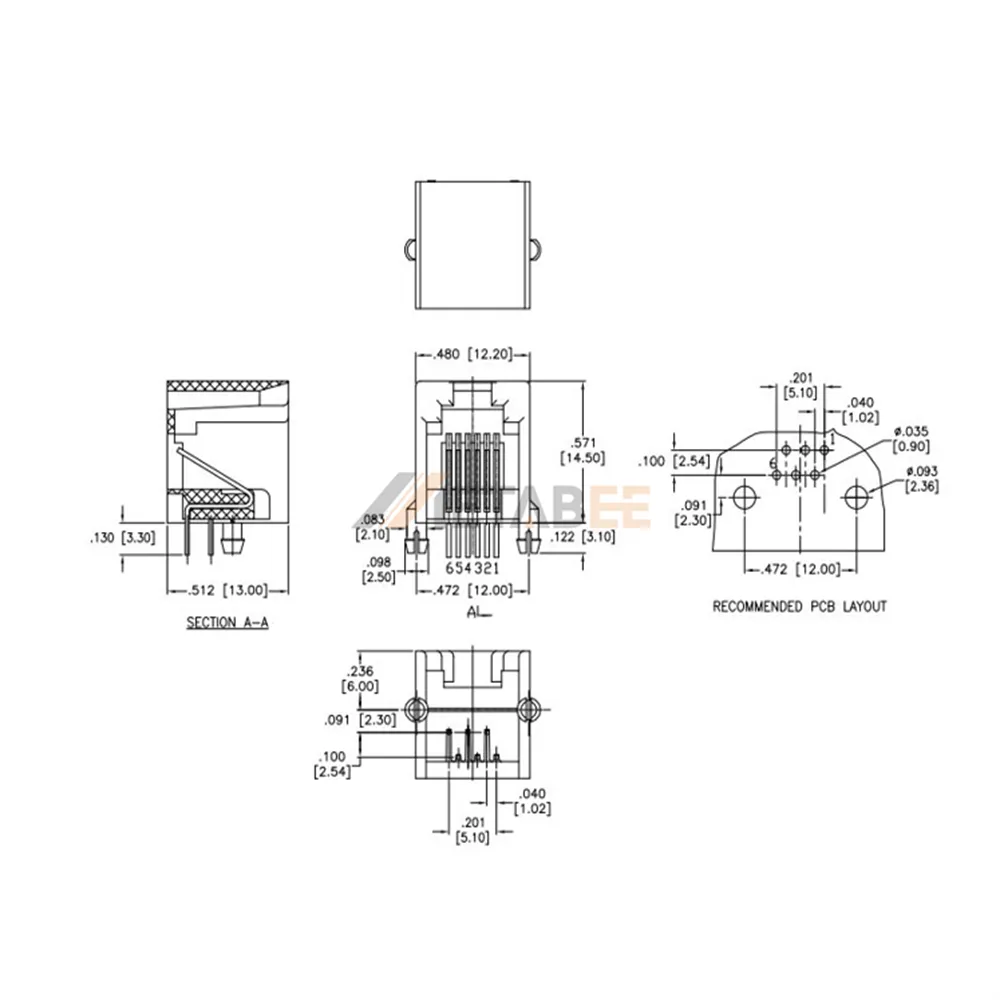

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
