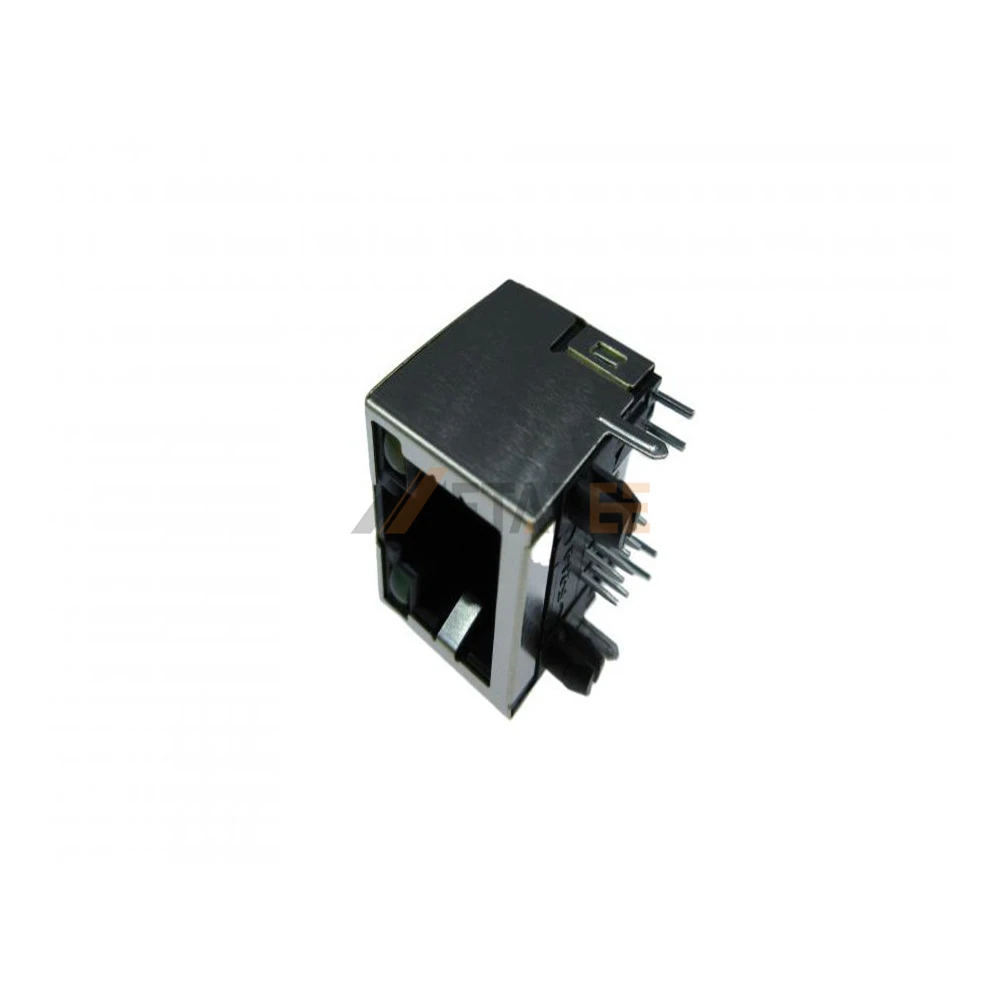

1 Port Right Angle RJ45 Jack Connector, 8P8C, Shielded, Tab-Up, Through Hole, Green/ Yellow-Green/ Yellow
Introduction:
This is a single port right angle RJ45 jack connector designed for stable through hole mounting on printed circuit boards. It features a robust copper alloy shell with nickel plating to provide a full shield against electromagnetic interference for clear signal integrity. The housing is made of durable Nylon 46, ensuring the component survives the thermal stress of industrial wave soldering without any deformation. Phosphor Bronze contacts with a Gold Flash finish support a 1A current rating for consistent data transmission across a temperature range of -40°C to +85°C. Utilizing a Tab-Up configuration and integrated Yellow and Green LEDs, this unit optimizes board space while offering immediate link diagnostics. Technicians utilize this modular interface for networking equipment and telecommunication hardware requiring secure shielded connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external noise effectively.
- Hi-Temp Nylon Housing: Withstands intense heat during industrial soldering processes.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- 1500 Vrms Strength: Provides high dielectric withstanding voltage for safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-L16 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/ Yellow, Right: Green/ Yellow |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 40mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Nylon46 | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
