Introduction:

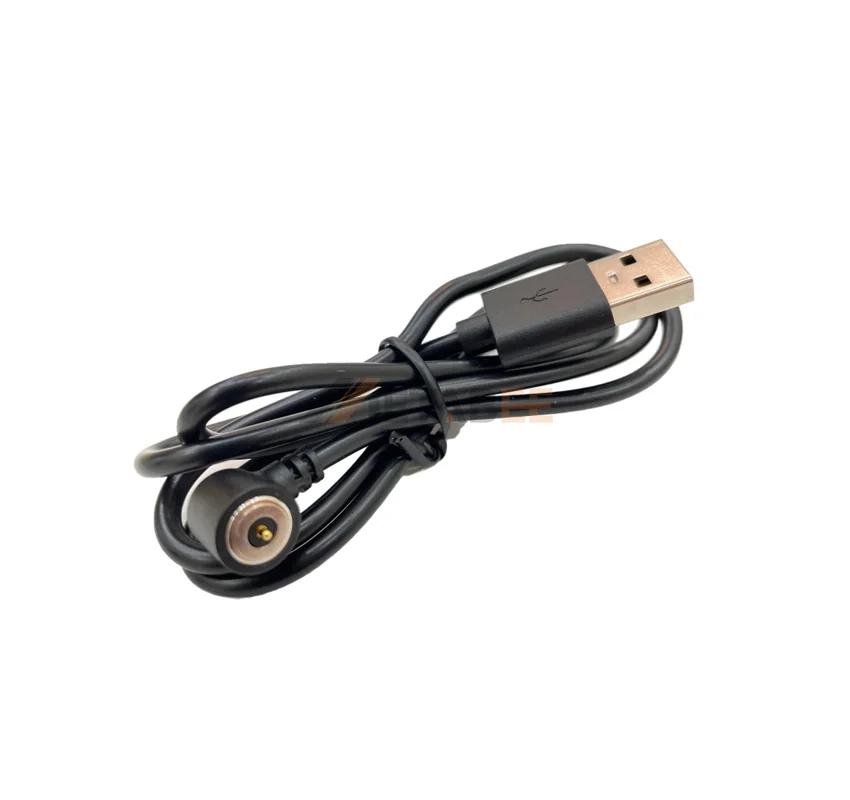

This magnetic pogo pin cable provides a convenient power and data link for specialized electronic devices. It integrates a standard USB Type-A male connector with a single-pin right angle magnetic pogo interface. The circular magnetic head facilitates automatic self-alignment, enabling easy one-handed connections for the user. Constructed with 22AWG PVC cable, this assembly supports a 3A current rating and 12VDC power delivery. Gold flash plating on the contact ensures stable electrical performance over 100,000 mechanical cycles. This cable assembly serves as a reliable charging solution for wearable technology and portable hardware where space efficiency is required.
Key Features
- Magnetic Connection: Circular magnetic head enables automatic self-alignment.
- High Power: Supports 3A current for efficient fast charging.
- Right Angle: 90-degree orientation saves space in compact designs.
- Durable Plating: Gold flash plated contact ensures 100,000 cycle life.
- Flexible Reach: 800mm 22AWG PVC cable offers reliable durability.
Main Specifications:
General Information:
| Product No.: | CA-RA2-PHR-15103-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 1 | |
| Connector 2-Shape: | Circular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | N/A | |
| Contact Plating: | Gold Flash Plated | |
| Cable Type: | Round Cable | |
| Wire Gauge: | 22AWG | |
| Cable Length: | 800 ±20 mm | |
| Jacket Material & Color: | PVC 55P, Black |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max | |
| Insulation Resistance: | N/A | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 80±20gf | |
| Working Stroke: | 1.1mm | |
| Full Stroke: | 1.60mm | |
| Durability: | 100,000 cycles |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
