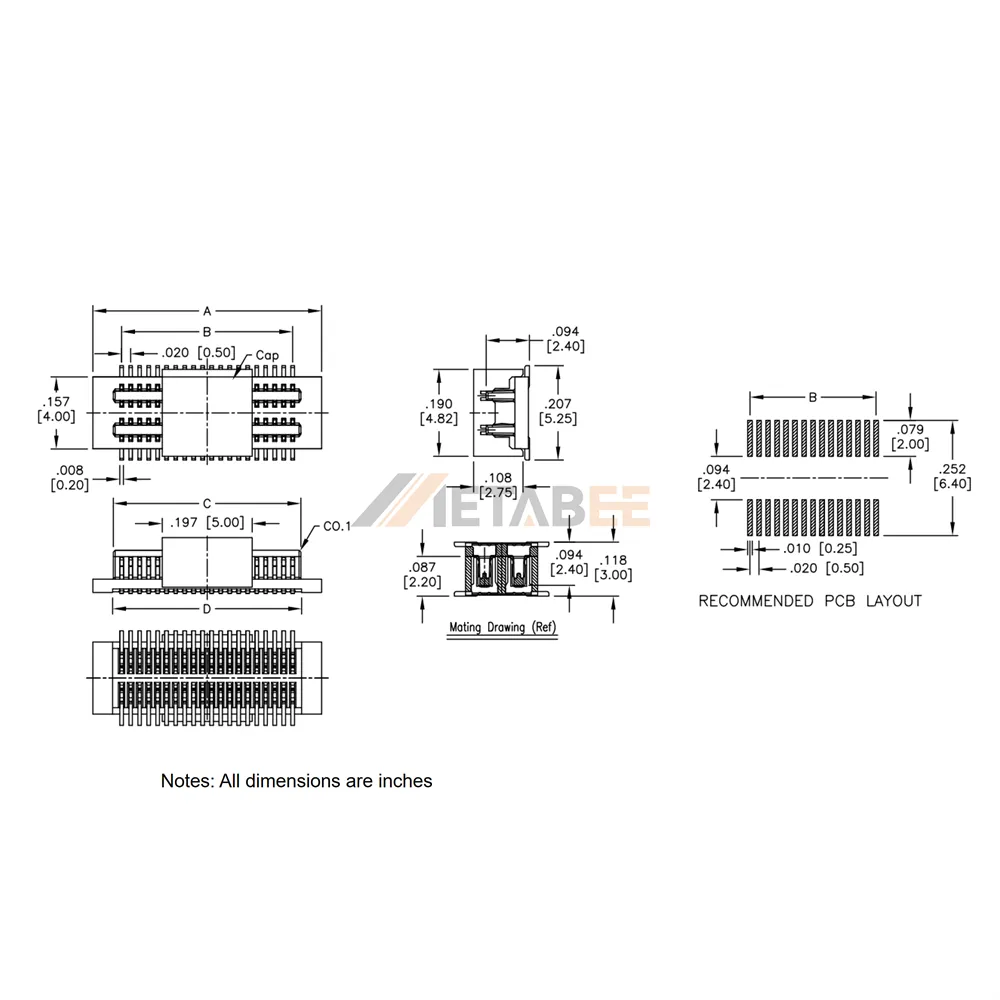

0.5mm Pitch PCB SMT Board to Board Plug, 2.4mm Height
Introduction:
The 0.5mm Pitch PCB SMT Board to Board Plug is designed for compact and high-density electronic applications requiring dependable board-level connections. Featuring a vertical mating orientation and dual-row structure, this male connector offers efficient signal transmission while maximizing PCB space utilization. With a low profile height of 2.4mm, it is ideal for consumer electronics, industrial devices, communication equipment, and embedded systems.
Manufactured with copper alloy contacts and gold flash plating, the connector provides excellent conductivity, low contact resistance, and superior resistance to oxidation. The high-temperature thermoplastic insulator ensures outstanding dimensional stability during SMT reflow soldering and delivers long-lasting mechanical reliability in demanding environments.
Engineered for stable performance, the connector operates within a temperature range of -40°C to +85°C and meets the UL 94 V-0 flammability standard for enhanced safety. Its fine 0.5mm pitch and surface mount design enable reliable, high-density interconnections in space-constrained applications.
Key Features
- ine 0.5mm pitch for compact PCB layouts
- Low-profile 2.4mm height for space-saving designs
- Vertical male connector with dual-row configuration
- Surface mount design for automated assembly processes
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic housing with UL 94 V-0 rating
Main Specifications:
General Information:
| Product No.: | YC-BB5-PN-XXX-G-2.40-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 2.40mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch PCB SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
