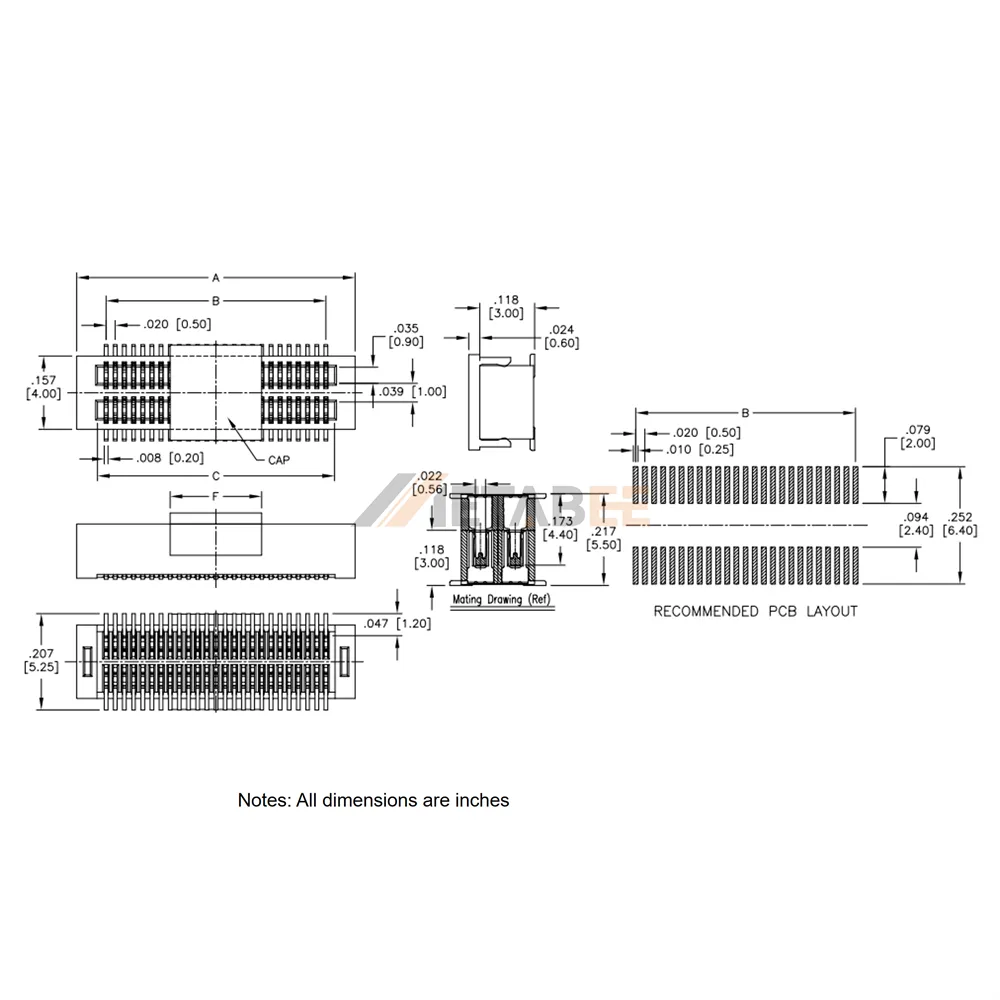

0.5mm Pitch SMT Board to Board Female Connector, 3mm Stack Height
Introduction:
The 0.5mm Pitch SMT Board to Board Female Connector is designed for high-density PCB interconnection applications where compact size, reliable electrical performance, and efficient assembly are essential. Featuring a 3.0mm stack height and dual-row configuration, this connector supports 10 to 120 positions, making it suitable for a wide range of industrial, consumer electronics, communication, and embedded system applications.
Engineered with copper alloy contacts and gold flash plating, the connector delivers excellent conductivity, stable signal transmission, and enhanced resistance to wear and corrosion. The surface-mount, vertical-mating design helps optimize PCB space while supporting automated assembly processes, improving manufacturing efficiency and reducing production costs.
The housing is molded from high-temperature thermoplastic material and meets UL 94 V-0 flammability standards for improved safety and durability. With an operating temperature range of -40°C to +85°C, this board-to-board connector ensures dependable performance in demanding environments, providing a reliable solution for compact electronic devices requiring secure and stable board-level connections.
Key Features
- 0.5mm pitch design for high-density PCB layouts
- 3.0mm stack height for compact electronic assemblies
- Female connector with dual-row configuration
- Available in 10 to 120 positions
- Gold flash plated copper alloy contacts for reliable conductivity
- UL 94 V-0 rated high-temperature thermoplastic housing
Main Specifications:
General Information:
| Product No.: | YC-BB5-SN-XXX-G-3.00-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4.4mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch SMT Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
