0.5mm Pitch Board to Board Connector, Socket, PCB Surface Mount
Introduction:
Optimize your PCB architecture with this high-performance 0.5mm Pitch Board-to-Board Socket. Engineered for high-density electronic applications, this female connector features a robust dual-row design, ensuring reliable vertical connectivity in space-constrained surface mount (SMT) assemblies.
Built for demanding environments, the connector utilizes a durable copper alloy contact material finished with gold flash plating for superior conductivity and corrosion resistance. The high-temperature thermoplastic insulator guarantees structural integrity during reflow soldering processes, supporting an extensive operating temperature range of -40℃ to +85℃. With a UL 94 V-0 flammability rating, this component meets stringent safety standards for industrial and consumer electronics.
Key Features
- Compact Design: 0.5mm pitch ideal for high-density PCB layouts.
- Reliable Connection: Female, dual-row configuration for secure vertical mating.
- Efficient Assembly: Surface mount (SMT) orientation for automated production.
- Enhanced Durability: Copper alloy contacts with high-conductivity gold flash plating.
- Thermal Stability: Robust high-temp thermoplastic housing for harsh conditions.
- Safety Compliance: Certified with UL 94 V-0 flammability rating.

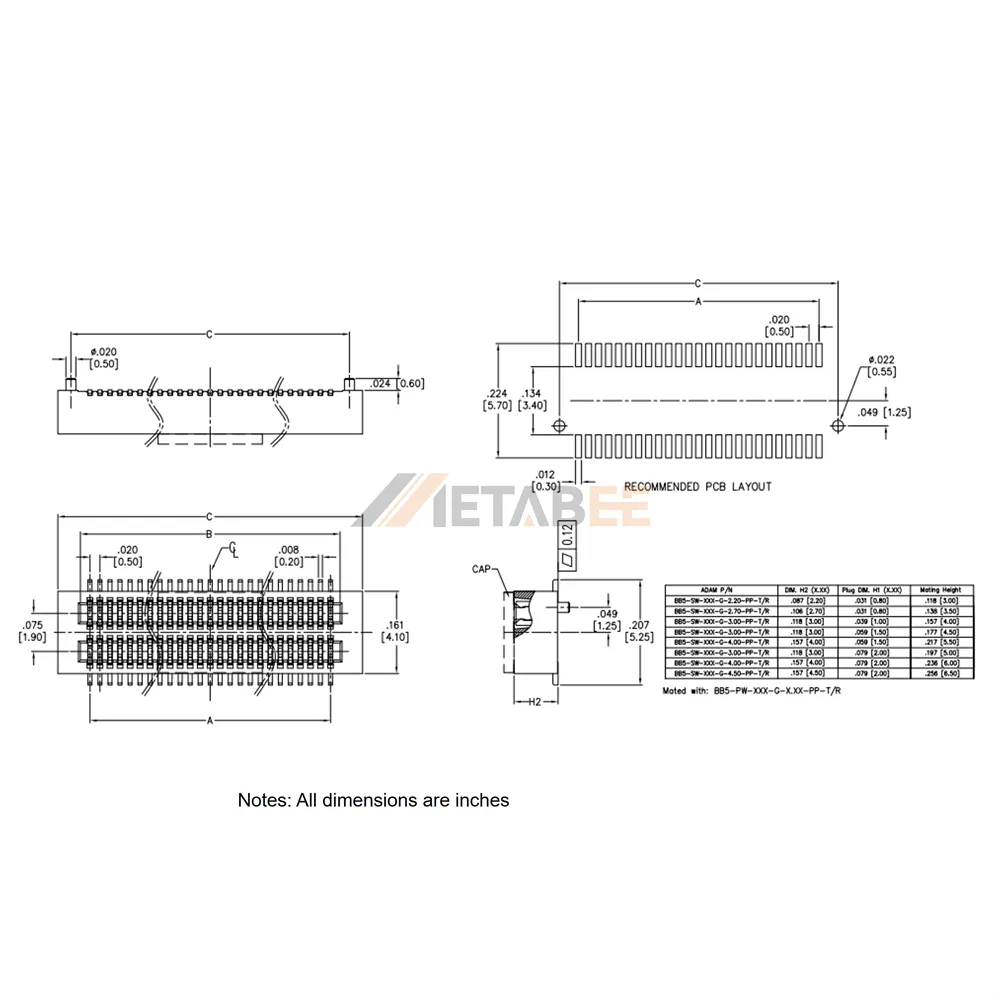

Main Specifications:
General Information:
| Product No.: | YC-BB5-SW-XXX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
