0.5mm Pitch Board to Board Female Connector, SMT
Introduction:
Enhance your electronic assembly with our 0.5mm Pitch Dual Row Vertical Female Board-to-Board Connector. Designed for high-density applications, this SMT connector provides a reliable and space-efficient solution for interconnecting PCBs in compact electronic devices. Its precision-engineered vertical orientation ensures stable connections, while the surface mount technology facilitates efficient automated assembly processes.
Crafted for durability and performance, the connector features high-quality copper alloy contacts with gold flash plating to ensure excellent conductivity and corrosion resistance. The housing is molded from high-temperature thermoplastic with a UL 94 V-0 flammability rating, making it suitable for rigorous reflow soldering environments and demanding industrial conditions. With a versatile range of 10 to 120 positions, this connector adapts seamlessly to diverse design requirements.
Key Features
- 0.5mm Fine Pitch: Optimized for high-density, space-constrained PCB designs.
- Dual Row Configuration: Maximizes contact density in a compact footprint.
- Vertical Orientation: Ideal for mezzanine board-to-board stacking applications.
- Durable Materials: High-temp thermoplastic housing with UL 94 V-0 rating.
- Reliable Contact: Copper alloy with gold flash plating for superior signal integrity.
- Versatile Capacity: Flexible range from 10 to 120 positions to meet project needs.

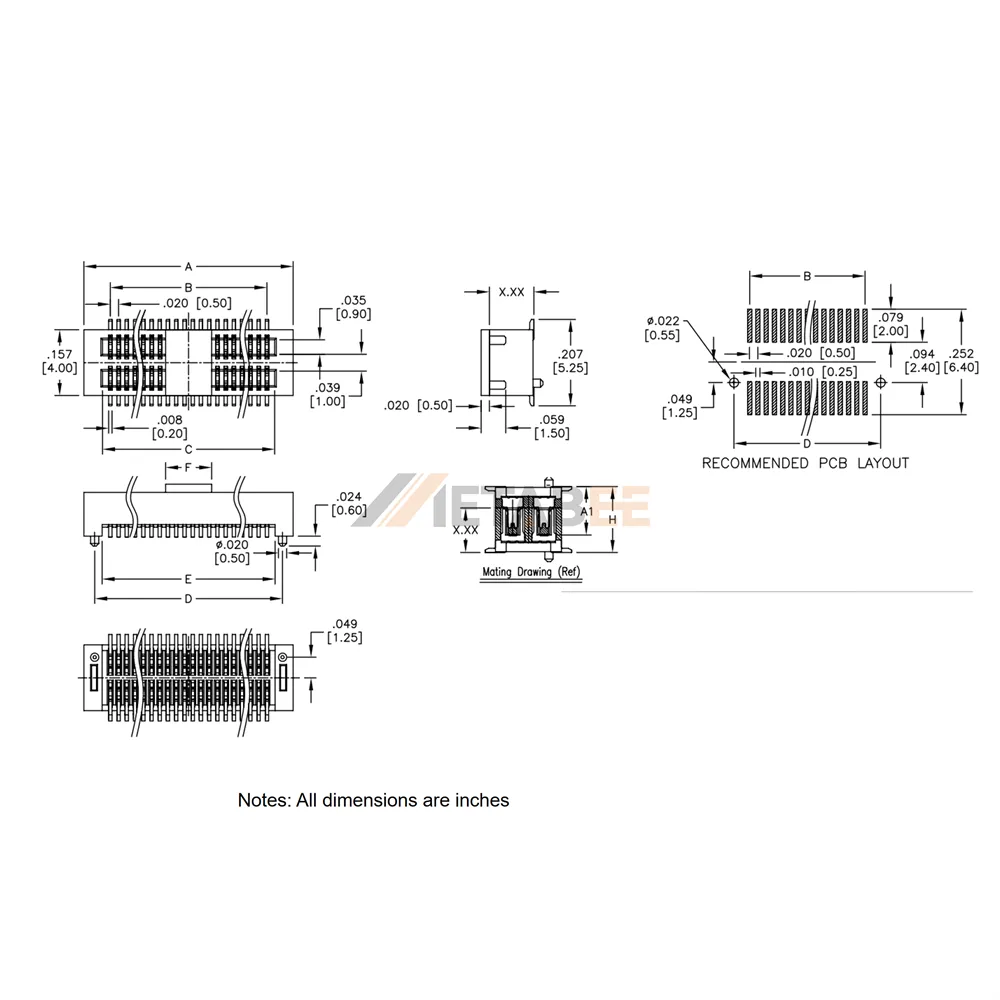

Main Specifications:
General Information:
| Product No.: | YC-BB5-SN-XXX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
