0.5mm Pitch Vertical Board to Board Socket, SMT, 2.2mm Height
Introduction:
This 0.5mm pitch vertical board-to-board socket is engineered for high-density interconnect applications where space optimization is critical. Featuring a compact 2.2mm mated height and a versatile dual-row configuration, this female connector supports a wide range of pin counts from 10 to 120 positions. Designed for reliable surface mount technology (SMT) assembly, it ensures robust mechanical stability and excellent signal integrity for compact electronic devices.
Constructed from high-temperature thermoplastic, the housing meets strict UL 94 V-0 flammability standards, ensuring safety in demanding thermal environments. The contacts are precision-machined from copper alloy and finished with gold flash plating to provide superior conductivity and corrosion resistance. Built to withstand extreme conditions, this connector operates reliably within a wide temperature range of -40°C to +85°C, making it an ideal solution for industrial, consumer, and communication electronics.
Key Features
- Ultra-Compact Design: 0.5mm centerline pitch with a low 2.2mm profile.
- Flexible Configuration: Available in dual-row formats from 10 to 120 positions.
- Reliable SMT Mounting: Designed for efficient vertical surface mount assembly.
- Durable Materials: High-temp thermoplastic housing with UL 94 V-0 rating.
- High Conductivity: Copper alloy contacts with gold flash plating for optimized performance.
- Industrial Grade: Wide operating temperature range of -40°C to +85°C.

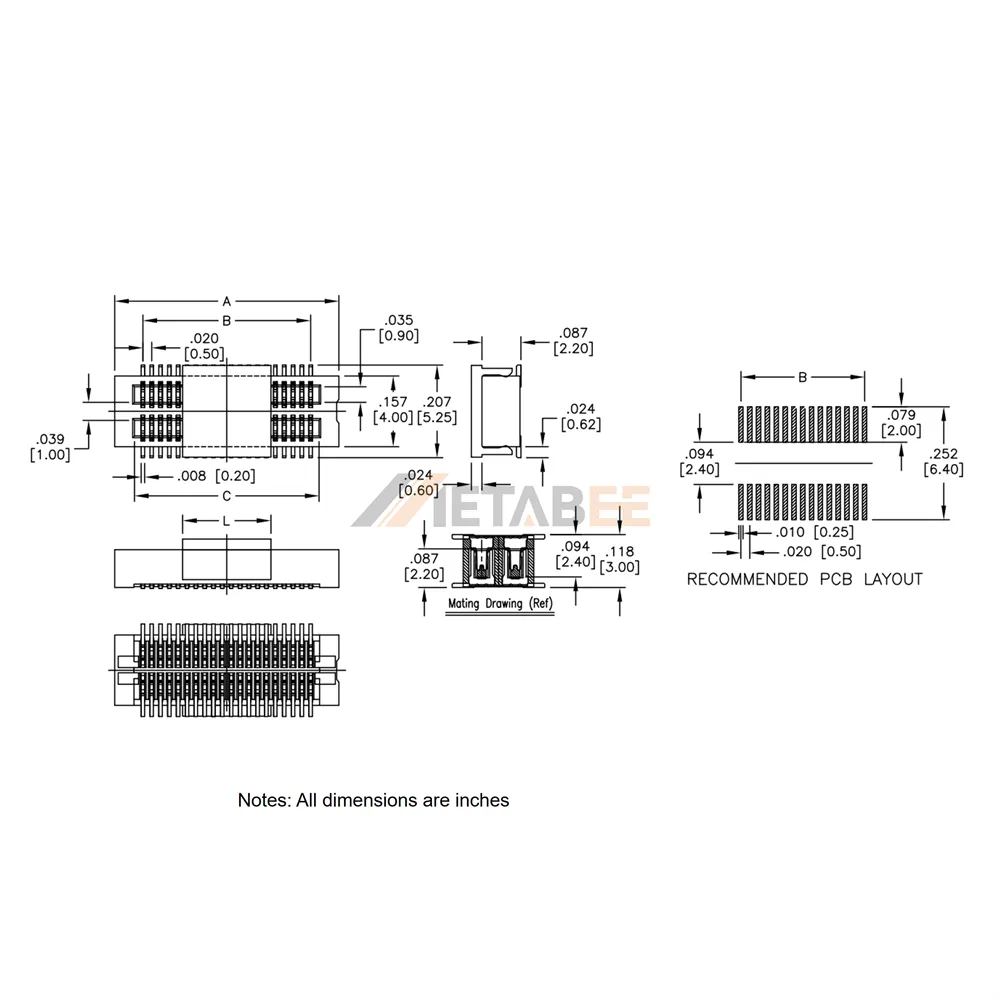

Main Specifications:
General Information:
| Product No.: | YC-BB5-SN-XXX-G-2.20-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 2.2mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Vertical Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
