0.5mm Pitch Electrical Board to Board Connector, Socket, SMT
Introduction:
0.5mm Pitch Electrical Board to Board Connector, Socket, SMT is engineered for high-density PCB interconnect applications requiring compact size, reliable signal transmission, and robust mechanical performance. Designed with a vertical surface-mount configuration, this female socket connector supports dual-row layouts and offers flexible pin configurations from 5 to 50 positions, making it suitable for a wide range of compact electronic devices.
Featuring a precision 0.5mm pitch, this connector ensures stable electrical performance in space-constrained designs. It is constructed with high-quality copper alloy contacts and gold flash plating to enhance conductivity and resist corrosion over long-term operation. The high-temperature thermoplastic insulator provides excellent thermal stability and mechanical strength, ensuring consistent performance under demanding assembly and operating conditions.
With an operating temperature range of -40℃ to +85℃ and UL 94 V-0 flammability rating, this board-to-board connector delivers dependable safety and durability for industrial, consumer, and communication electronics applications.
Key Features
- 0.5mm fine pitch for high-density PCB interconnects
- Female socket, dual-row design with 5–50 positions
- Vertical SMT mounting for compact board layouts
- Copper alloy contacts with gold flash plating for reliable conductivity
- Hi-temp thermoplastic insulator for thermal stability
- Wide operating range (-40℃ to +85℃) with UL 94 V-0 flame rating

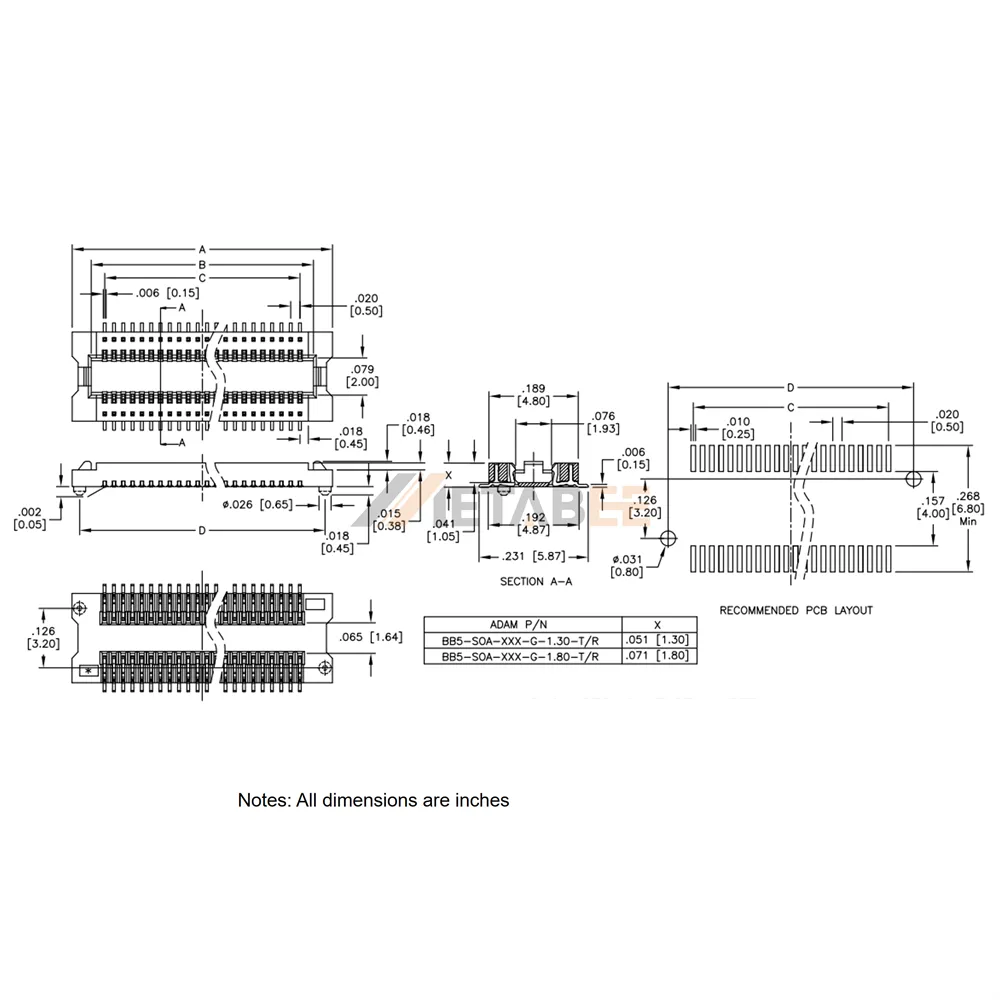

Main Specifications:
General Information:
| Product No.: | YC-BB5-SOA-XXX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 5-50 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Electrical Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
