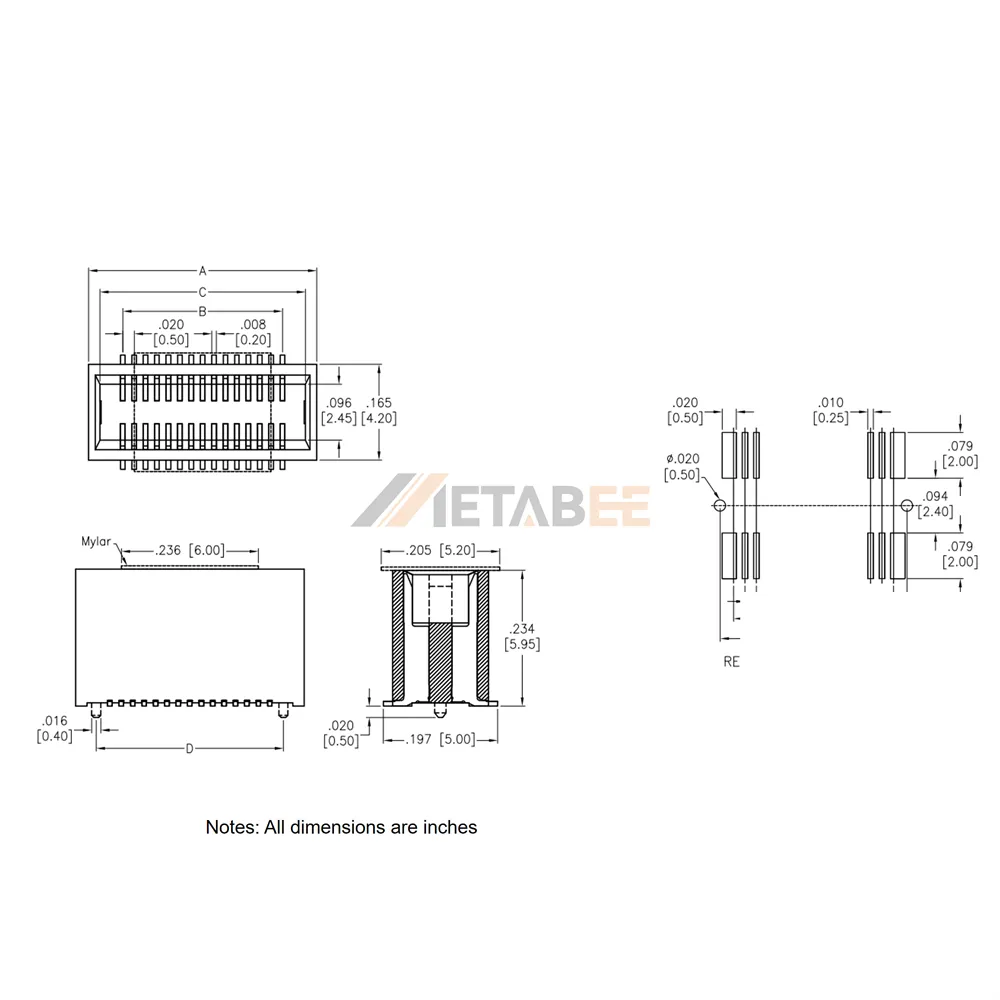

0.5mm Pitch Board to Board Female Connector, 5.95mm Stack Height
Introduction:
The 0.5mm Pitch Board to Board Female Connector is designed for high-density electronic applications that require reliable and space-efficient PCB interconnections. Featuring a dual-row configuration and available in 10 to 120 positions, this surface-mount connector supports vertical board stacking with a 5.95mm stack height, making it ideal for compact and advanced electronic assemblies.
Manufactured with copper alloy contacts and gold flash plating, the connector ensures excellent electrical conductivity, low contact resistance, and dependable mating performance. The high-temperature thermoplastic insulator provides superior mechanical strength and thermal stability, enabling reliable operation during automated SMT assembly and throughout the product lifecycle.
Engineered for durability, this board-to-board connector operates within a temperature range of -40°C to +85°C and meets UL 94 V-0 flammability requirements. It is well suited for consumer electronics, industrial equipment, communication systems, medical devices, and other applications requiring stable signal transmission and efficient board-to-board connectivity.
Key Features
- 0.5mm pitch for high-density PCB designs
- 5.95mm stack height for compact board stacking
- Female dual-row connector configuration
- Available in 10 to 120 positions
- Copper alloy contacts with gold flash plating
- UL 94 V-0 rated hi-temp thermoplastic housing
Main Specifications:
General Information:
| Product No.: | YC-BB5-SM1-XXX-G-595-KT-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.95mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
