0.5mm Pitch High Speed Board to Board Connector, Plug
Introduction:
Optimize your high-performance electronic systems with our 0.5mm Pitch High-Speed Board-to-Board Male Connector. Engineered to meet the rigorous demands of modern signal integrity, this dual-row plug offers exceptional reliability for complex data-intensive applications. With a versatile range of 10 to 160 positions, this vertical SMT connector provides the high-density footprint necessary for today’s sophisticated PCB architectures, ensuring seamless and stable connectivity in compact devices.
Precision-manufactured using high-conductivity copper alloy with gold flash plating, this connector guarantees superior signal transmission and excellent corrosion resistance. The housing is constructed from advanced high-temperature thermoplastic, providing the thermal resilience required for automated surface-mount reflow soldering. Designed for consistency and safety, the connector is rated to UL 94 V-0 for flammability and operates reliably within a wide temperature range of -40℃ to +85℃, making it the perfect choice for industrial, networking, and consumer electronics.
Key Features
- High-Speed Signal Integrity: Optimized design for high-performance data transmission requirements.
- Massive Configuration Options: Available in dual-row layouts from 10 up to 160 positions.
- Premium Contact Material: Copper alloy with gold flash plating for maximum conductivity.
- Thermal Resilience: High-temp thermoplastic housing withstands intensive SMT reflow cycles.
- Industry Safety Standard: UL 94 V-0 flammability rating ensures superior fire resistance.
- Wide Temperature Range: Reliable performance in demanding environments from -40℃ to +85℃.

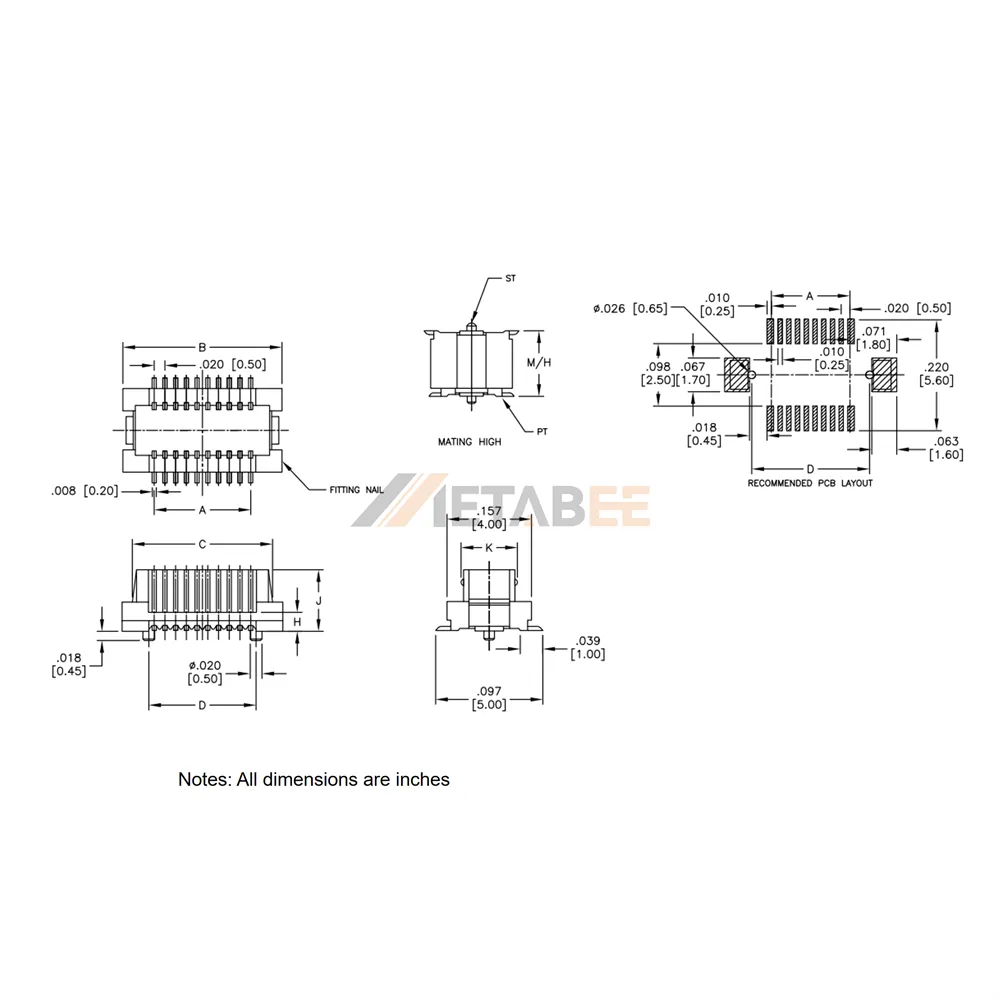

Main Specifications:
General Information:
| Product No.: | YC-BB5-PT-XXX-SG-XX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-160 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch High Speed Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
- Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of board to board connectors.
