0.5mm Pitch High Density Board to Board Plug, SMT
Introduction:
Elevate your interconnect performance with our 0.5mm Pitch High Density Board-to-Board Plug. Specifically designed for space-constrained electronics, this male connector features a robust dual-row configuration and a vertical mounting orientation, making it an ideal solution for compact PCB assemblies. Its surface-mount (SMT) technology ensures seamless integration into modern automated manufacturing lines, providing reliable mechanical and electrical connections for high-density applications.
Built for longevity, the connector utilizes high-conductivity copper alloy contacts finished with gold flash plating to maximize signal integrity and oxidation resistance. The housing is molded from high-temperature thermoplastic, ensuring excellent thermal stability during reflow soldering while maintaining a UL 94 V-0 flammability rating for superior safety. Engineered for resilience, this component performs consistently across a broad operating temperature range of -40℃ to +85℃, guaranteeing reliable operation in industrial and consumer-grade environments.
Key Features
- High-Density Design: 0.5mm pitch dual-row layout optimizes space on dense circuit boards.
- Reliable Connectivity: Copper alloy contacts with gold flash plating ensure optimal signal transmission.
- Thermal Resilience: High-temp thermoplastic housing withstands intensive SMT reflow processes.
- Versatile SMT Mounting: Vertical, surface-mount design for efficient, automated assembly.
- Safety Compliance: UL 94 V-0 flammability rating provides high-level fire resistance.
- Broad Temperature Range: Stable performance in environments ranging from -40℃ to +85℃.

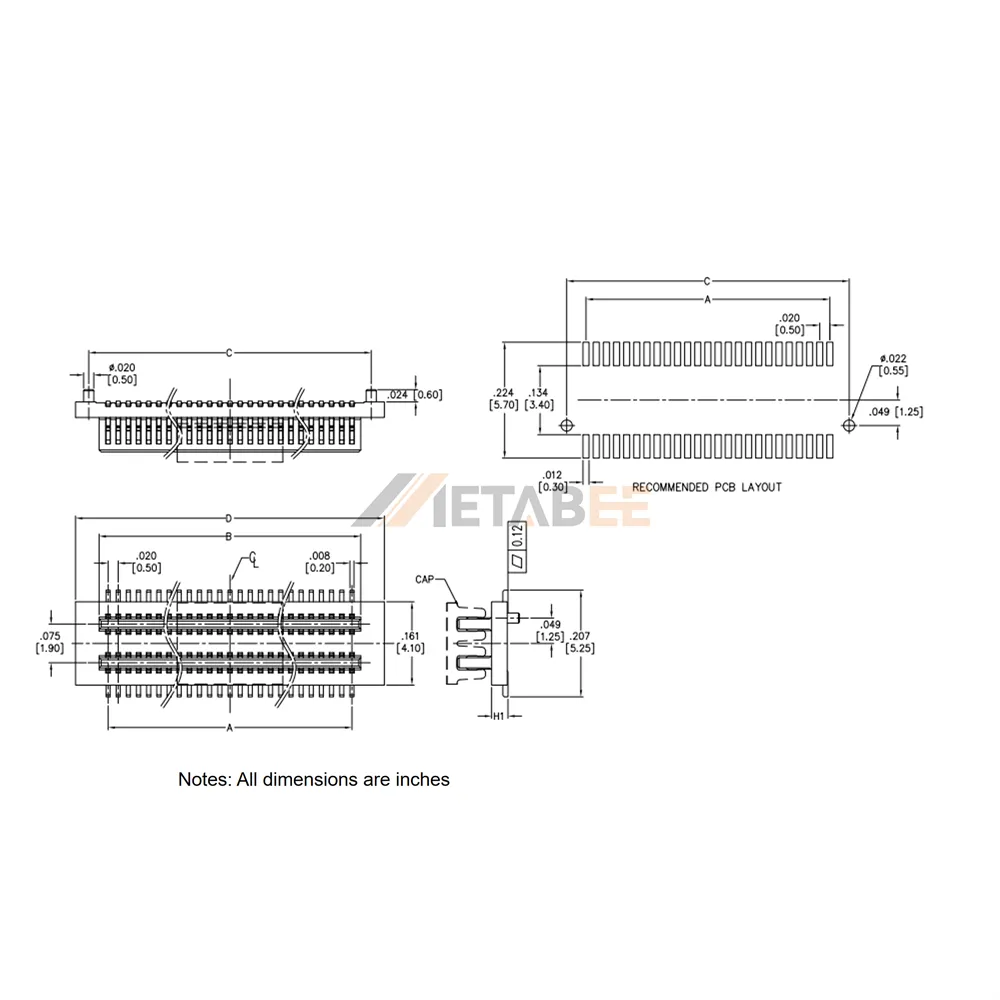

Main Specifications:
General Information:
| Product No.: | YC-BB5-PW-XXX-G-XXX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch High Density Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
