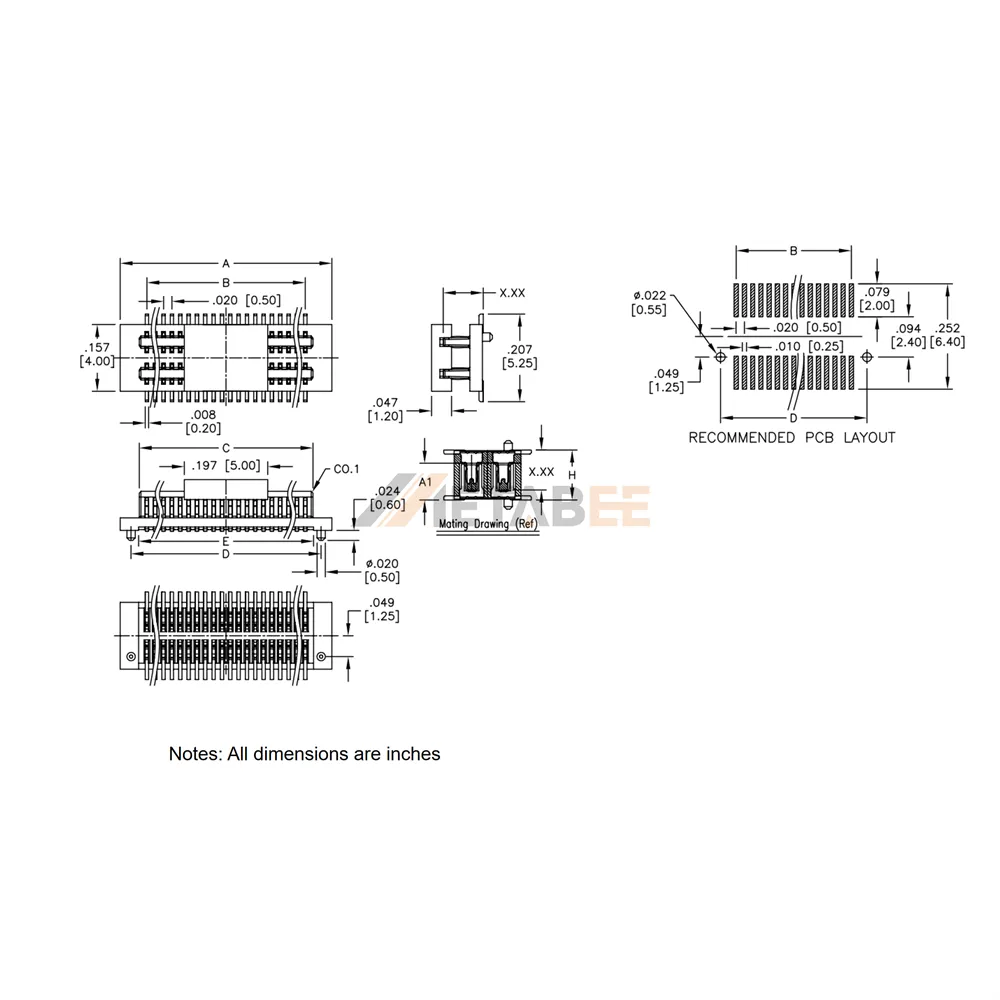

0.5mm Pitch Board to Board Stackable Connector
Introduction:
Designed for modular PCB stacking applications, this 0.5mm pitch board-to-board stackable male connector offers a versatile dual-row configuration with 10 to 120 positions. The vertical SMT mounting profile enables efficient parallel board interconnection, while the stackable design allows flexible spacing adjustments to accommodate varying system heights. Gold-flashed copper alloy contacts ensure low and stable contact resistance across repeated mating cycles.
Constructed with high-temperature thermoplastic insulator rated UL 94 V-0, the connector withstands lead-free reflow soldering without deformation. The wide operating temperature range from -40°C to +85°C guarantees reliable performance in industrial and consumer environments. Precision alignment features reduce insertion force while maintaining secure engagement, making this interconnect solution ideal for telecommunications, medical devices, and compact control systems where board spacing optimization is critical.
Key Features
- Stackable vertical design for flexible PCB spacing
- 0.5mm fine pitch with 10–120 positions (dual row)
- SMT termination for automated high-volume assembly
- Gold-flashed copper alloy contacts for signal integrity
- UL 94 V-0 high-temp thermoplastic insulator
- -40°C to +85°C wide operating temperature range
Main Specifications:
General Information:
| Product No.: | YC-BB5-PN-XXX-G-XXX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Stackable Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
