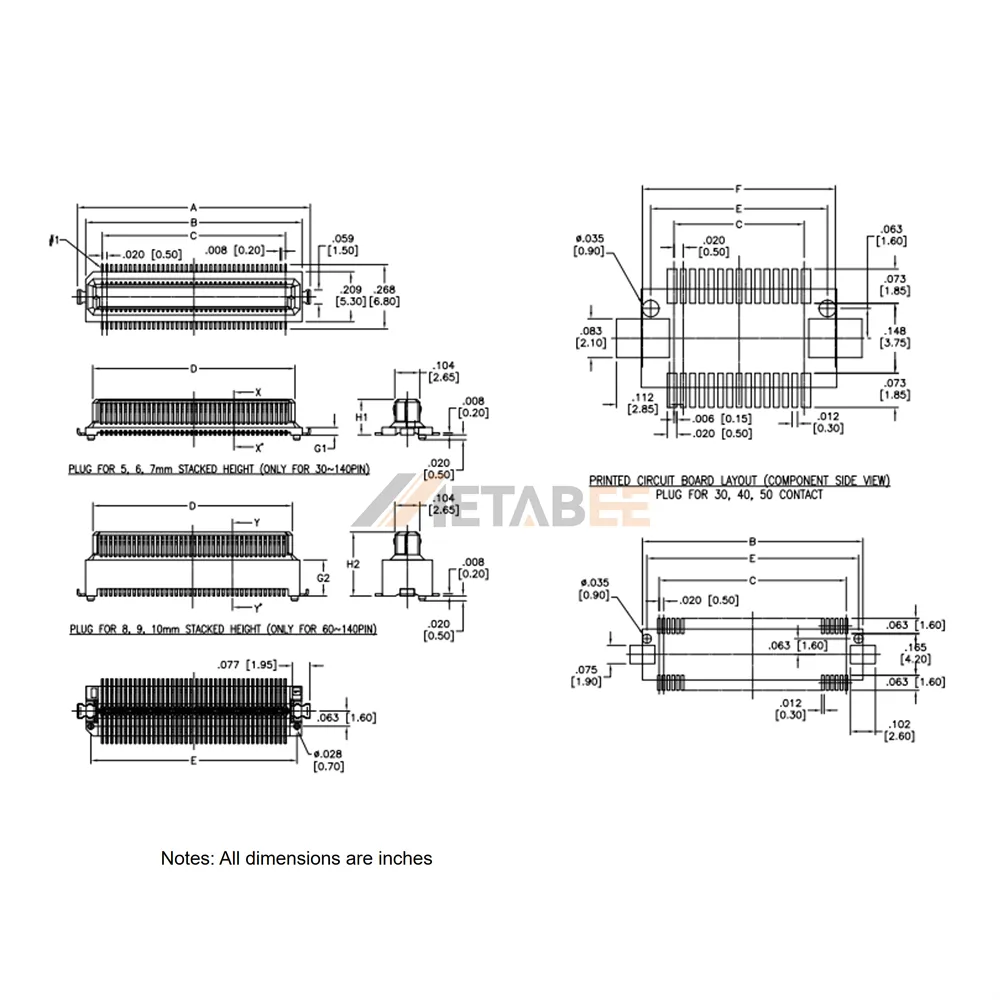

0.5mm Pitch Board to Board SMT Male Connector, Dual Row, Vertical
Introduction:
The 0.5mm Pitch Board to Board SMT Male Connector is engineered for high-density PCB interconnection applications where reliable signal transmission and space efficiency are essential. Featuring a dual-row configuration and vertical orientation, this connector is available in 20 to 100 positions, providing flexibility for a wide range of industrial, consumer electronics, communication, and embedded system designs.
Manufactured with copper alloy contacts and gold flash plating, the connector offers excellent electrical conductivity, low contact resistance, and enhanced corrosion resistance. Its high-temperature thermoplastic insulator ensures outstanding thermal stability and mechanical strength, making it suitable for automated surface mount assembly processes and demanding operating environments.
Designed for long-term reliability, the connector operates within a temperature range of -40°C to +85°C and complies with the UL 94 V-0 flammability standard for improved safety. The compact 0.5mm pitch design enables efficient board-to-board connections while maximizing PCB layout space.
Key Features
- Fine 0.5mm pitch for compact, high-density applications
- Male connector with vertical mating orientation
- Dual-row structure with 20 to 100 positions available
- Surface mount design for automated SMT assembly
- Copper alloy contacts with gold flash plating for stable performance
- High-temperature thermoplastic housing rated UL 94 V-0
Main Specifications:
General Information:
| Product No.: | YC-BB5-PM-XXX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 30-140 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board SMT Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
