0.5mm Pitch Board to Board Connector, Plug, SMT, Vertical
Introduction:
Enhance the structural integrity and performance of your electronic assemblies with our 0.5mm pitch vertical board-to-board male connector. Designed for high-density, dual-row PCB applications, this plug features a reliable surface mount (SMT) mounting type, ensuring efficient automated assembly and strong solder joint reliability. Its vertical orientation is specifically engineered to provide stable, space-efficient interconnections in complex systems, making it an essential component for demanding industrial and consumer electronic hardware.
Crafted with premium materials, this connector utilizes high-conductivity copper alloy contacts with gold flash plating to ensure optimal signal transmission and superior resistance to oxidation. The housing is precision-molded from high-temperature thermoplastic that meets UL 94 V-0 flammability ratings, providing excellent thermal stability and fire safety. With a versatile range of 20 to 90 positions, this robust connector is built to perform consistently in diverse environments, maintaining full operational integrity within a temperature range of -40℃ to +85℃.
Key Features
- Fine Pitch Technology: 0.5mm centerline for high-density circuit routing.
- Flexible Capacity: Dual-row configuration with 20 to 90 available positions.
- Vertical Stability: Optimized for vertical SMT board-to-board mating.
- Premium Conductivity: Copper alloy contacts with Gold flash finish.
- Thermal Durability: High-temp thermoplastic housing with UL 94 V-0 rating.
- Wide Operating Range: Reliable performance from -40℃ to +85℃.

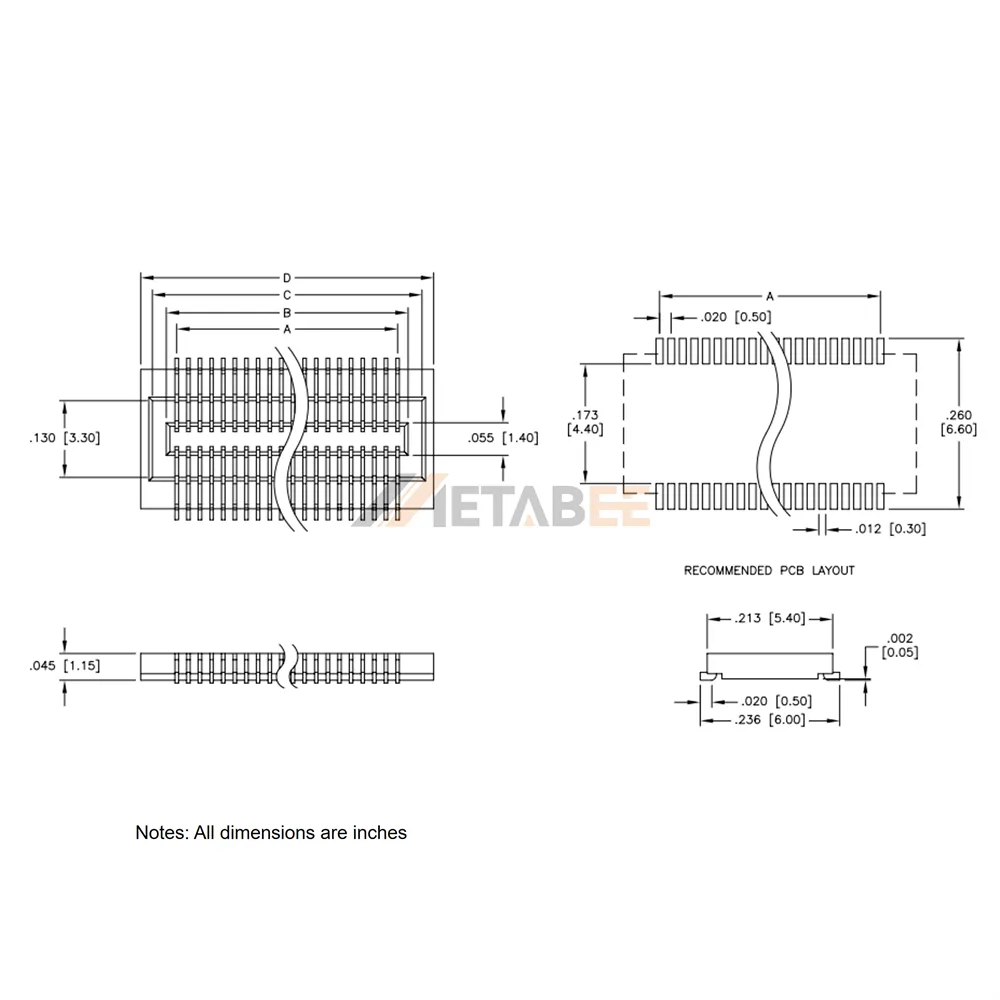

Main Specifications:
General Information:
| Product No.: | YC-BB5-P-XX | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-90 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5mm Pitch Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
