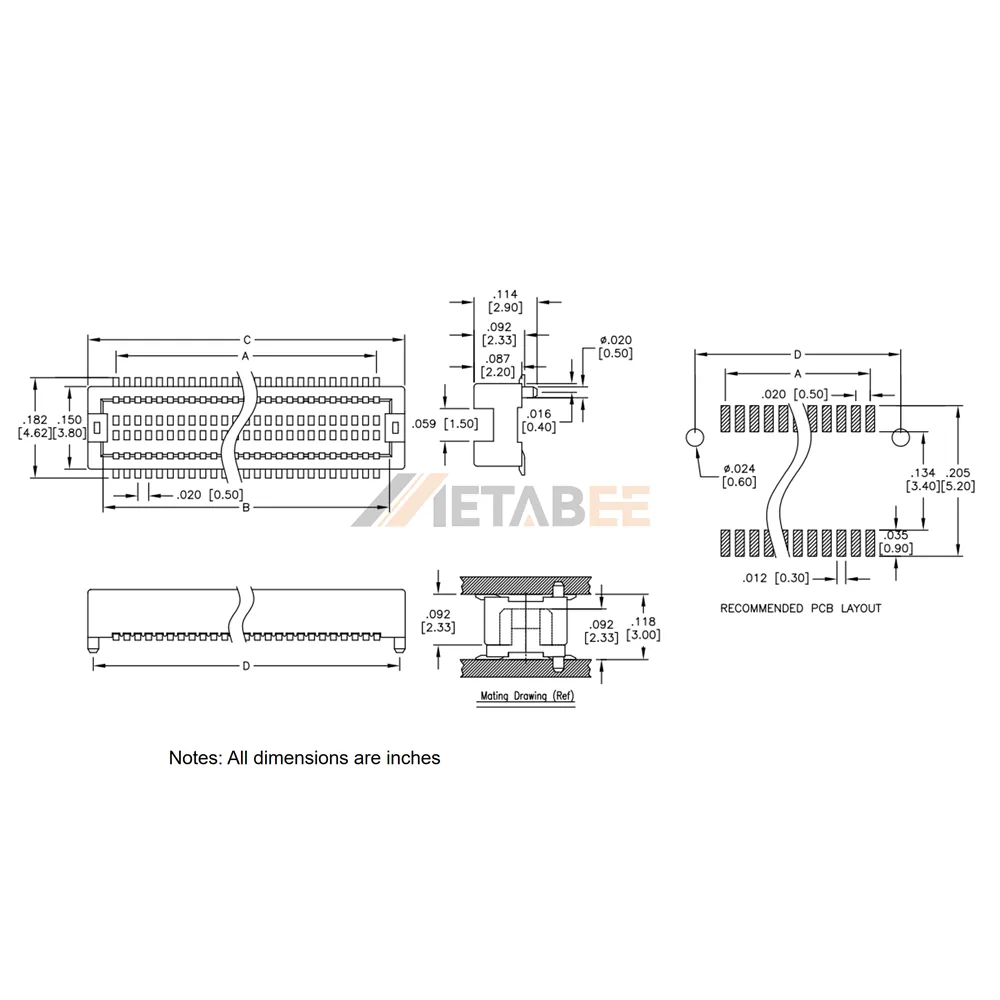

0.5 mm Pitch SMT Board to Board Plug, Dual Row, Vertical
Introduction:
This 0.5 mm pitch SMT male connector is engineered for high-density PCB applications where space is at a premium. Featuring a dual-row configuration and a vertical mounting orientation, this plug is designed for robust, perpendicular board-to-board stacking. With options ranging from 10 to 80 positions, it offers the versatility required for complex electronic designs in telecommunications, industrial equipment, and consumer electronics.
Built for reliability and signal integrity, the connector utilizes high-temperature thermoplastic insulators and copper alloy contacts finished with gold flash plating. It is rated for an operating temperature range of -40°C to +85°C, ensuring consistent performance in demanding environments. Furthermore, the connector adheres to strict safety standards, carrying a UL 94 V-0 flammability rating for superior fire resistance and peace of mind in high-heat operations.
Key Features
- Compact Design: 0.5 mm fine pitch ideal for space-constrained PCB layouts.
- Flexible Configurations: Available in dual-row formats from 10 to 80 positions.
- Reliable Material: Durable copper alloy contacts with gold flash plating for excellent conductivity.
- High-Temp Ready: Features high-temperature thermoplastic housing for SMT soldering.
- Robust Thermal Performance: Operates reliably between -40°C and +85°C.
- Safety Compliance: Meets UL 94 V-0 standards for flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-BB5-P3-XX-G | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-80 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5 mm Pitch SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
