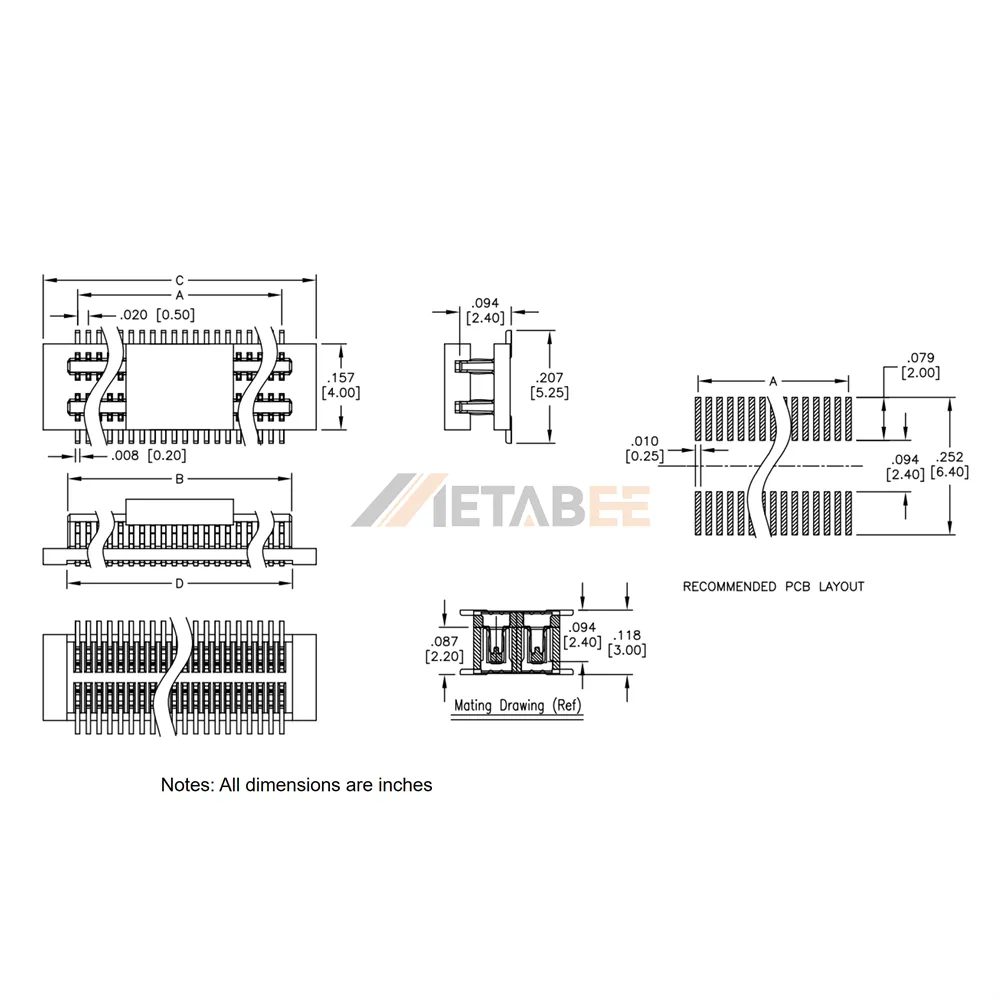

0.5 mm Pitch SMT Board to Board Connector, Plug, Vertical
Introduction:
The 0.5 mm Pitch SMT Board to Board Connector, Plug, Vertical is engineered for compact and high-density PCB interconnection applications. Featuring a male plug design with a vertical surface mount configuration, this connector adopts a dual-row structure and is available in 10 to 100 positions, providing flexible solutions for various electronic systems.
Built with copper alloy contacts and gold flash plating, the connector offers excellent electrical conductivity and reliable signal transmission. The high-temperature thermoplastic insulator delivers superior mechanical strength and thermal stability. Designed to operate in temperatures ranging from -40℃ to +85℃, it also complies with the UL 94 V-0 flammability standard for enhanced safety and reliability.
Its fine 0.5 mm pitch and SMT construction make it ideal for automated assembly and space-constrained devices, including industrial controls, communication equipment, consumer electronics, and embedded systems requiring dependable board-to-board connections.
Key Features
- 0.5 mm pitch for high-density PCB designs.
- Male plug with vertical surface mount configuration.
- Dual-row design with 10 to 100 positions available.
- Copper alloy contacts with gold flash plating.
- Hi-temp thermoplastic insulator for improved durability.
- Operating temperature from -40℃ to +85℃ and UL 94 V-0 rated.
Main Specifications:
General Information:
| Product No.: | YC-BB5-PD-XX-G-NP | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5 mm Pitch SMT Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
