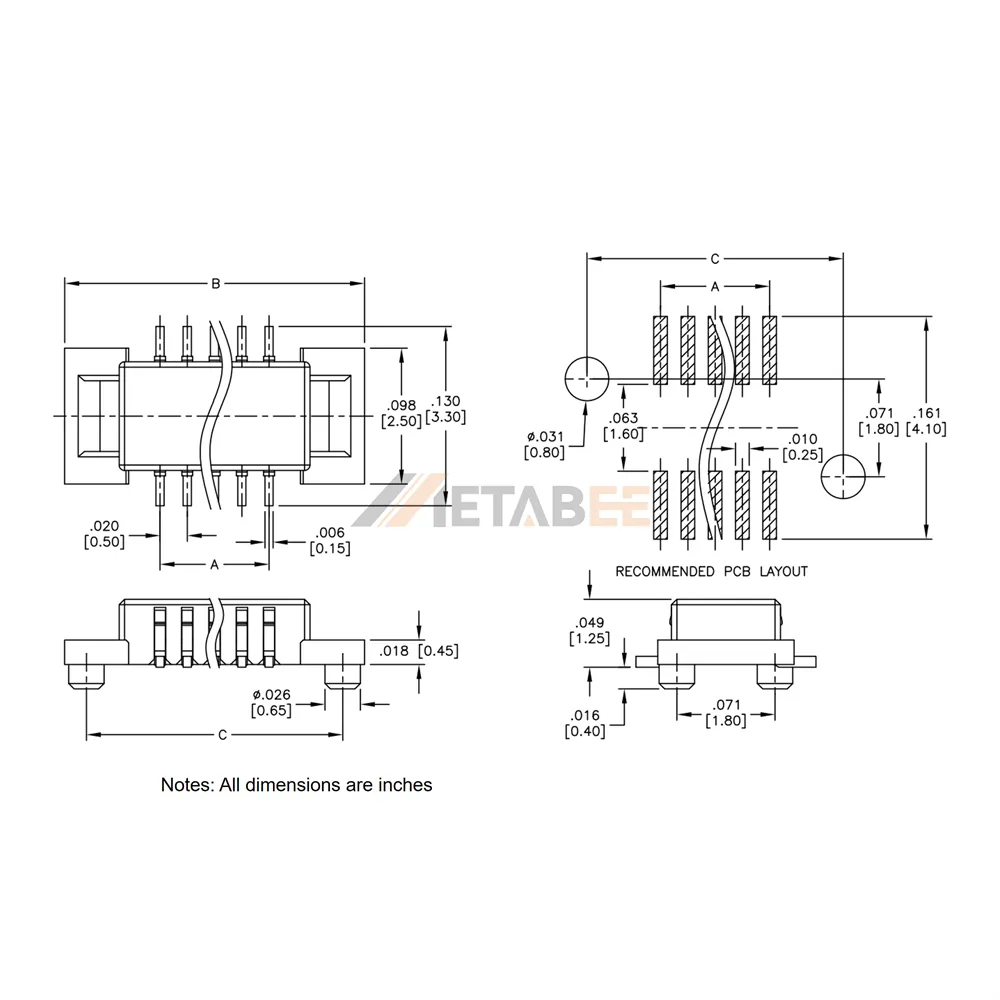

0.5 mm Pitch Board to Board Connector, Plug, Dual Row, SMT
Introduction:
Optimize your high-density PCB designs with this 0.5 mm pitch dual-row male connector. Engineered for precision and efficiency, this vertical SMT plug is the ideal solution for compact board-to-board interconnect systems. With a versatile range of 10 to 60 positions, it provides the flexibility needed for sophisticated electronic assemblies in industrial, telecommunications, and consumer device applications.
Constructed for durability, the connector features high-quality copper alloy contacts with gold flash plating to ensure reliable signal transmission. The housing is molded from high-temperature thermoplastic, making it perfectly suited for standard surface mount reflow soldering processes. With a robust operating temperature range of -40°C to +85°C and a UL 94 V-0 flammability rating, this component delivers the safety and performance stability required for demanding technical environments.
Key Features
- Fine Pitch: 0.5 mm centerlines for high-density, space-saving designs.
- Versatile Pin Count: Available in dual-row configurations from 10 to 60 positions.
- Reliable Contact Interface: Copper alloy contacts with gold flash for excellent conductivity.
- Reflow Compatible: High-temperature thermoplastic insulator designed for SMT assembly.
- Wide Temperature Range: Stable performance from -40°C to +85°C.
- Safety Rated: UL 94 V-0 flammability classification for fire protection.
Main Specifications:
General Information:
| Product No.: | YC-BB5-PE-XX-G-125-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.5mm (0.0197″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-60 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 1.25mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.5 mm Pitch Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
