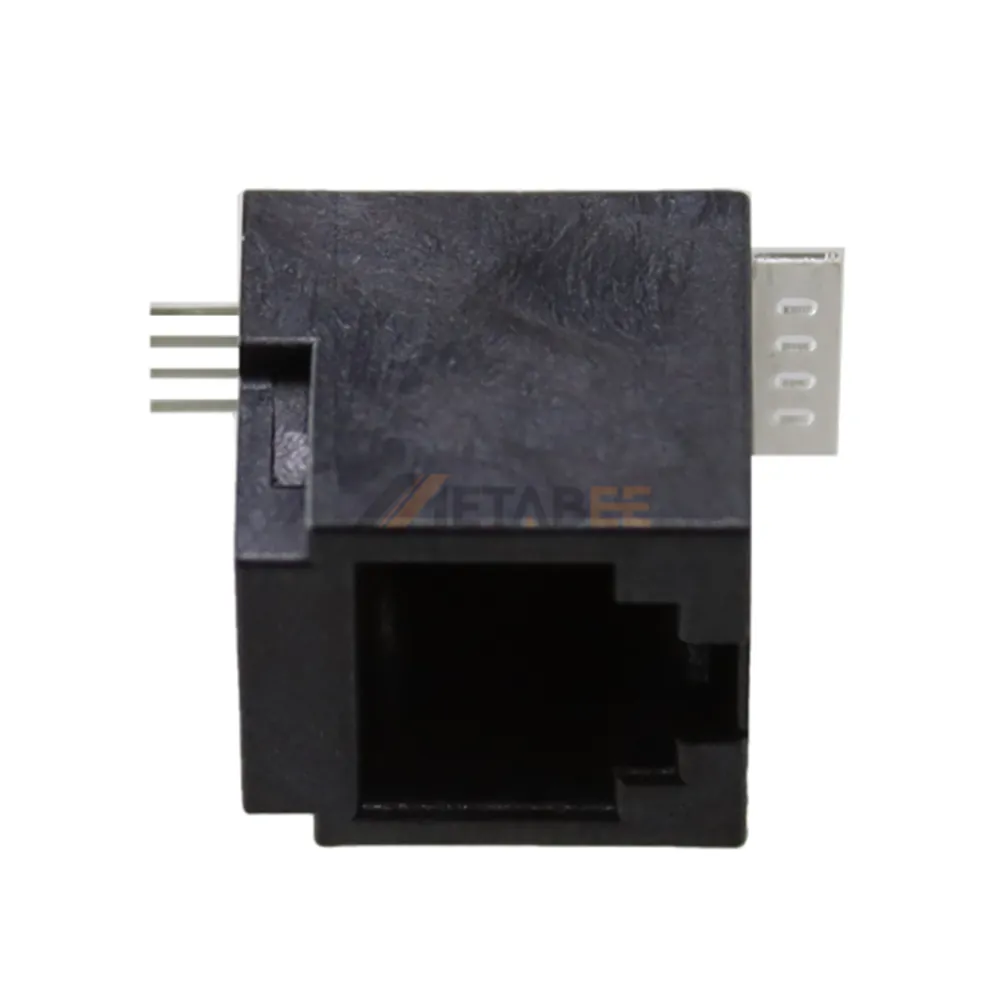

Vertical RJ11 Surface Mount Jack Telephone Connector, 6P4C, 1 Port, Unshielded, Tab-Up, No LED
Introduction:
This is a single port vertical RJ11 surface mount jack telephone connector designed for compact printed circuit board layouts. It is manufactured from hi-temp thermoplastic to survive intense industrial reflow soldering processes without any physical deformation. The Phosphor Bronze contacts are finished with Gold plating to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Up configuration, this unshielded unit effectively saves board space while handling extreme temperatures from -40°C to +125°C. Technicians utilize this reliable modular interface for industrial automation systems and telecommunication gear requiring secure vertical SMT connectivity.
Key Features
- Vertical SMT Design: Saves valuable board space for compact layouts.
- Industrial Temperature Range: Performs reliably from -40°C up to +125°C.
- Hi-Temp Material: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- 6P4C RJ11 Interface: Provides standard modular connectivity for voice systems.
Main Specifications:
General Information:
| Product No.: | MTJ-64HX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

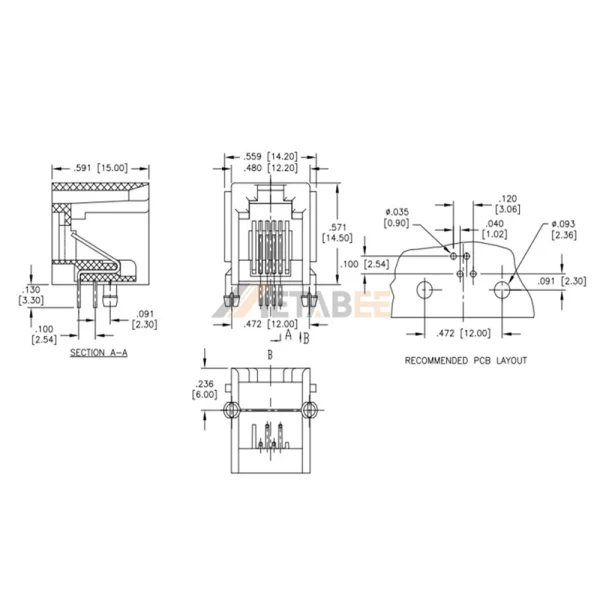

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
