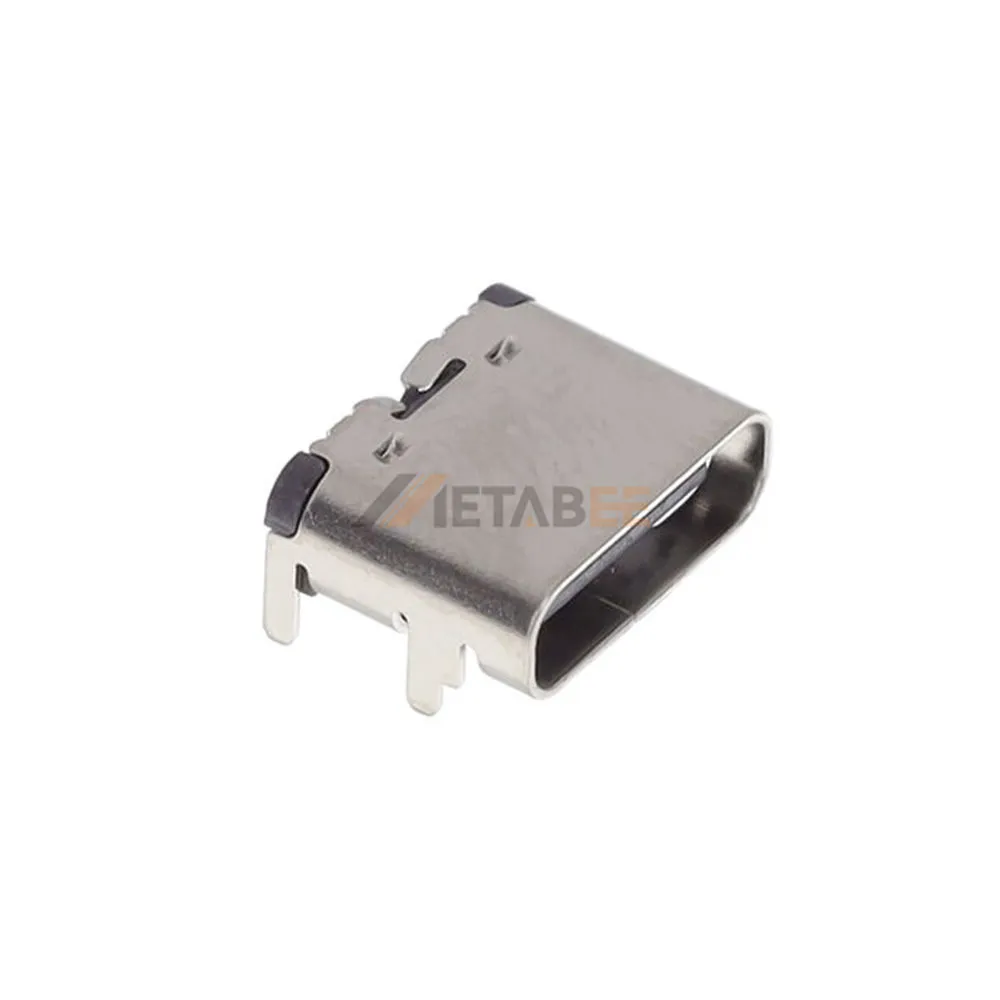

USB-C 2.0 Female Receptacle, 24 Pin, 480 Mbps, PCB Mount, R/A
Introduction:
Engineered for seamless integration, this USB-C 2.0 Female Receptacle features a precision-molded 24-pin configuration designed for high-speed data transmission and reliable power delivery. Supporting bandwidths up to 480 Mbps, this single-port connector is optimized for Right Angle (R/A) PCB mounting, providing a space-saving solution for modern electronic assemblies without compromising mechanical stability.
This connector is built with industrial-grade materials to ensure long-term durability. The nickel-plated stainless steel shell offers superior corrosion resistance and EMI shielding, while the gold-plated copper alloy contacts facilitate optimal conductivity. Rated for 3A and 20V DC, it meets rigorous safety standards with a UL94V-0 flame retardancy rating. Operating effectively between -40°C and 85°C, it is an ideal component for both consumer electronics and demanding industrial applications.
Key Features
- High-Speed Data: Fully compatible with USB 2.0 standards for rates up to 480 Mbps.
- Robust Power Delivery: Rated for 3A current and 20V DC for efficient charging.
- Right-Angle Design: Precision PCB Mount orientation for low-profile hardware layouts.
- Premium Materials: Nickel-plated stainless steel shell ensures maximum mechanical life.
- Gold-Plated Contacts: Copper alloy contacts with gold plating for oxidation-free connectivity.
- Environmental Resilience: Reliable performance from -40°C to 85°C with UL94V-0 safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS16A-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(6+18 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 2.0 Female Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
