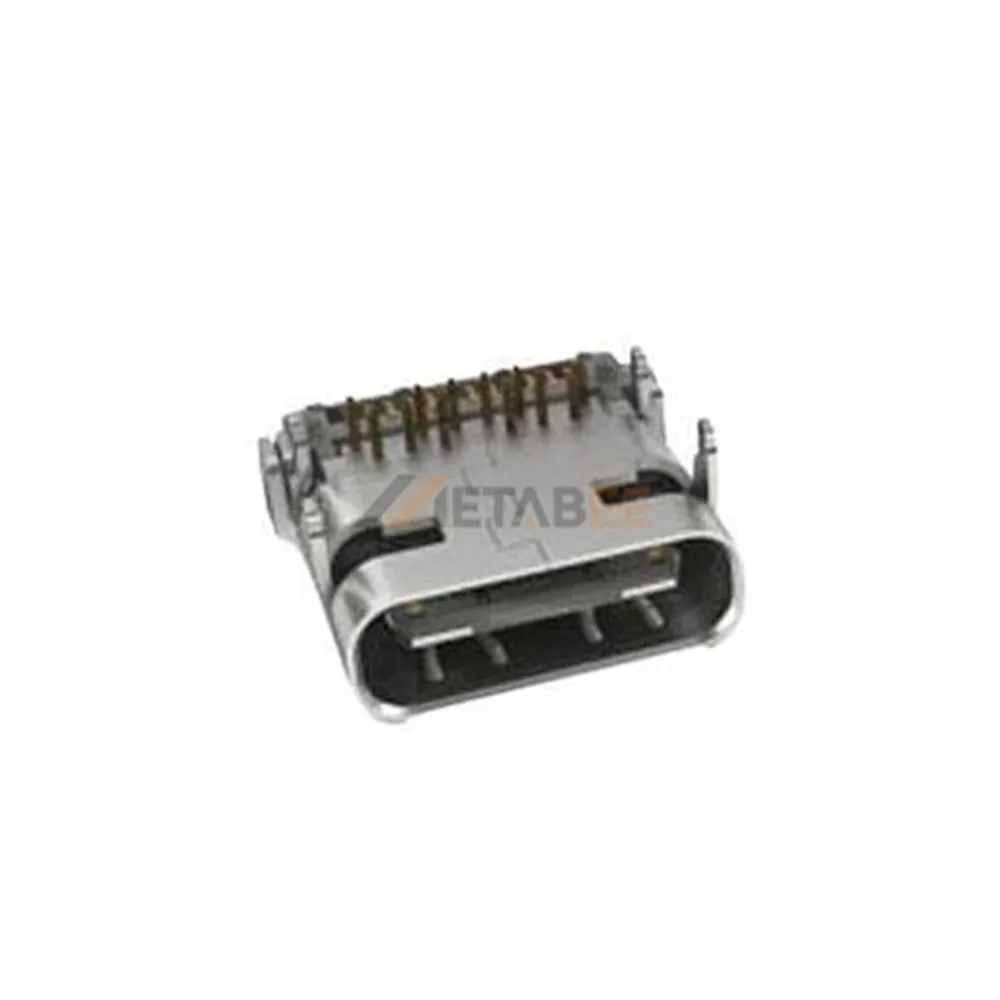

USB-C 2.0 Female, 24 Pin, 480 Mbps, PCB Surface Mount, Vertical
Introduction:
USB-C 2.0 is a high-reliability Type-C receptacle designed for compact PCB integration and stable USB 2.0 performance. Featuring a single-port, 24-pin configuration, this connector supports data transmission rates up to 480 Mbps while delivering dependable power transfer. The vertical structure, combined with PCB surface mount installation,n ensures secure board-level attachment and optimized space utilization in consumer electronics, industrial control systems, and embedded devices.
The connector housing is manufactured from stainless steel with nickel plating, providing excellent mechanical strength, corrosion resistance, and shielding performance. Copper alloy contacts with gold plating ensure low contact resistance, enhanced conductivity, and extended mating durability. Rated at 3A and 20V, this USB-C 2.0 receptacle offers consistent electrical performance for power and signal applications.
Compliant with UL94V-0 flame-retardant standards and operating within a wide temperature range of -40°C to +85°C, this connector guarantees long-term reliability under demanding environmental conditions.
Key Features
- USB-C 2.0 female (receptacle), single port
- 24-pin design, supports 480 Mbps data rate
- PCB surface mount, vertical orientation
- Stainless steel shell, nickel-plated
- Gold-plated copper alloy contacts
- Rated 3A, 20V; UL94V-0; operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-VT-CS13-SMT-BK-PP-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin (6+18 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 2.0 Female, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
