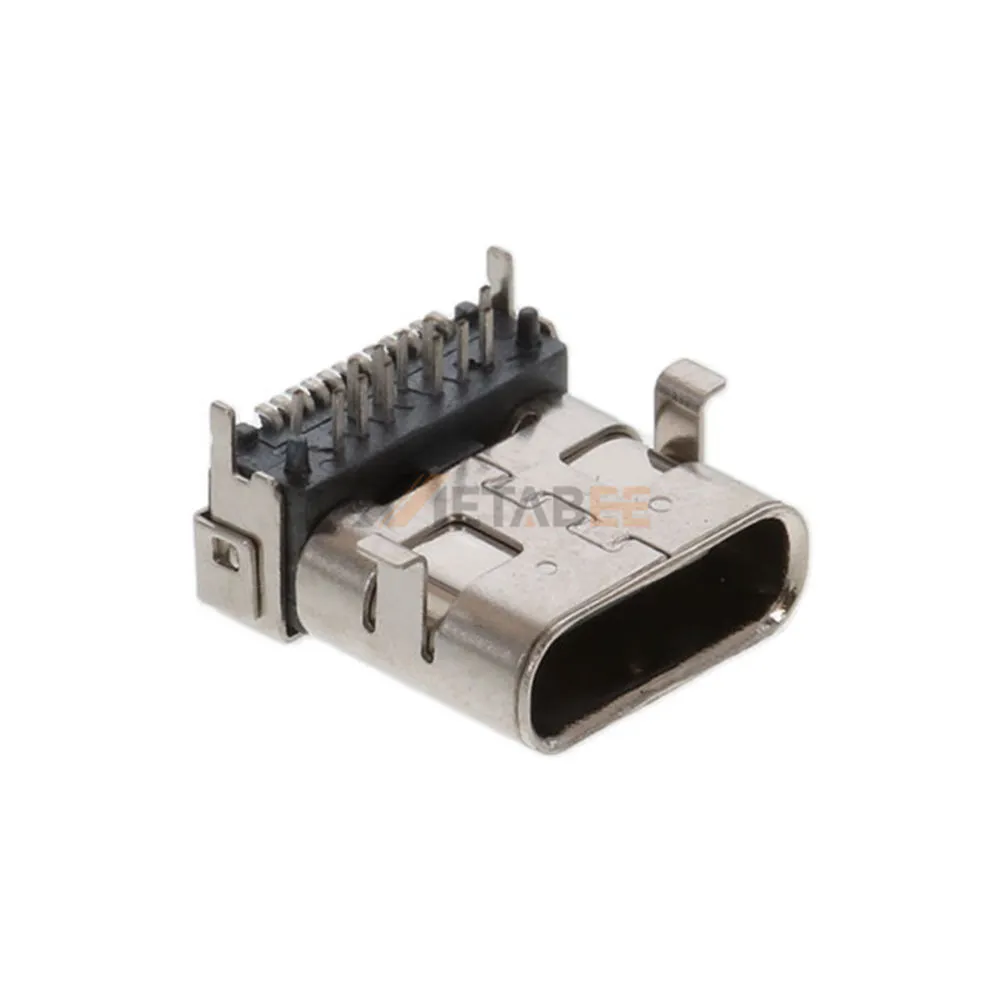

USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, PCB Mount, Right Angle
Introduction:
USB 2.0 Type C is designed for stable data transmission and dependable power connectivity in compact electronic systems. Featuring a single-port USB Type-C interface with a full 24-pin configuration, this receptacle supports data transfer speeds up to 480 Mbps in accordance with USB 2.0 standards. The right-angle PCB mount design enables efficient board layout, improved space utilization, and secure mechanical stability in high-density assemblies.
Constructed with a stainless steel shell and nickel-plated finish, the connector provides excellent structural strength, corrosion resistance, and effective EMI shielding. Copper alloy contacts with gold plating ensure low contact resistance, enhanced conductivity, and long mating durability. Rated at 3A and 30VDC, this Type-C receptacle delivers consistent electrical performance for consumer electronics, industrial control systems, and embedded devices.
Compliant with UL94V-0 flame-retardant standards, the connector operates reliably within a wide temperature range of -40°C to +85°C. It is a cost-effective and durable interconnect solution for USB 2.0 applications requiring mechanical robustness and long-term reliability.
Key Features
- USB 2.0 Type-C receptacle, single-port configuration
- 24-pin interface supporting up to 480 Mbps
- Right-angle PCB mount design
- Stainless steel shell with nickel plating
- Gold-plated copper alloy contacts
- Rated 3A, 30VDC, UL94V-0, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-TSMT-CS33-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 30VDC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
