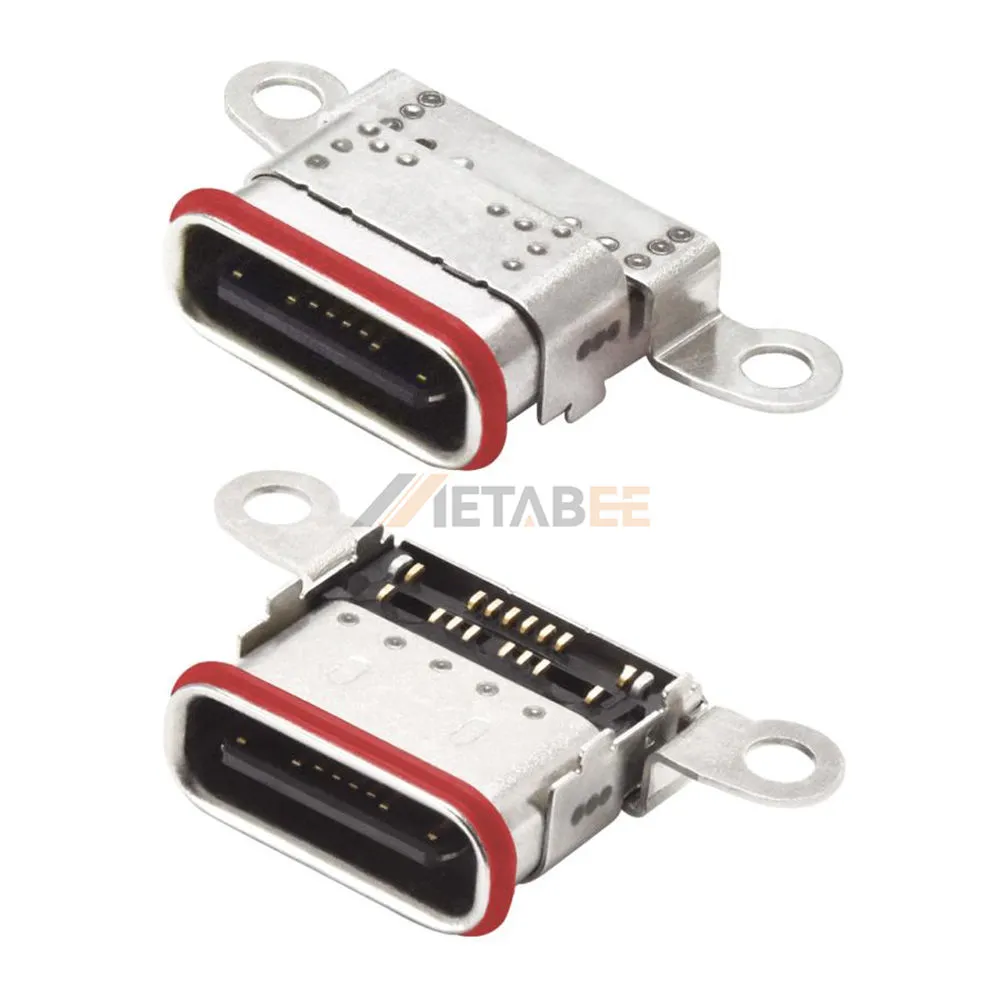

USB-C 2.0 Female Jack, 24 Pin, 480 Mbps, PCB, SMT, R/A, Waterproof
Introduction:
Engineered for superior reliability in demanding environments, this Waterproof USB-C 2.0 Female Jack is the ultimate solution for robust PCB connectivity. Featuring a 24-pin configuration and a Right Angle (R/A) mounting orientation, it is optimized for space-constrained designs that require a low profile without sacrificing speed. Supporting data transfer rates up to 480 Mbps, this single-port receptacle ensures seamless performance for both high-speed data and high-power delivery applications.
The connector is built to industrial standards, featuring a nickel-plated stainless steel shell for maximum corrosion resistance and structural integrity. The internal copper alloy contacts are finished with gold plating to ensure exceptional conductivity and a high mating cycle life. Rated for a powerful 5A current and meeting UL94V-0 flame retardancy standards, this component maintains stable operation across a broad temperature range of -40°C to 85°C, making it ideal for outdoor electronics, medical devices, and industrial peripherals.
Key Features
- High-Speed Transfer: Fully compliant with USB 2.0 standards for data rates up to 480 Mbps.
- IP-Rated Waterproofing: Precision-engineered seal to protect internal circuits from moisture and dust.
- Superior Power Delivery: High-capacity design supporting up to 5A current for rapid charging.
- Premium Material Build: Nickel-plated stainless steel shell offers high durability and EMI shielding.
- Optimized Conductivity: Gold-plated copper alloy contacts minimize signal loss and oxidation.
- Extreme Resilience: Operates reliably from -40°C to 85°C with a UL94V-0 safety rating.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS68-SMT-WP-BK-30-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB-C 2.0 Female Jack, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
