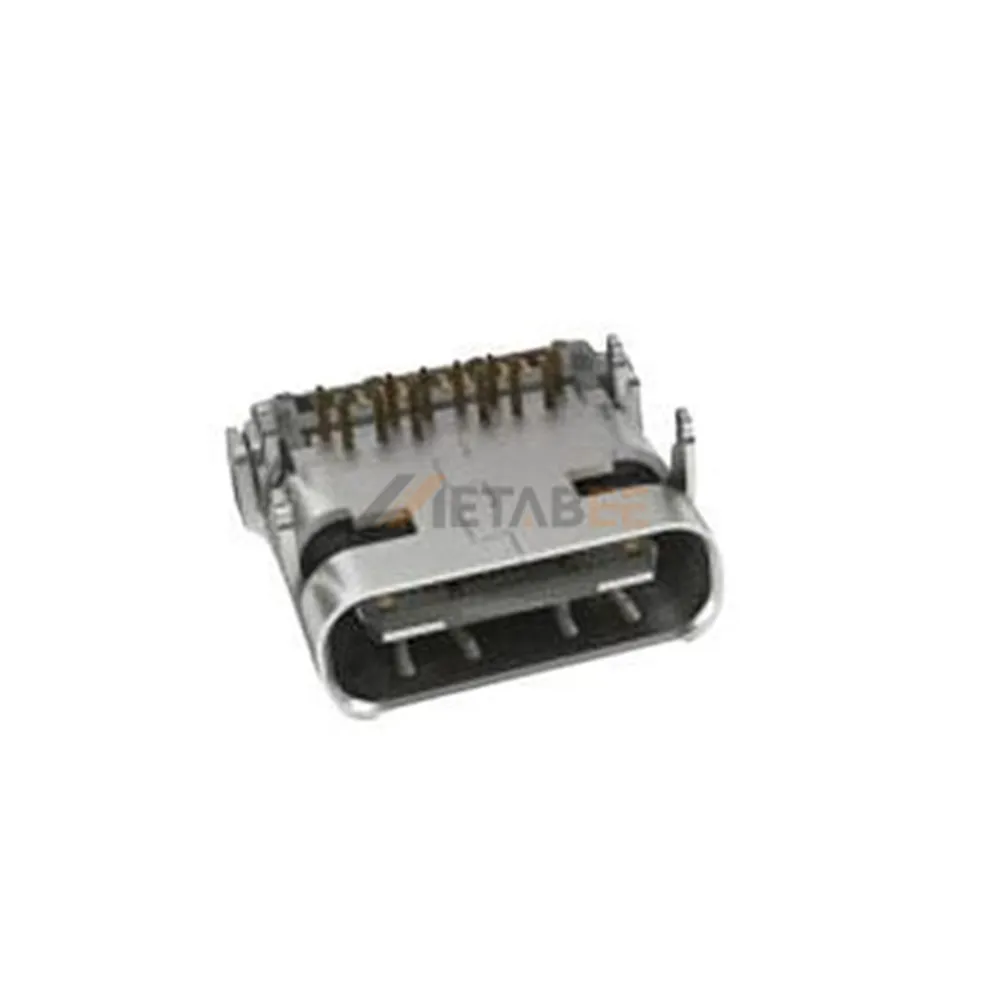

USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, PCB Mount, Vertical, Waterproof
Introduction:
The USB 2.0 Type-C is a high-reliability, single-port, 24-pin connector engineered for stable data and power transmission in compact electronic assemblies. Supporting data rates up to 480 Mbps, this connector ensures dependable USB 2.0 performance across consumer, industrial, and embedded applications. The vertical PCB mount configuration enables efficient space utilization and optimized board layout flexibility.
Constructed with a stainless steel shell featuring nickel plating, the connector delivers superior mechanical strength and corrosion resistance. Copper alloy contacts with gold plating ensure low contact resistance, enhanced conductivity, and extended mating cycles. Rated for 1.25A and 5A current options with a 20V voltage rating, this receptacle supports reliable power delivery while maintaining signal integrity. The housing meets UL94V-0 flame-retardant standards and operates within a wide temperature range of –40°C to +85°C, making it suitable for demanding environments. Its waterproof design enhances durability in moisture-prone applications.
Key Features
- USB 2.0 Type-C Receptacle, 24-pin, single port
- Data transfer rate up to 480 Mbps
- Vertical PCB mount configuration
- Stainless steel shell, nickel-plated
- Gold-plated copper alloy contacts
- 20V rated voltage, 1.25A/5A current, UL94V-0, –40°C to +85°C operating range
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-VT-CS51-TSMT-WP-BK-PP-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin (16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 5A | |
| Rated Voltage: | 20V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
