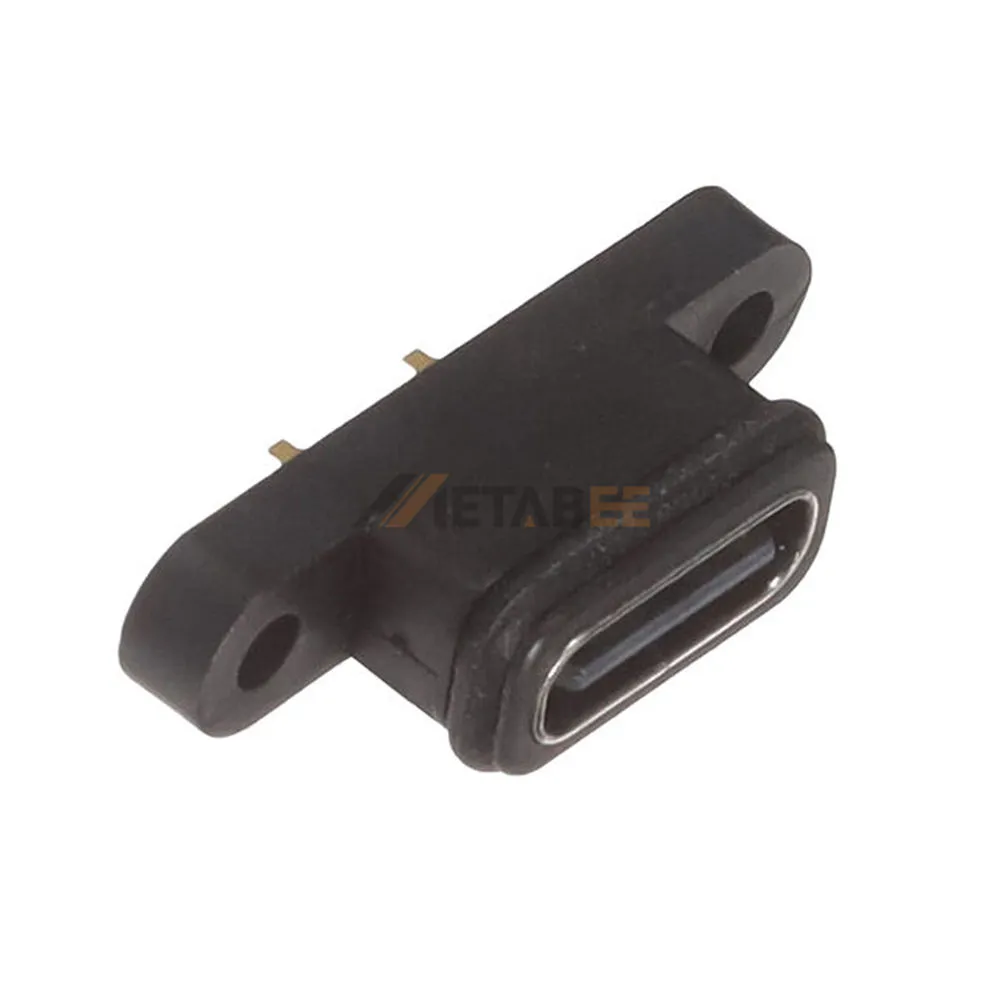

USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, Vertical, Waterproof
Introduction:
Engineered for superior reliability in demanding environments, this Waterproof USB 2.0 Type-C Receptacle provides a robust solution for high-density PCB designs. Its vertical mounting configuration is specifically designed to save board real estate while offering easy access for cable integration. With a full 24-pin architecture, it supports high-speed data transfer rates of up to 480 Mbps, ensuring seamless performance for professional-grade peripherals and specialized industrial hardware.
The connector is constructed with a high-strength nickel-plated stainless steel shell, offering excellent EMI/RFI shielding and corrosion resistance. To ensure maximum signal integrity, the copper alloy contacts are finished with gold plating, preventing oxidation over thousands of mating cycles. Rated for a 3A current and meeting the UL94V-0 flame retardancy standard, this component is built to survive harsh conditions, maintaining stable performance within a wide temperature range of -40°C to 85°C.
Key Features
- Vertical Orientation: Upright PCB mount design optimizes board space and accessibility.
- Waterproof Integrity: Precision-engineered seal protects internal circuitry from moisture and dust.
- High-Speed Data: Fully compatible with USB 2.0 protocols for rates up to 480 Mbps.
- Superior Conductivity: Gold-plated copper alloy contacts support a reliable 3A current.
- Rugged Construction: Nickel-plated stainless steel shell for maximum mechanical durability.
- Industrial Grade: UL94V-0 rated with a broad -40°C to 85°C thermal operating range.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-VT-CS15-WP-BK | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin (4+20 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
