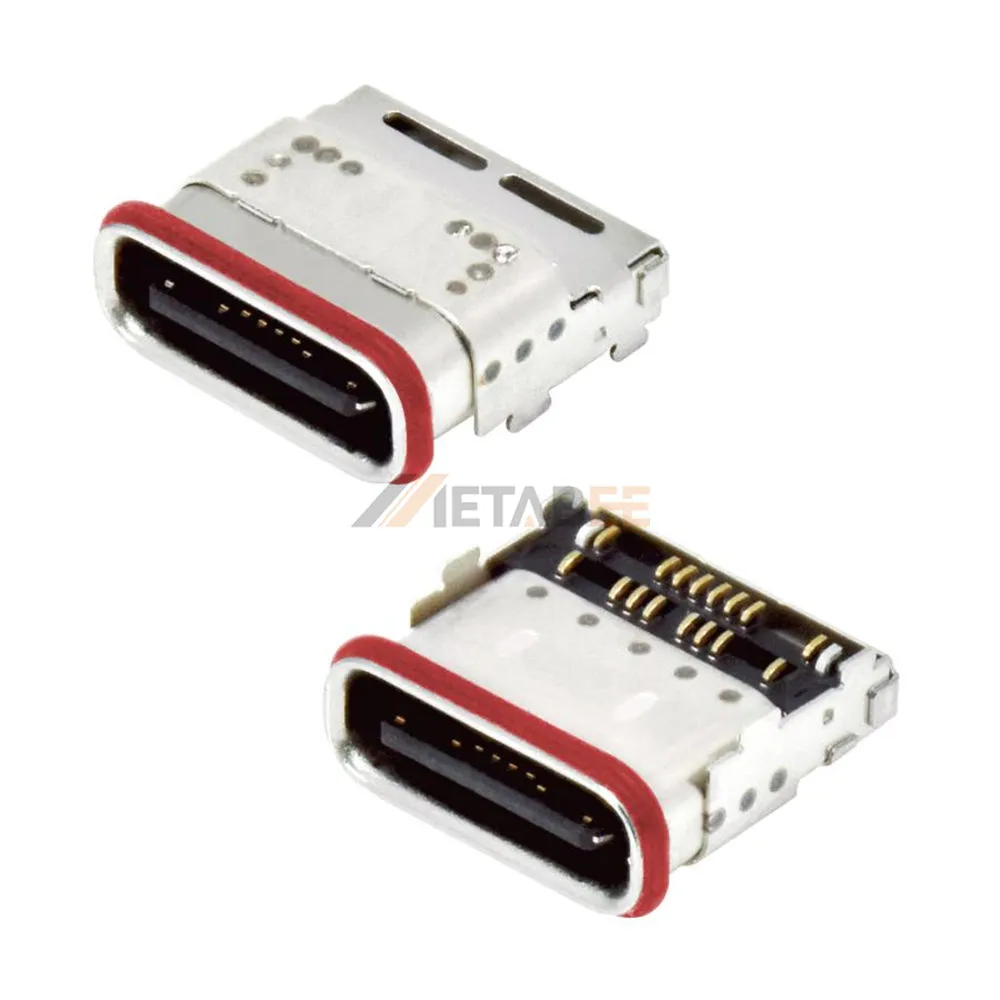

USB-C 2.0 Female Connector, 24 Pin, 480 Mbps, PCB Surface Mount, R/A, Waterproof
Introduction:
USB-C 2.0 is designed for reliable data transmission and high-current power delivery in compact electronic systems. Featuring a single-port Type-C interface with a full 24-pin configuration, this receptacle supports data rates up to 480 Mbps in compliance with USB 2.0 standards. The right-angle PCB surface-mount design optimizes board space and ensures secure mechanical retention in space-constrained applications.
The connector is constructed with a stainless steel shell and nickel-plated finish, providing excellent structural strength, corrosion resistance, and effective EMI shielding. Copper alloy contacts with gold plating deliver low contact resistance, enhanced conductivity, and long mating durability. With a rated current of up to 5A, this USB-C female connector supports higher power requirements for modern devices while maintaining stable electrical performance.
Engineered for demanding environments, the waterproof structure enhances protection against moisture and contaminants. The connector complies with UL94V-0 flame-retardant standards and operates reliably within a temperature range of -40°C to +85°C, making it suitable for industrial electronics, embedded systems, and rugged consumer devices.
Key Features
- USB-C 2.0 female receptacle, single-port design
- 24-pin configuration supporting 480 Mbps data rate
- Right-angle PCB surface-mount installation
- Stainless steel shell with nickel plating
- Gold-plated copper alloy contacts for reliable conductivity
- Rated 5A, waterproof, UL94V-0, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS67-SMT-WP-BK-30-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
