Introduction:

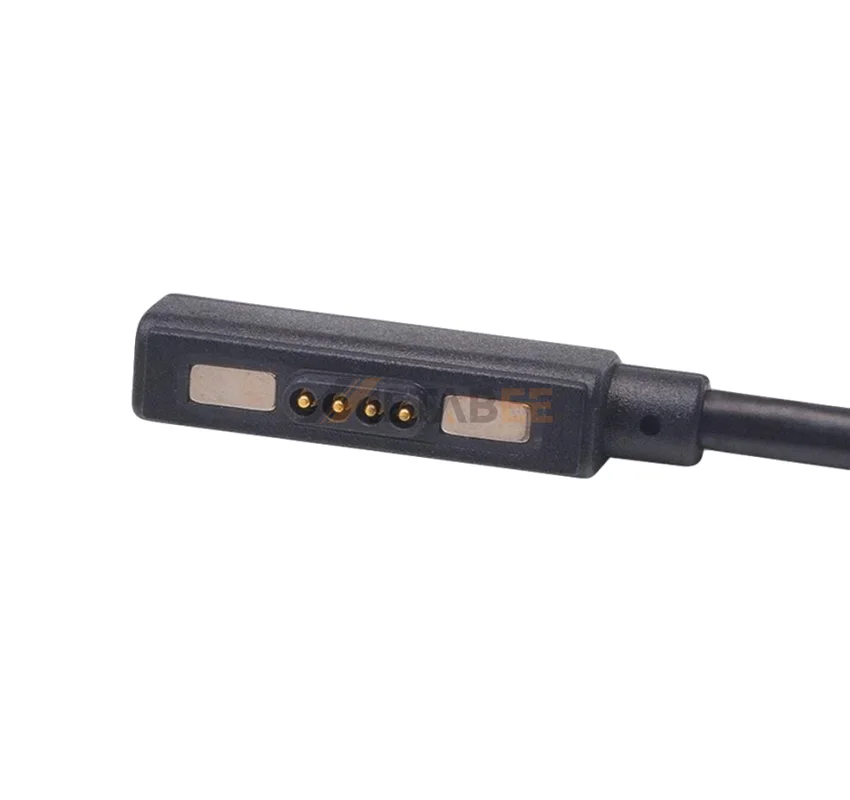

This usb pogo pin cable is a 1-meter power assembly designed with a USB-A male connector and a 4 pin rectangular pogo interface. It features a right angle orientation on a 1.8mm pitch, allowing for low-profile connections in compact device housings. The brass contacts are finished with a 5u” gold plating to achieve an ultra-low resistance of 3 mohms, ensuring highly efficient power transmission at 2A and 12V DC. With a 10,000-cycle mechanical life and a flexible PVC jacket, this cable provides a durable charging link for smart wearables, handheld terminals, and specialized industrial hardware.
Key Features
- High Efficiency: Supports 2A current flow for 12V DC power.
- Ultra-Low Resistance: Gold-plated contacts maintain maximum 3 mohms resistance.
- Space Saving: Right angle rectangular 4 pin connector optimizes layouts.
- Durable Life: Tested for 10,000 cycles ensuring long mechanical reliability.
- Flexible Reach: 1000mm PVC cable provides reliable device connection distance.
Main Specifications:
General Information:
| Product No.: | CA-RA4-PH1-1888-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 4 | |
| Connector 2-Shape: | Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | Brass | |
| Contact Plating: | 5u” Gold plated over Nickel | |
| Cable Type: | Round Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1000±30 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 2A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 3 mohms max | |
| Insulation Resistance: | 10 Mohms min | |
| Dielectric Withstanding Voltage: | N/A |
Mechanical:
| Contact Force: | 60gf max | |
| Working Stroke: | 0.8mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
