Introduction:
This is a 5 pin pogo pin interface flat cable designed for efficient 12V DC charging and signal transmission. It features a rounded rectangular terminal with a right angle orientation to optimize space in compact device housings. The brass contacts utilize 3u” Gold plating over nickel to ensure lasting conductivity and a low 30 mohms resistance. Its 1200mm flat cable design significantly reduces tangling while providing a flexible reach for the user. This cable assembly serves as a dependable power interface for smart wearable devices, medical hardware, and specialized electronic equipment.
Key Features
- Space Saving: Right angle design optimizes space in compact electronic housings.
- Flat Cable: Flexible 1200mm flat cable prevents tangling in tight spaces.
- Power Link: Supports 1.5A max current and 12V DC power delivery.
- Gold Plated: Gold plated brass contacts ensure reliable electrical stability.
- Secure Interface: 5 pin rounded rectangular head for stable device connectivity.
Main Specifications:
General Information:

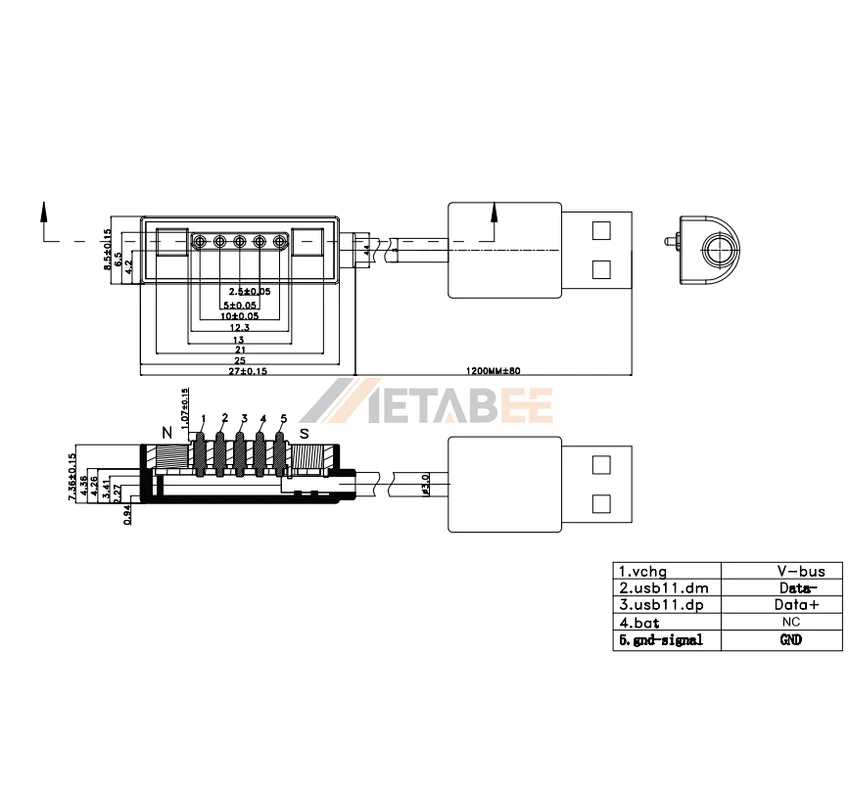

| Product No.: | CA-RA5-PH1-25736-M | |
| Product Type: | Magnetic Cable Assemblies | |
| Connector 1: | USB Type-A Male | |
| Connector 2: | Male Pogo Pin Connector | |
| Pin Count: | 5 | |
| Connector 2-Shape: | Rectangular | |
| Connector 2-Orientation: | Right Angle | |
| Contact Material: | Brass | |
| Contact Plating: | 3u” Gold plated over Nickel | |
| Cable Type: | Flat Cable | |
| Wire Gauge: | N/A | |
| Cable Length: | 1200±80 mm | |
| Jacket Material & Color: | N/A |
Electrical:
| Rated Current: | 1.5A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric Withstanding Voltage: | 100 VRMS |
Mechanical:
| Contact Force: | 40gf±20g | |
| Working Stroke: | 0.6mm | |
| Full Stroke: | N/A | |
| Durability: | 10,000 cycles min |
Environmental:
| Operating Temperature: | -30°C to +80°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
Pogo pin magnetic cable assemblies combine magnetic alignment with spring-loaded contacts to provide fast, reliable connections for power and signal transmission. Their self-aligning design supports easy mating, repeated connection cycles, and stable electrical performance in compact electronic devices.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
