USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, R/A
Introduction:
Engineered for precision and high-speed reliability, this USB 2.0 Type-C Receptacle is the ideal solution for modern PCB connectivity. Featuring a comprehensive 24-pin architecture, it supports seamless data transfer rates up to 480 Mbps. The Right Angle (R/A) mounting orientation is specifically designed to optimize board space and reduce vertical profile, making it a perfect fit for compact consumer electronics and streamlined industrial hardware.
Durability is at the core of this connector’s design. It features a robust nickel-plated stainless steel shell for superior corrosion resistance and mechanical strength. Internally, high-grade copper alloy contacts with gold plating ensure low contact resistance and maximum signal integrity over thousands of cycles. Capable of handling current loads from 0.25A to 5A at 5VAC/DC, this component operates reliably across a wide temperature range of -40°C to 85°C and meets UL94V-0 flame retardancy standards for maximum safety.
Key Features
- High-Speed Throughput: Supports stable USB 2.0 data transfer rates up to 480 Mbps.
- Space-Efficient Design: Right-angle orientation for low-profile PCB integration.
- Superior Current Handling: Versatile power support ranging from 0.25A to 5A.
- Premium Construction: Nickel-plated stainless steel shell for enhanced EMI shielding.
- Reliable Connectivity: Gold-plated copper alloy contacts prevent oxidation and wear.
- Industrial Grade Safety: UL94V-0 rated with a wide -40°C to 85°C thermal range.

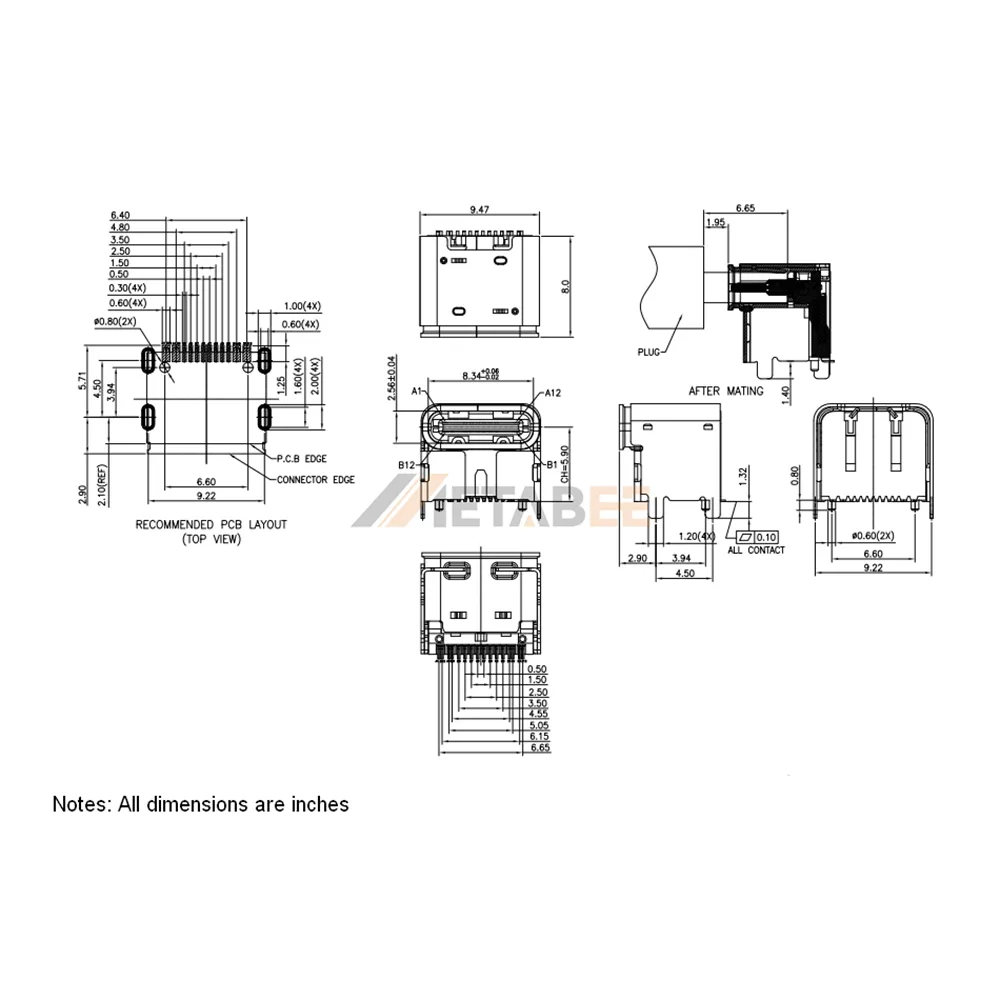

Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS6-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | – | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.25A, 1.25A, 5A | |
| Rated Voltage: | 5V AC/DC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
