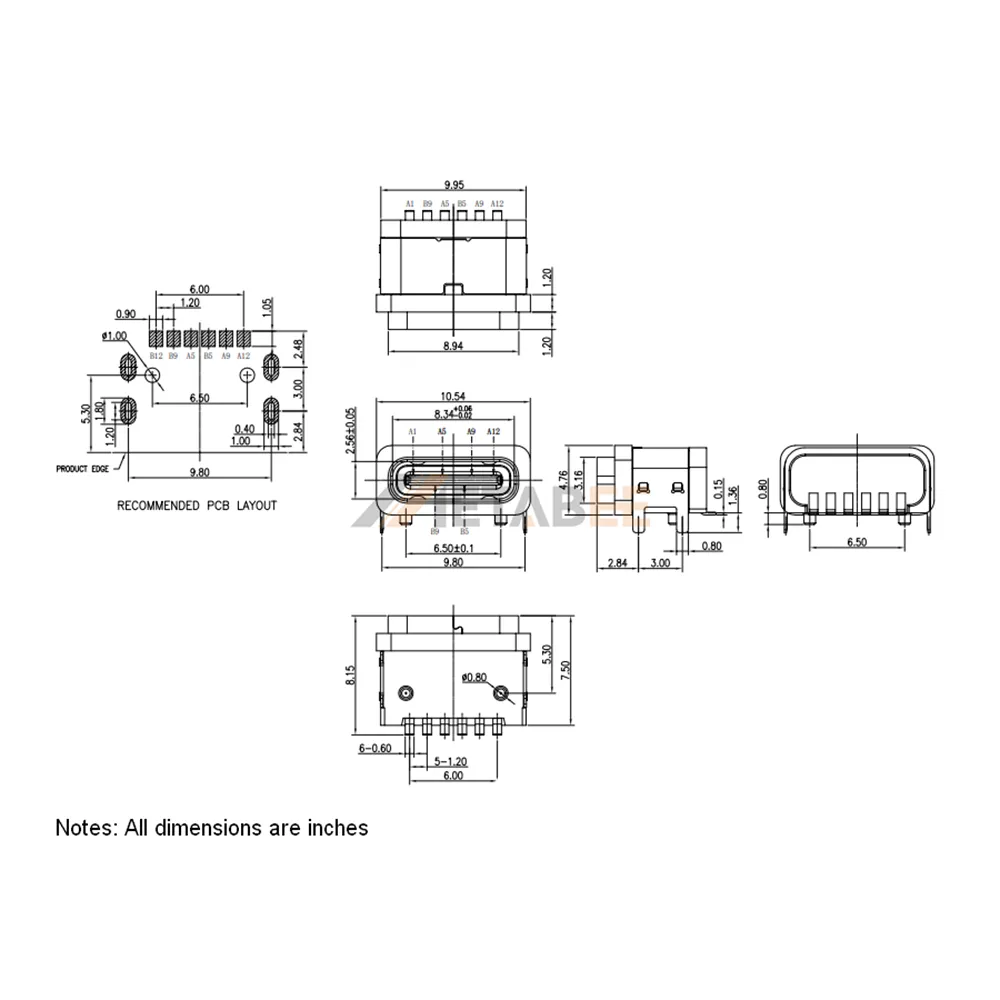

USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, PCB Mount, SMT, R/A, Waterproof
Introduction:
USB 2.0 Type C is engineered for reliable data transmission and stable power delivery in compact electronic designs. Featuring a single-port USB Type-C interface with a 24-pin configuration, this connector supports data transfer rates up to 480 Mbps in compliance with USB 2.0 standards. The right-angle PCB surface-mount design enables efficient board layout, optimized space utilization, and secure mechanical retention in high-density assemblies.
Constructed with a stainless steel shell and nickel-plated finish, the connector offers excellent corrosion resistance and EMI shielding performance. Copper alloy contacts with gold plating ensure low contact resistance, enhanced conductivity, and long mating life. Rated for 3A current and 30V voltage, this Type-C receptacle delivers dependable electrical performance for consumer electronics, industrial controls, embedded systems, and portable devices.
Designed for durability in demanding environments, the connector features a waterproof structure, complies with UL94V-0 flame-retardant standards, and operates within a wide temperature range from -40°C to +85°C. It provides a robust and cost-effective interconnect solution for USB 2.0 applications requiring mechanical strength and environmental protection.
Key Features
- USB 2.0 Type-C receptacle, single-port design
- 24-pin configuration supporting 480 Mbps data rate
- Right-angle PCB SMT mounting
- Stainless steel shell with nickel plating
- Gold-plated copper alloy contacts
- Rated 3A, 30V, waterproof, UL94V-0, operating temperature -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS22B-SMT-WP-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(6+18 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 30V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
