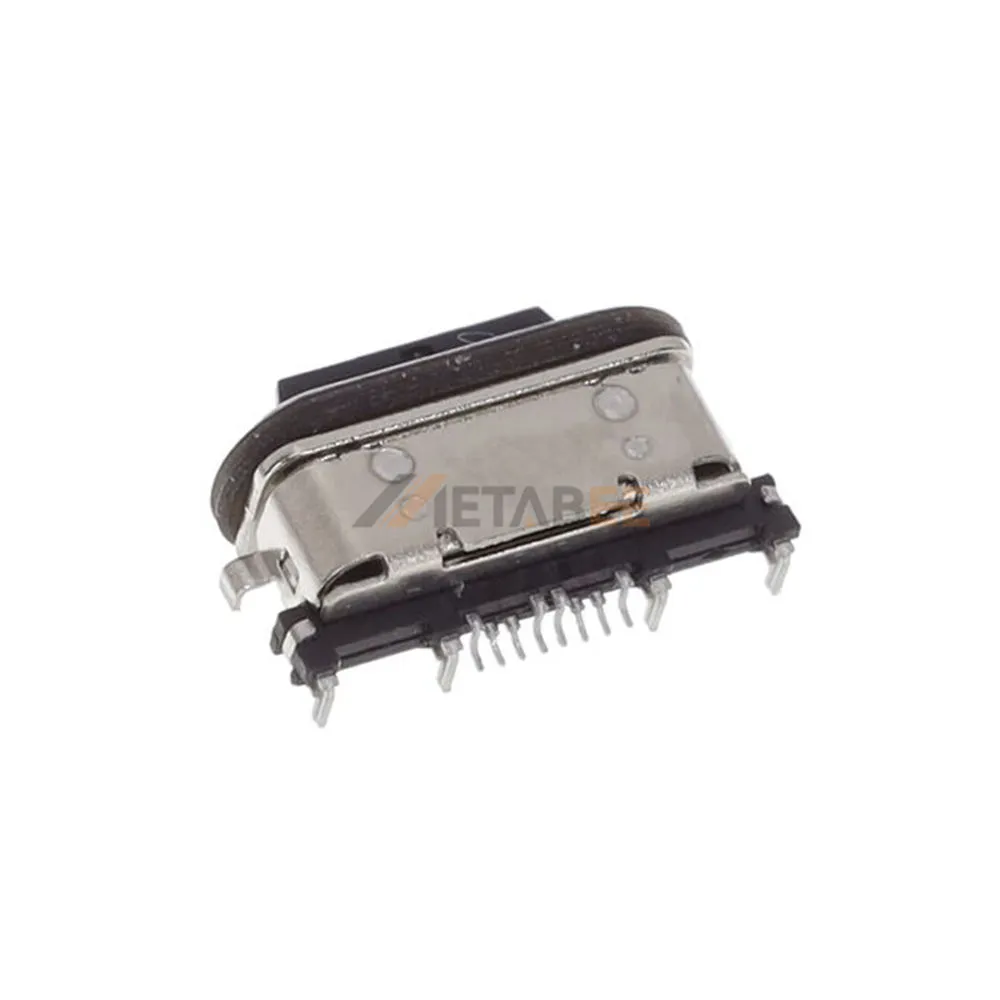

USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps, Edge Mount, R/A, Waterproof
Introduction:
Engineered for rugged environments and high-density PCB layouts, this Waterproof USB 2.0 Type-C Receptacle offers a superior blend of durability and high-speed performance. Featuring a 24-pin configuration, it supports seamless data transfer at 480 Mbps. The Right Angle (R/A) Edge Mount design is specifically tailored to minimize vertical height on the PCB, making it an ideal choice for slim portable devices, industrial handhelds, and outdoor electronic equipment.
Constructed with a premium nickel-plated stainless steel shell, this connector provides exceptional mechanical strength and EMI shielding. The internal copper alloy contacts are finished with gold plating to ensure low contact resistance and stable power delivery up to 5A. Designed to withstand harsh conditions, it maintains operational integrity within a temperature range of -40°C to 85°C and carries a UL94V-0 flame retardancy rating, providing maximum safety and reliability for critical applications.
Key Features
- High-Speed Transfer: Fully optimized for USB 2.0 protocols with speeds up to 480 Mbps.
- Waterproof Protection: Precision-engineered seal suitable for moisture-prone environments.
- Edge Mount Design: Right-angle orientation reduces PCB footprint and profile height.
- High Power Support: Capable of handling up to 5A current for rapid charging.
- Premium Plating: Gold-plated copper alloy contacts prevent oxidation and signal loss.
- Industrial Resilience: Wide operating range (-40°C to 85°C) with UL94V-0 fire safety.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS50-EH-WP-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
