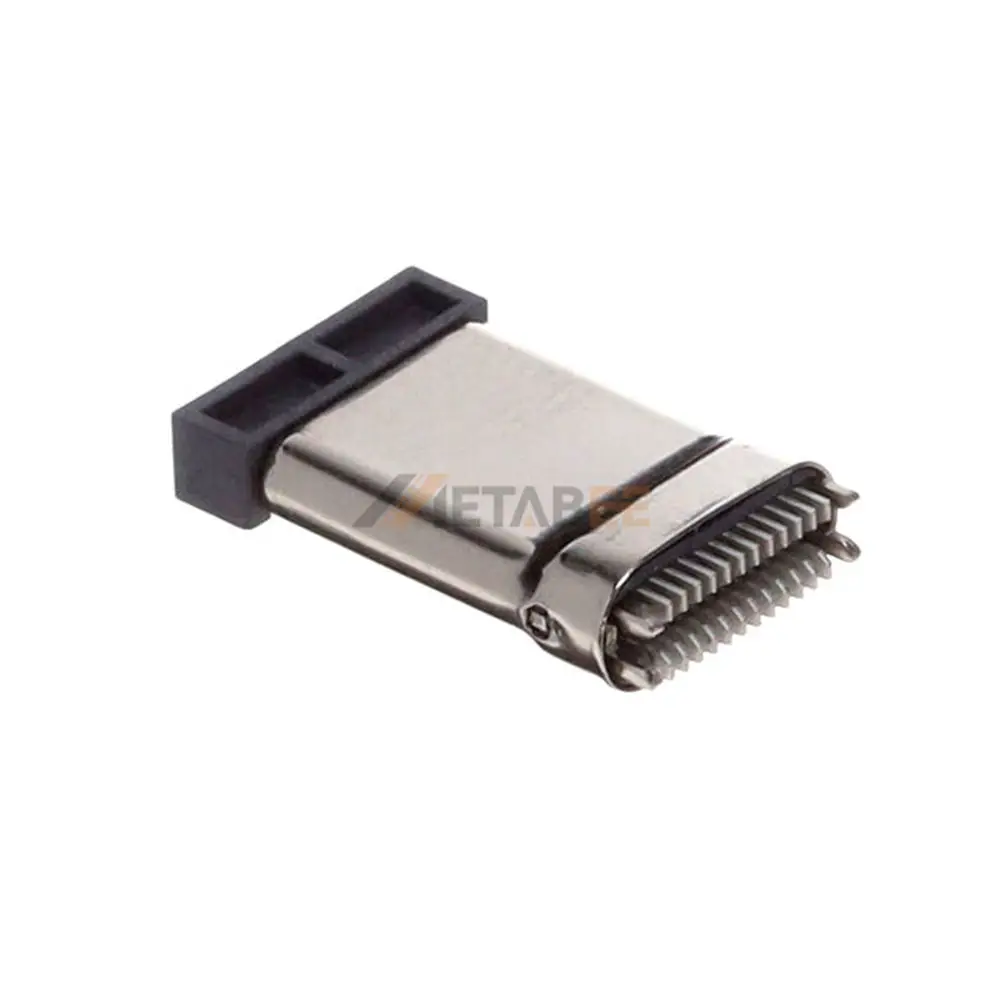

USB 2.0 Type C Male Plug Connector, 24 Pin, 480 Mbps, PCB Mount
Introduction:
Engineered for precision and durability, this USB 2.0 Type-C is the ideal solution for high-density PCB applications. Featuring a robust 24-pin configuration and supporting data transfer speeds up to 480 Mbps, it ensures seamless connectivity and signal integrity. Its vertical integration and SMT design allow for streamlined assembly in complex electronic architectures.
The connector is built to withstand rigorous industrial environments, utilizing a stainless steel shell with nickel plating for superior corrosion resistance. Internally, high-grade copper alloy contacts with gold plating optimize electrical conductivity while preventing oxidation. With a wide operating temperature range of -20°C to 105°C and a UL94V-0 flame retardancy rating, this component guarantees safety and reliability for critical hardware.
Key Features
- High-Speed Data Transfer: Supports USB 2.0 with speeds up to 480 Mbps.
- Reversible Type-C Interface: Ensures easy and correct plug-in every time.
- Durable Construction: Stainless steel shell with nickel plating for enhanced protection.
- Optimal Conductivity: Gold-plated copper alloy contacts for reliable signal integrity.
- Space-Saving Design: Right-angle PCB mount for versatile integration.
- Robust Environmental Performance: Operates from -20°C to 105°C with UL94V-0 flame rating.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-PLUG-R-BK-HT-PP | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | – | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | – | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 1.25A, 10A | |
| Rated Voltage: | – |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Male Plug Connector, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
