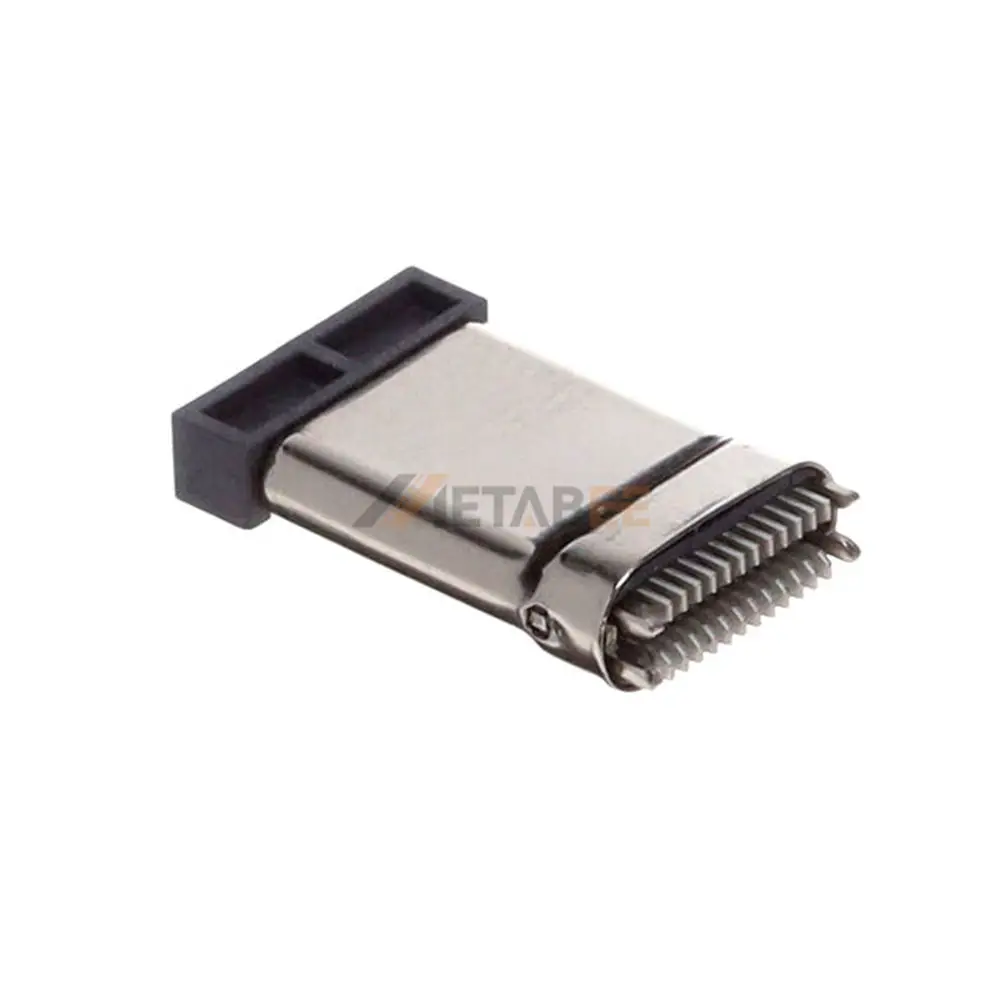

USB 2.0 Type C Male Plug, 24 Pin, 480 Mbps, PCB Mount, SMT, Vertical
Introduction:
This USB 2.0 Type C Male Plug redefines connectivity for contemporary electronic designs, engineered for reliable 480 Mbps data transfer speeds. Featuring a 24-pin configuration within a single-port Type-C interface, this connector is meticulously crafted for seamless integration onto printed circuit boards. Its SMT (Surface Mount Technology) and right-angle mounting orientation provide critical flexibility for space-constrained applications, ensuring efficient board layout without compromising performance.
Constructed for maximum durability and electrical integrity, the connector features a robust stainless steel shell complemented by nickel plating, offering superior resistance to environmental factors and mechanical stress. The contacts, fabricated from high-grade copper alloy and finished with gold plating, guarantee optimal conductivity and signal integrity across a wide operational spectrum. With electrical ratings of 5A current and 20V/DC voltage, alongside a UL94V-0 flammability rating, this component meets stringent safety and performance standards. Designed to operate flawlessly within a temperature range of -20°C to 105°C, it is an ideal solution for demanding industrial and consumer electronics.
Key Features
- High-Speed Data Transfer: Supports USB 2.0 at 480 Mbps for efficient data exchange.
- Robust Material Construction: Features a nickel-plated stainless steel shell and gold-plated copper alloy contacts for enhanced durability and conductivity.
- Optimized Electrical Performance: Rated for 5A current and 20V/DC, ensuring reliable power delivery.
- Space-Saving Design: SMT, PCB mount, and right-angle orientation facilitate compact board layouts.
- Wide Operating Range: Functions reliably in temperatures from -20°C to 105°C with a UL94V-0 flammability rating.
- Universal Type-C Interface: A 24-pin male plug ensures broad compatibility with Type-C receptacles.
Main Specifications:
General Information:
| Product No.: | YC-USB-C20-PLUG-J-SMT-DC-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Plug | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | Waterproof |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 30V/DC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Male Plug, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
Factory pricing and exceptional product quality. Get a free quote now!
