USB 2.0 Type C Connector, Receptacle, 24 Pin, 480 Mbps, PCB, SMT, R/A, Waterproof
Introduction:
USB 2.0 Type C is designed for reliable connectivity in compact and rugged electronic systems. Featuring a single-port USB Type-C interface with a full 24-pin configuration, this receptacle supports data transmission speeds up to 480 Mbps in compliance with USB 2.0 standards. The right-angle PCB surface-mount design enables efficient board layout and secure mechanical attachment, making it suitable for space-constrained applications.
The connector housing is manufactured from stainless steel with a nickel-plated finish, providing enhanced durability, corrosion resistance, and effective EMI shielding. Brass contacts with gold plating ensure stable electrical conductivity, low contact resistance, and extended mating life. Rated for 3A current and 30VAC voltage, this Type-C receptacle delivers dependable power and signal performance for consumer electronics, industrial devices, and embedded systems.
Engineered for harsh environments, the connector features a waterproof structure, meets UL94V-0 flame-retardant standards, and operates reliably within a temperature range of -40°C to +85°C. It is a robust and cost-effective solution for USB 2.0 applications requiring environmental protection and mechanical strength.
Key Features
- USB 2.0 Type-C receptacle, single-port configuration
- 24-pin interface supporting up to 480 Mbps
- Right-angle PCB SMT mounting design
- Stainless steel shell with nickel plating
- Gold-plated brass contacts for stable conductivity
- Rated 3A, 30VAC, waterproof, UL94V-0, operating temperature -40°C to +85°C

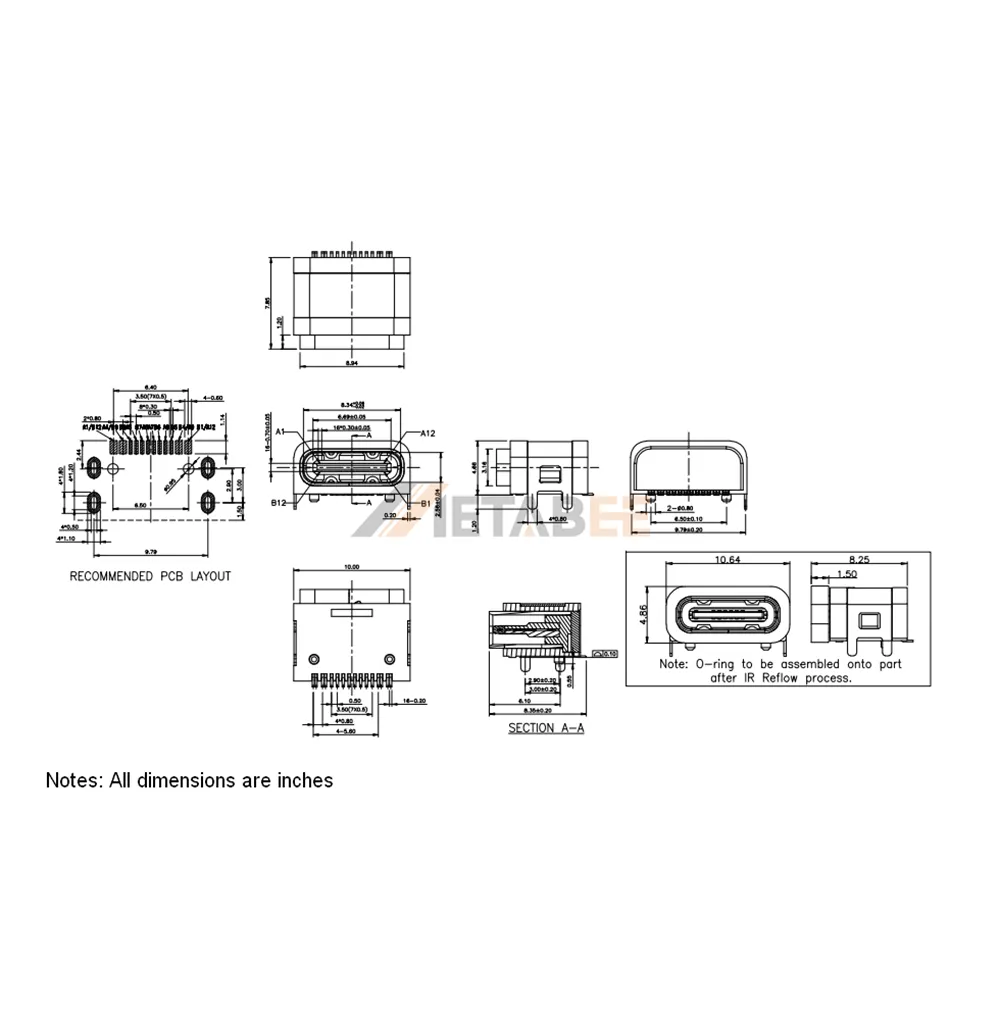

Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS22F-SMT-WP-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(16+8 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Connector, Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
