USB 2.0 Type C Connector, Receptacle, 24 Pin, 480 Mbps, PCB Surface Mount, R/A
Introduction:
Engineered for precision and reliability, this USB 2.0 Type-C Female Receptacle is the definitive choice for high-speed data transmission in compact PCB designs. Featuring a 24-pin architecture, it supports a steady throughput of 480 Mbps, ensuring seamless compatibility with legacy and modern USB protocols. The Right Angle (R/A) mounting orientation is specifically designed to optimize space on surface-mount (SMT) assemblies, providing a low-profile yet mechanically robust interface for your hardware.
The connector is constructed with a high-strength nickel-plated stainless steel shell, offering exceptional EMI/RFI shielding and structural integrity. Internally, the gold-plated copper alloy contacts ensure superior electrical conductivity and resistance to oxidation over thousands of mating cycles. With a current rating of 3A and a voltage capacity of 30VAC, this component is built to thrive in demanding conditions, maintaining stable performance within a temperature range of -40°C to 85°C while adhering to the UL94V-0 flame retardancy standard.
Key Features
- Optimized Data Rates: Delivers reliable USB 2.0 performance up to 480 Mbps.
- Space-Saving Design: Right-angle PCB Surface Mount for efficient board layout.
- Industrial Durability: Nickel-plated stainless steel shell prevents corrosion and wear.
- Enhanced Conductivity: Gold-plated copper alloy contacts support a 3A current rating.
- Thermal Versatility: Reliable operation across extreme temperatures (-40°C to 85°C).
- Certified Safety: UL94V-0 rated housing ensures maximum fire and heat resistance

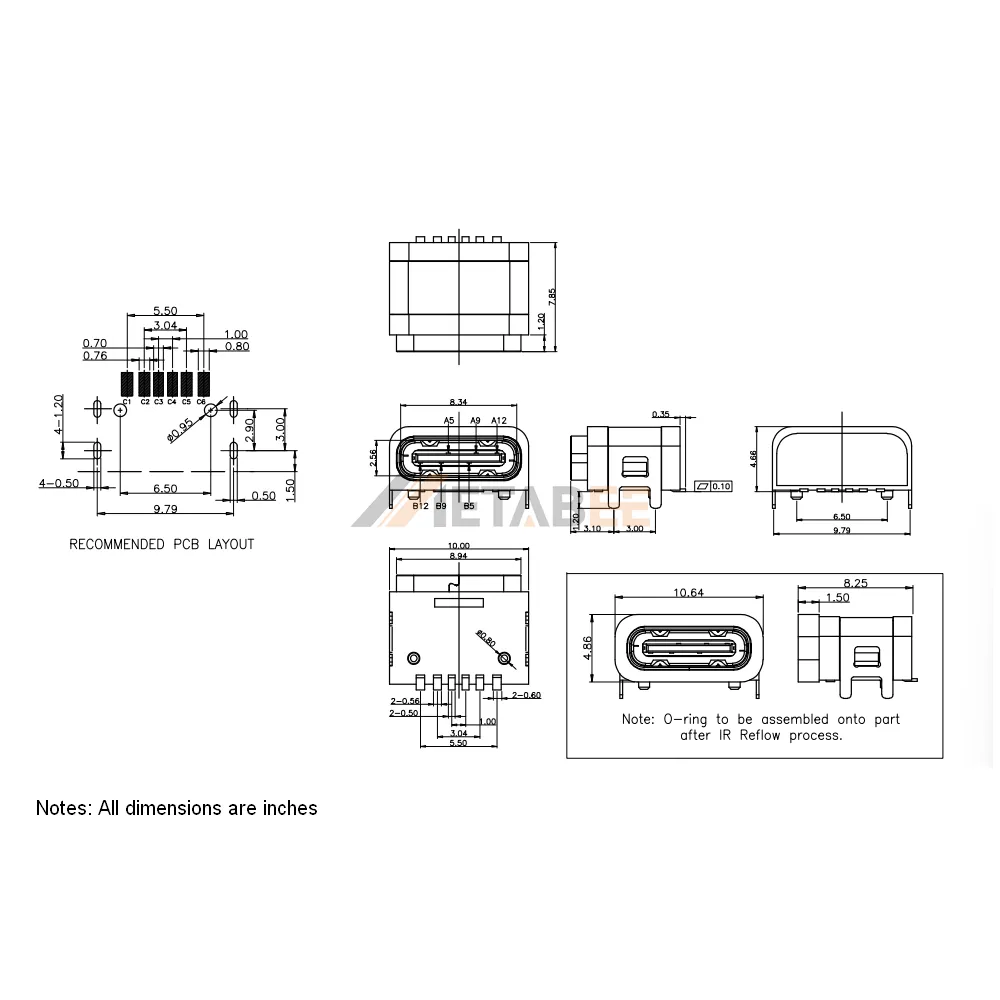

Main Specifications:
General Information:
| Product No.: | YC-USB-C20-S-RA-CS22E-SMT-WP-BK-TR | |
| Connector Series: | USB 2.0 Connectors | |
| Interface Type: | Type-C | |
| Brand: | Metabee | |
| Number of Contacts: | 24 Pin(6+18 Dummy) | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Right angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Shielding: | Shielded | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Stainless Steel | |
| Shell plating: | Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold plated | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 3A | |
| Rated Voltage: | 30VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -40℃ to +85℃ |
Applications of this USB 2.0 Type C Connector, Receptacle, 24 Pin, 480 Mbps:
USB 4.0 connectors are versatile interfaces that support both power delivery and data communication across consumer, industrial, and professional devices. Their standardization and plug-and-play nature make them one of the most ubiquitous connections in modern electronics.
Here are some key applications:
- Data Transfer
- Charging Mobile Devices
- External Storage Connection
- Audio/video Peripherals
- Gaming Equipment Interfaces
- Networking Adapters
- Automotive Systems
- Medical and Healthcare Equipment
