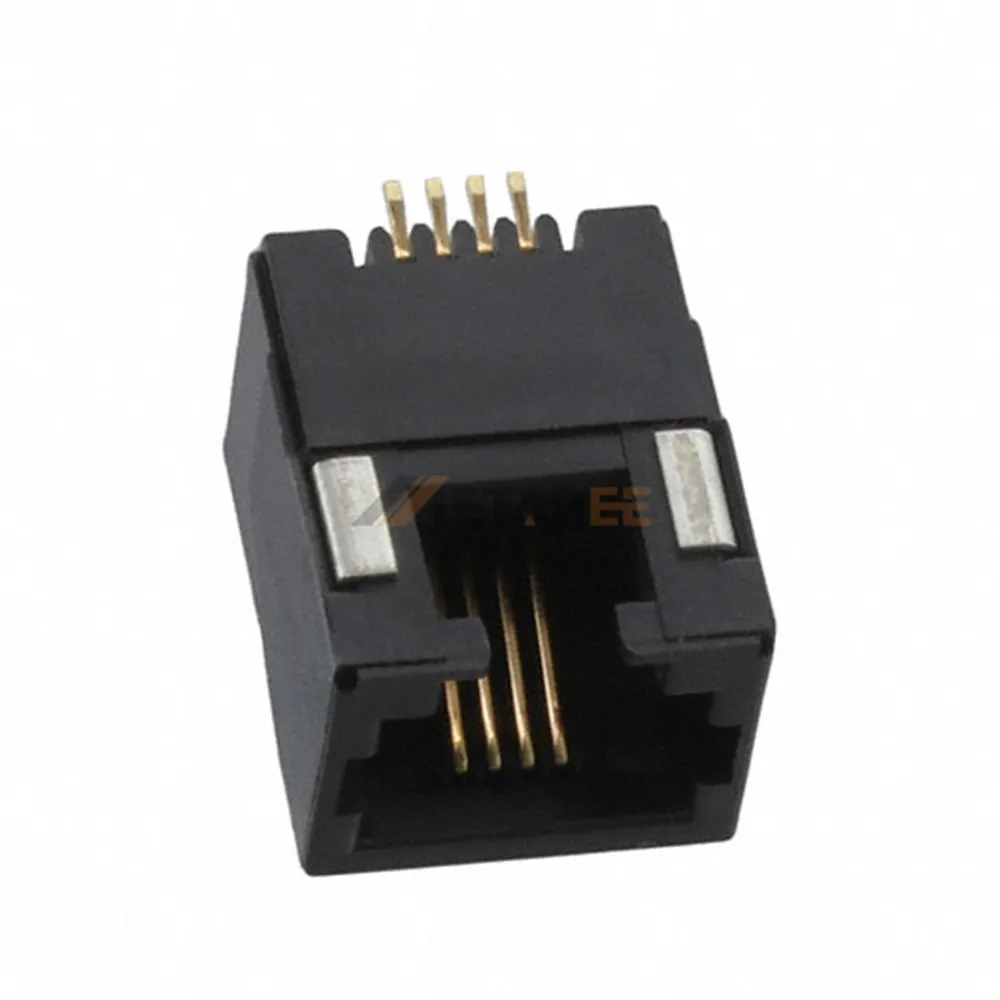

Unshielded RJ11 6P4C Surface Mount Connector, Single Port, Right Angle, Tab-Down, No LED
Introduction:
This is a single port unshielded RJ11 connector 6P4C designed for stable surface mount attachment to modern networking boards. It features a Hi-temp Nylon housing that is specifically engineered to survive intense reflow soldering processes without any structural warping. The Phosphor Bronze contacts include a premium Gold over Nickel finish to ensure high conductivity and a consistent 1.5A current rating for stable data transmission. Utilizing a Tab-Down right angle configuration, the component effectively saves vertical space while providing high dielectric withstanding voltage. Technicians utilize this modular interface for modern telecommunication devices and compact networking hardware requiring secure SMT connectivity.
Key Features
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Hi-Temp Housing: Withstands intense heat during industrial reflow soldering.
- Tab-Down Configuration: Optimizes vertical space for specialized board layouts.
- 6P4C RJ11 Interface: Provides standard modular links for voice networking.
Main Specifications:
General Information:
| Product No.: | MTJ-64WAX1, MTJ-64WBX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic / Hi-temp Nylon | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
